Darveen TVP-110 vehicle computer for railway applications

drv_tvp-110a
drv_tvp-110adrv_tvp-110bdrv_tvp-110ddrv_tvp-110edrv_tvp-110c
Contact us for more information

Features

  • Intel® Celeron J1900 CPU (2M Cache, 2.00 GHz)
  • 10.4″ industrial-grade projective multi-touch capacitive screen
  • M12 interface connectors
  • IP65-rated front panel and fanless design
  • -40 ~ 70 °C temperature range
  • 24/48/72/110VDC (±40%) power input
  • Keyboard layout compliant with UIC 612-01
  • Optional expansion for WiFi, Bluetooth, LTE, GPS, CAN

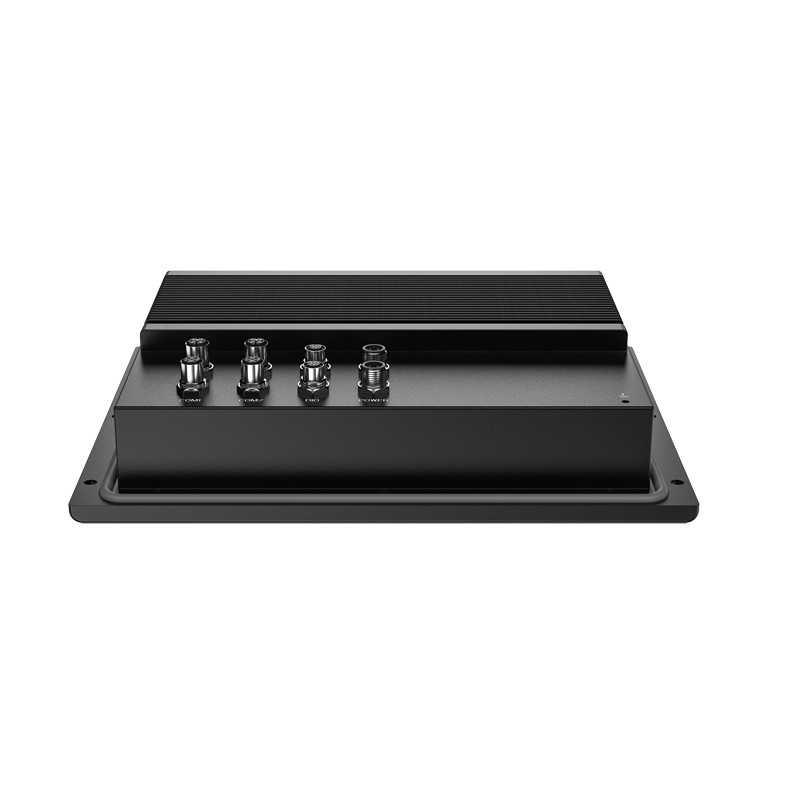

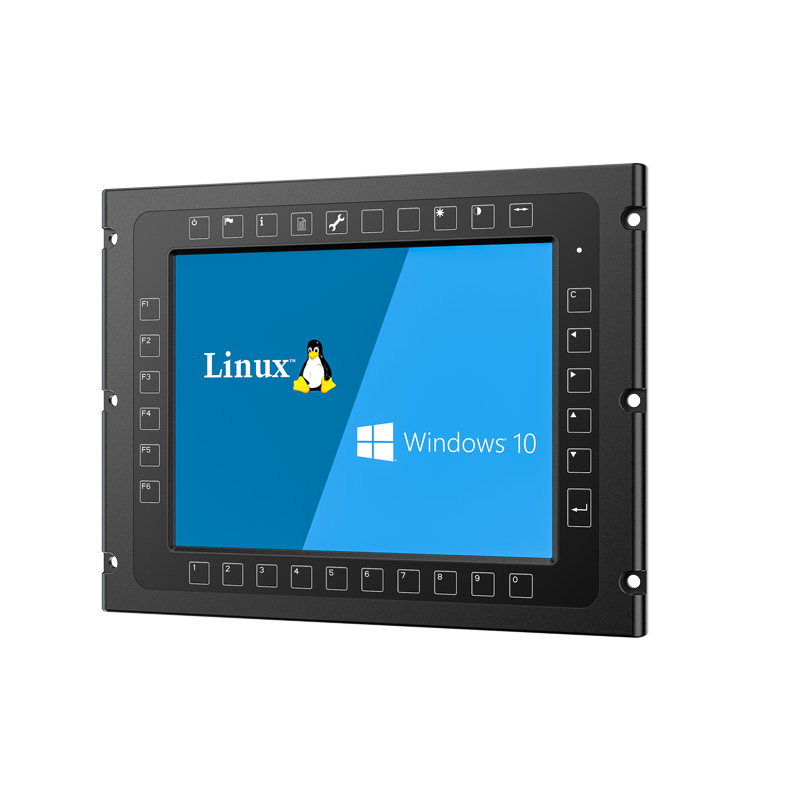

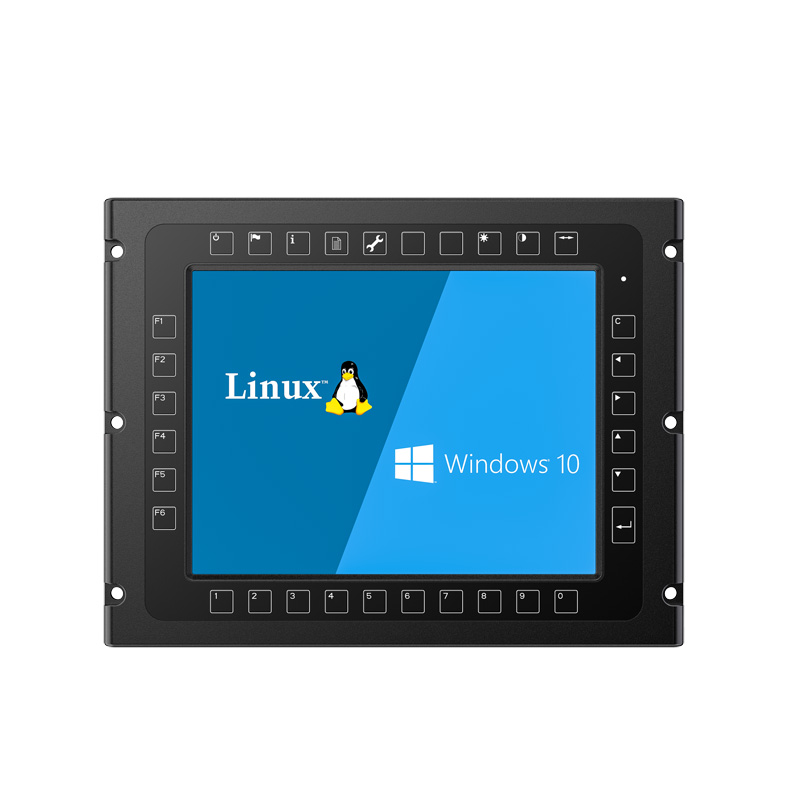

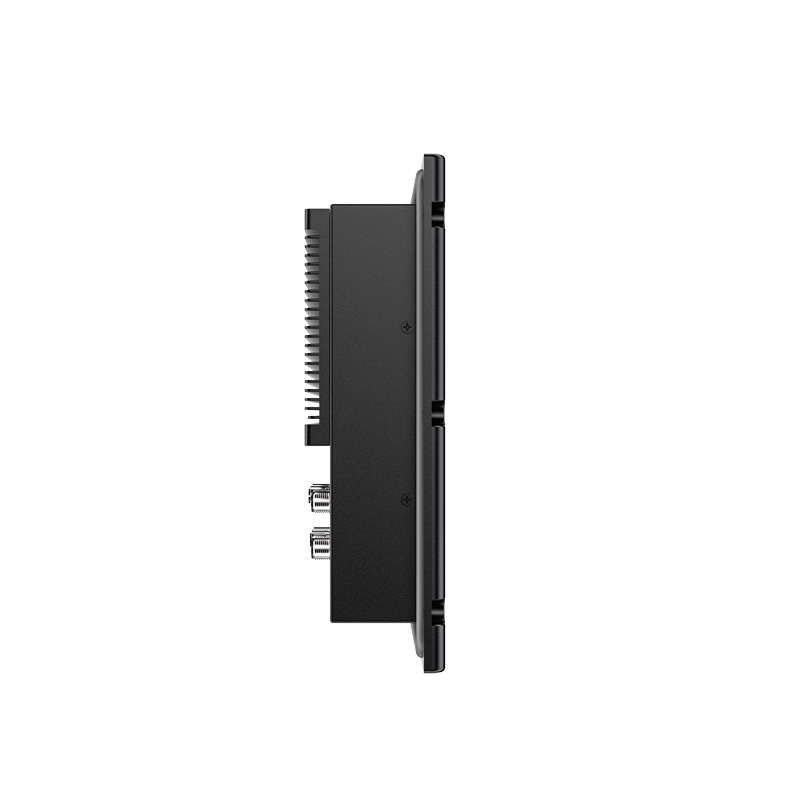

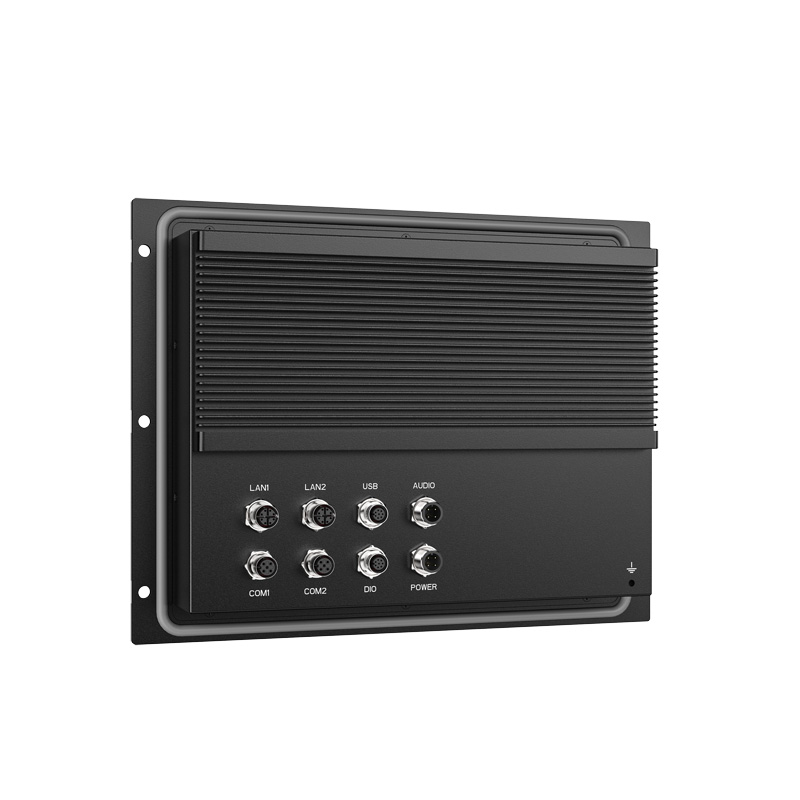

Darveen’s TVP-110 vehicle computer for railway electrification is a fanless human-machine interface (HMI) equipped with a 10.4-inch display with a projective capacitive touchscreen aimed at railway applications. The panel’s small flat design saves space for easy installation in driver cabins. The configuration flexibility allows the system to be adjusted for specific applications and train models. Designed to withstand operation in harsh environments, TVP-110/120 supports a wide operating temperature range (-40 ~ 70 °C) and is compliant with EN 50155 railway regulations.

Datasheet TVP-110
