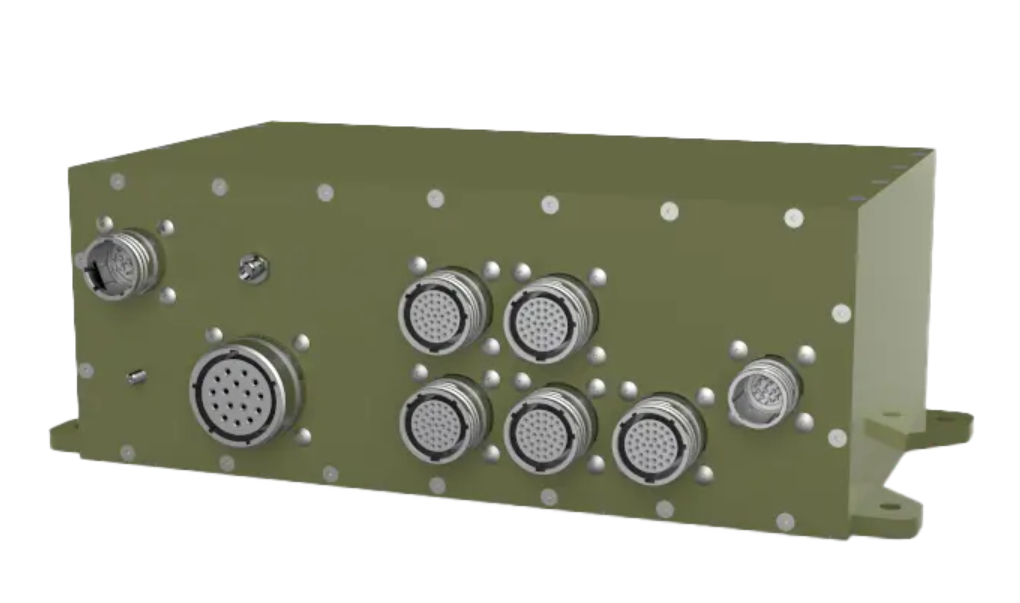

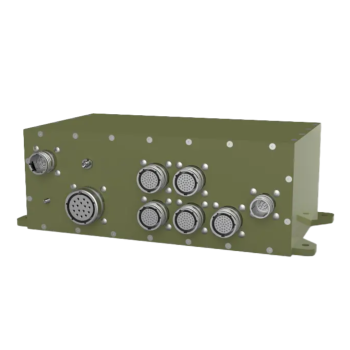

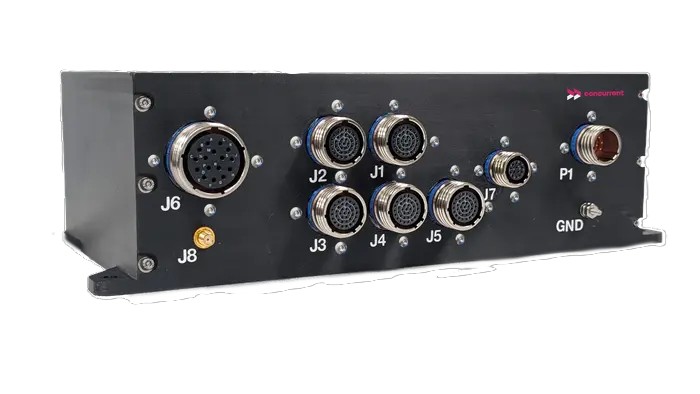

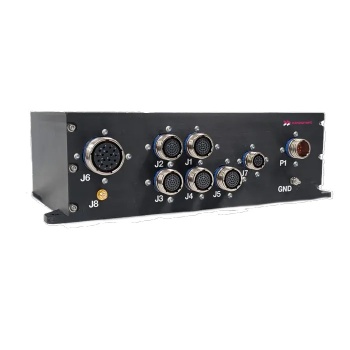

Concurrent Hermod II - Rugged 10 Gigabit TSN Ethernet Switching System

cct_hermodiia

Features

  • Up to 20 Ethernet ports with 68Gbps switching capacity:
  • Up to 6x 10G Fibre Optic ports
  • Up to 16x 1G Copper ports
  • High-availability Seamless Redundancy (HSR)
  • Parallel Redundancy Protocol (PRP)
  • Precision Time Protocol (PTP)
  • Tested and qualified for challenging environments
  • Easy-to-use configurator option

Hermod II is a Commercial Off the Shelf (COTS) Ethernet Switch for applications that demand deterministic communications in a rugged environment. Hermod II supports both 10 Gigabit and 1 Gigabit Sensitive Networking ports that are easily configured.

Hermod II can be specified with an optional GNSS timeserver module to enable accurate timing functionality. It can also be supplied with a cable set to speed up development and deployment.

Datasheet Hermod II

Feel free to request a quote
