Concurrent Technologies PP F84/m3d – CompactPCI Processor

cct_pp-f84-m3da
cct_pp-f84-m3dacct_pp-f84-m3dbcct_pp-f84-m3dc

Features

  • Based on a 4-core Intel® Core™ i3-9100HL processor
  • Two XMC/PMC slots for local I/O expansion
  • Local solid-state storage option
  • Two front Gigabit Ethernet ports

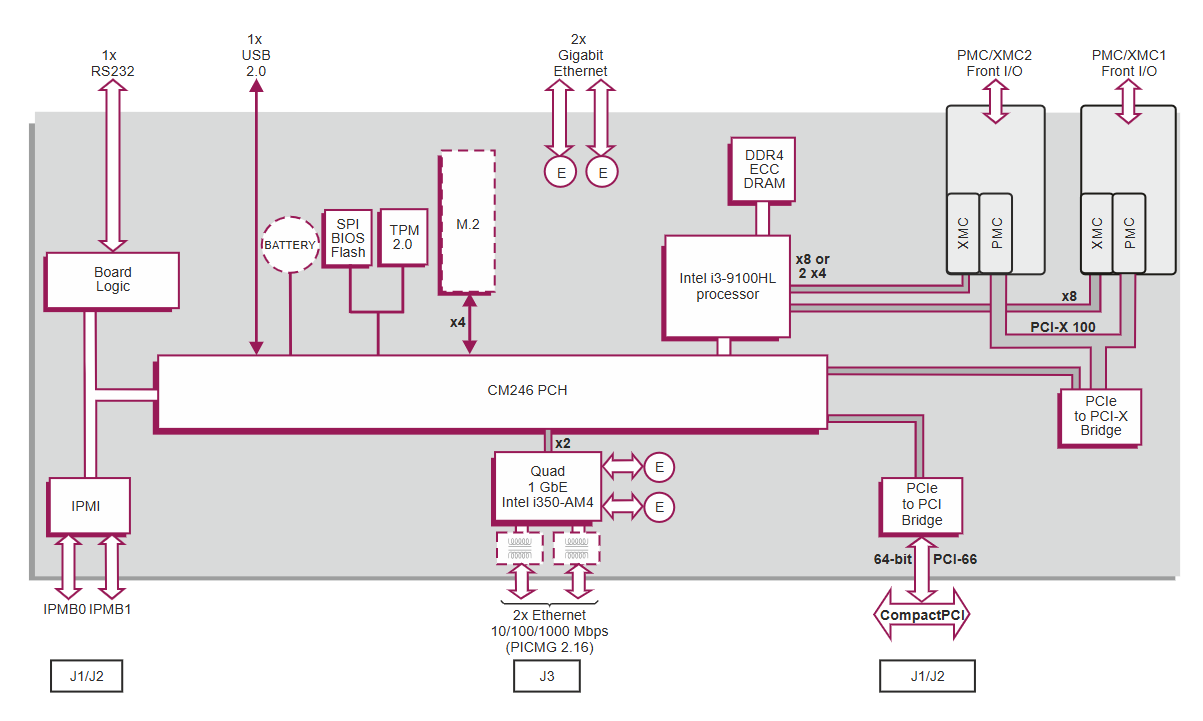

PP F84/m3d is a single slot, air-cooled CompactPCI® board and is available for customers who need better performance and security as well as those looking to extend the life of existing deployments without a backplane change.  PP F84/m3d is based on a 4-core Intel® Core™ i3-9100HL processor with 16 Gbytes soldered DDR4 ECC DRAM.  It has two front Gigabit Ethernet ports for enhanced connectivity and two XMC/PMC module slots to maximize local I/O expansion.  With security being a pivotal part of recent applications, PP F84/m3d has a Trusted Platform Module (TPM 2.0) and supports Intel Boot Guard as standard.  It also comes with an array of peripheral interfaces and with the option of a high bandwidth direct attached storage module up to 1TB capacity.

Datasheet PP F84/m3d

Feel free to request a quote
