SENSORAY Model 626

SENSORAY Model 626
Contact us for more information

Features

  • Six versatile 24-bit counters support incremental encoders
  • 48 bi-directional digital I/O -- 40 with edge detection
  • Four 14-bit analog outputs, 20 KHz update rate
  • Sixteen 16-bit differential analog inputs, 15 KHz rate
  • Watchdog timer with mechanical relay output
  • Battery backup of counters

Model 626 is a PCI board that saves space and reduces cost by combining several popular interface functions on a half-size card. It has six versatile 24-bit counters that support incremental encoders as well as single-clock sources, 48 bidirectional digital I/Os (40 with edge detection), sixteen differential analog inputs, four analog outputs, and a watchdog timer. Five low profile connectors are used with optional flat cables to connect the board to external breakout boards.

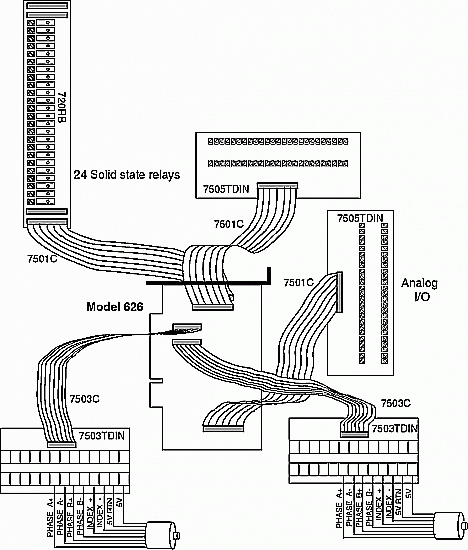

SENSORAY Model 626 application

Encoders and Counters
Three 24-bit up/down counter pairs may be configured for six incremental encoders, each having 24-bits of resolution. Each channel accepts two phased TTL or RS-422 signals plus an index signal to track encoder direction and displacement. Each input is conditioned and synchronized to the 626’s internal clock.

Unlike conventional counters, the 626’s counters do not accumulate errors when the encoder dithers or changes direction. The 626 supplies 5 volt power to each encoder channel. All counters are programmable and may optionally generate interrupts.

The counter channels have a battery backup feature that keeps them running during a power failure. The 626’s battery charger will recharge an external 3.6V NiCd when power is restored.

Each counter can function as a timer using the board's internal clock or an external clock. When paired, 48-bit counters may be used for frequency measurement.

Analog Inputs
Sixteen differential input channels are multiplexed to a sample/hold and successive approximation A/D. Each channel may be programmed for ± 5V or ± 10V. No trim adjustments are needed.

Analog Outputs
Four voltage outputs may be programmed for ± 10 volts. A unique circuit prevents unpredictable D/A outputs during CPU initialization. All outputs are reset to zero volts whenever a bus reset occurs.

Watchdog Timer
The board's watchdog timer may be connected to the bus reset via a 2-pin connector. It may be enabled or disabled under program control. The timer is automatically disabled whenever a bus reset occurs. A mechanical relay is provided to signal external circuitry. The relay can be activated by the watchdog timer or under software control.

Fail-safe Digital I/O
In the event that power is lost to the PC, solid state relays connected to the 626’s digital I/O will not be powered to the on state. This allows solid state relay boards to be powered from a remote power supply without the chance of output relays turning on when the PC is turned off.

Digital I/O
The board's 48 digital lines have standard pinouts for solid state relay boards. Each line is software programmable as an input or output. 40 of the inputs may be independently programmed for edge detection. All outputs are turned off upon system reset.

Specifications

Analog Inputs
Number of channels 16 differential
Conversion time 20 µs/channel
Input resistance 100 MΩ
CMRR 100 dB minimum
Maximum common mode voltage ±5 V
Resolution 16-bits
Accuracy 14-bits
Input ranges ±10 V, ±5 V
Offset error ±1/2 LSB
Analog Outputs
Channels 4
Conversion time 200 µs/channel
Resolution 14 bits
Offset error ±2 bits
Output voltage ±10 V
Output resistance 87 Ω
Digital I/O
Number of channels 48 bi-directional
Output voltage 0 to 5 V open collector
Output sink current 100 mA (at 1.1 V)
Connector 50 pin, low profile, for flat cable
Counters
Channels 6, 24 bits, quadrature-encoded or single-clock
Input signals TTL or RS-422
Input frequency 2 MHz with internal clock
1 MHz with external clock
Quadrature multiplier x1, x2, x4
Battery backup NiCd, 3.6 V
Connector 26 pin, low profile, for flat cable
Watchdog Timer
Watchdog Timer Time-out 1/8, 1/4, 1, 10 sec
Environmental
Bus interface PCI, 32-bit, 33 MHz
3.3V/5 V universal bus signaling
Board dimensions 4.2 x 7.0 in (107 x 178 mm)
Input power < 3 W
Operating temperature 0 to 70 °C



Accessories

26-pin breakout board
Model 7503TDIN breaks out signals from three counter channels. It connects to the 626 with an 7503C/7503C1 cables. Two 7503TDINs can be used to break out all six counter channels.

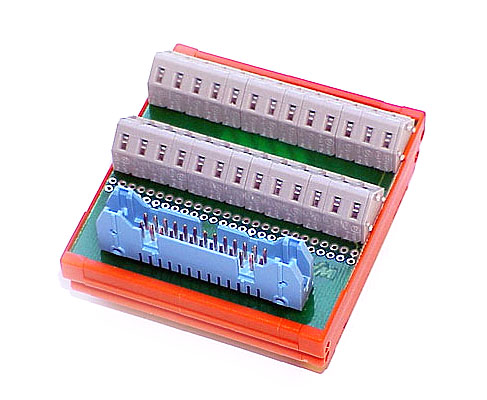

SENSORAY Model 7503TDIN DIN rail mountable, 26 conductor breakout board

50-pin breakout board
Model 7505TDIN breaks out the 626's analog or digital I/O (DIO) signals. It connects to the 626 with an 7501C/7501C1 cables. One 7505TDIN will break out all of the analog signals, or 24 of the 48 DIO signals. Three 7505TDINs can be used to break out all analog and DIO signals.

SENSORAY Model7505TDIN 50-pin breakout board

Solid-state relays
Model 7501T8 connects eight DIO signals to solid state relays (SSRs). It has sockets for any combination of type G4 SSRs (AC or DC, input or output). It connects to the 626 with an 7501C or 7501C1 cable.

SENSORAY Model 7501T panel mountable, 8 solid state relay board

Cables
Two cables are available for connecting the 626 to external circuitry. Both have a low profile connector at one end that plugs into the 626 board. The other end has a standard IDC male connector with 0.1-inch pin spacing. Standard cable length is 24 inches; please call if you need a custom length.

Cable type 7503C/7503C1 connects up to three counter channels; two cables are needed if four or more counters are used.
Cable type 7501C/7501C1 connects either all analog signals or 24 digital I/Os; three cables are needed if all analog and digital I/Os are used.
