Concurrent Technologies VP B7x/msd-RC – Rugged VME Processor Board

cct_vp-b7x-msd-rca
cct_vp-b7x-msd-rcacct_vp-b7x-msd-rcb

Features

  • VME rugged conduction-cooled processor board
  • 6-core Intel® Xeon® processor E-2176M
  • PMC/XMC site(s) for local expansion
  • Direct attached storage options

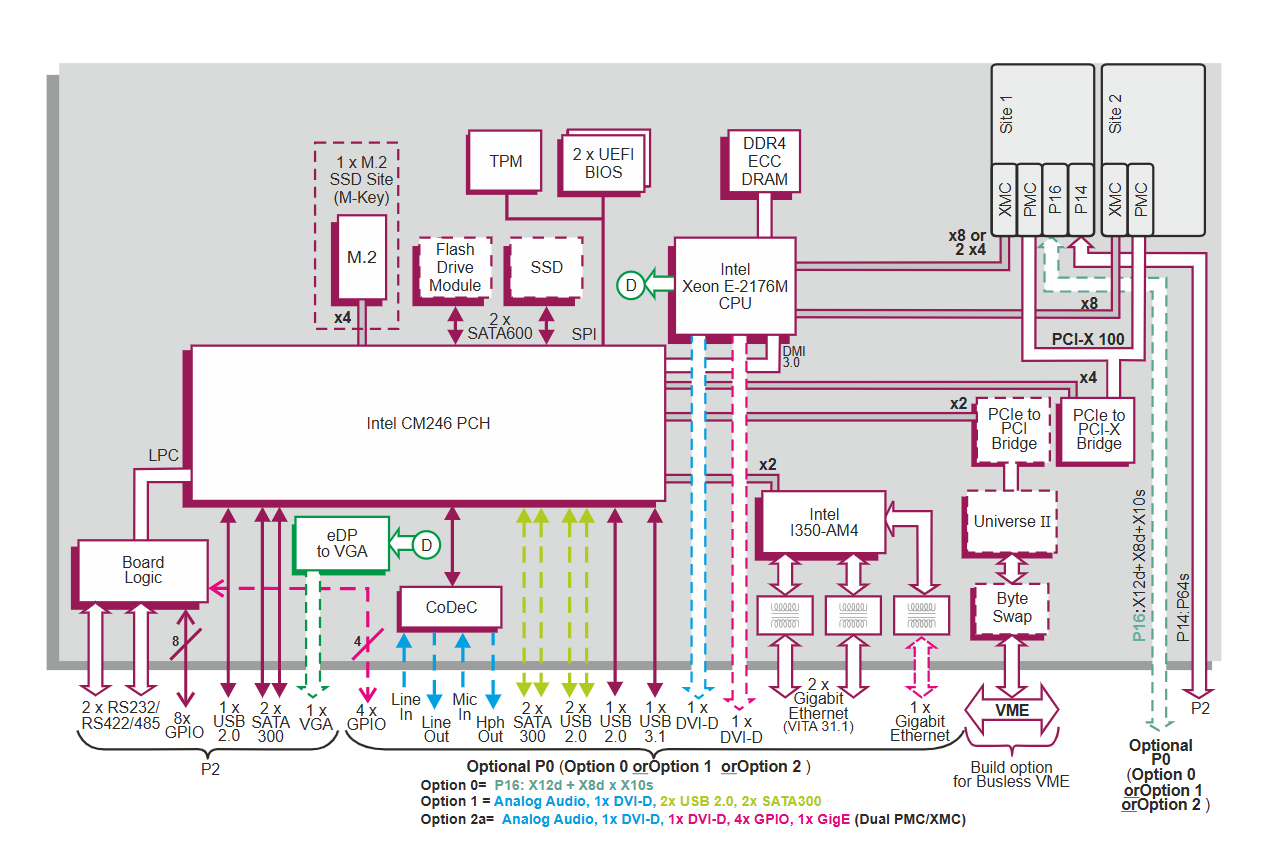

VP B7x/msd-RC is a high-performance, flexible  6U VME processor board based on a 6-core Intel® Xeon® E-2176M processor.  It is designed for long life-cycle applications in the defense, industrial, and scientific markets.  It has two onboard PMC/XMC sites for local I/O and sites for SATA Flash Disk, M.2 module, and 2.5-inch SSD for local storage.  Board support packages are available for Windows, Linux, and VxWorks, contact Parhelia B.V. for availability on other operating systems.

Datasheet VP B7x/msd-RC

Feel free to request a quote
