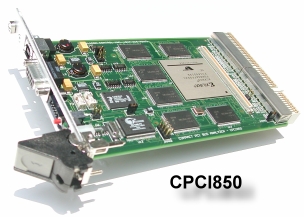

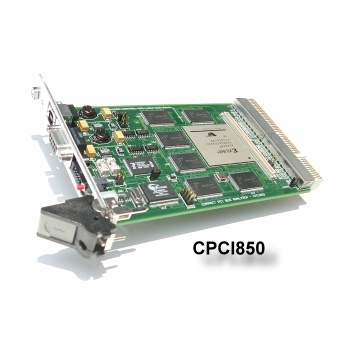

Silicon Control CPCI850

Silicon Control CPCI850

Silicon Control introduces the ultimate analyzer and exerciser for Compact PCI systems. This 3rd generation CPCI analyzer combines high performance hardware with a sophisticated and intuitive software interface. The result is a powerful diagnostic tool for bus analysis all on a single plug-in card.

The CPCI850 analyzer provides a multitude of functions to help you analyze your system.

  • Capturing bus activity using sequential triggers and filters
  • Exerciser to perform memory, IO and configuration cycles
  • Stimulus generation for hardware simulation
  • Target memory with addressable windows
  • Anomaly detection of protocol and timing violations
  • Performance analysis of utilization, transfer rates, latency, statistics
  • Compliance testing

If you need to debug, integrate or test a CompactPCI system or component, the CPCI850 family of advanced bus analyzers quickly and accurately pinpoints problems, identifies performance issues and tests for compliance.


850 System Analyzer/Exerciser

Feel free to request a quote
