WINSYSTEMS SBC25-C466 SBC with Intel® Atom® x6413E Processor

Contact us for more information


Performance for Industrial IoT
  • Intel Atom. (formerly Elkhart Lake) x6413e Series Processor
    • x6413e 1.5 GHz (3.00 GHz) Quad-Core
  • Up to 8GB LPDDR4 Onboard System RAM
  • Dual 2.5 Gbit Ethernet
  • TPM 2.0 Firmware Security
Rugged Design
  • -20ºC to +70ºC Operating Temperature Range
  • 2.5” SBC Form Factor, 4” x 3.5” (102 x 88 mm)
  • Wide Range Power Input (+9 ~ 36 VDC)

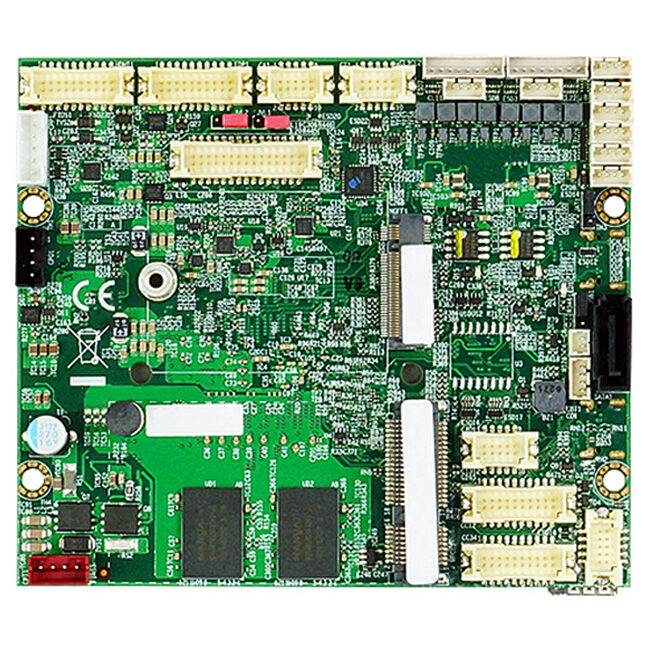

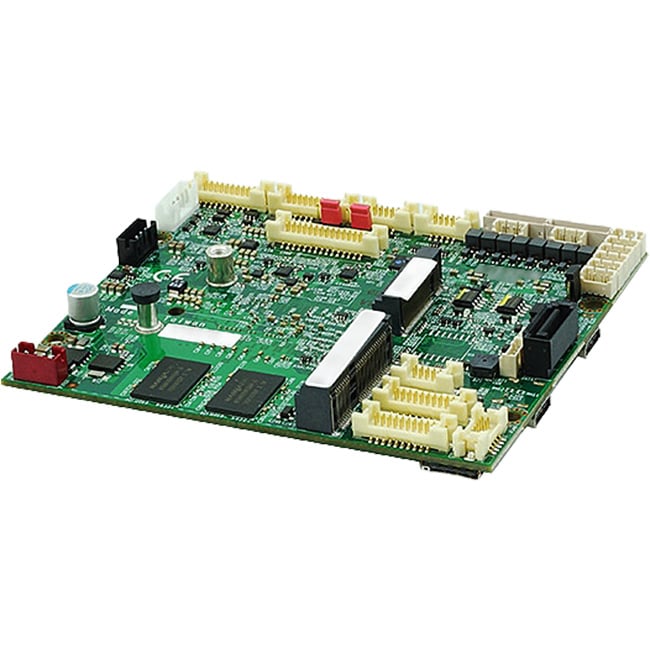

WINSYSTEMS’ SBC25-C466 single board computer packs an impressive feature set into a small form factor 2.5-inch SBC (3.46” x 4.02”). The SBC is based on the Intel® Atom® x6413E Processor and is a perfect choice for applications requiring low power and Intel performance in a small form factor package with industrial connectors and I/O.

The compact all-in-one SBC25-C466 SBC is fully compatible with industry standards featuring technical enhancements for industrial applications and high reliability. It can run Microsoft’s Windows 10 IoT Enterprise, Linux, and real-time operating systems (RTOS). The SBC25-C466 from WINSYSTEMS is a very compact, PC-compatible single board computer that is a perfect fit for applications in UAV, energy, medical diagnostics, and industrial control.

Datasheet SBC25-C466
