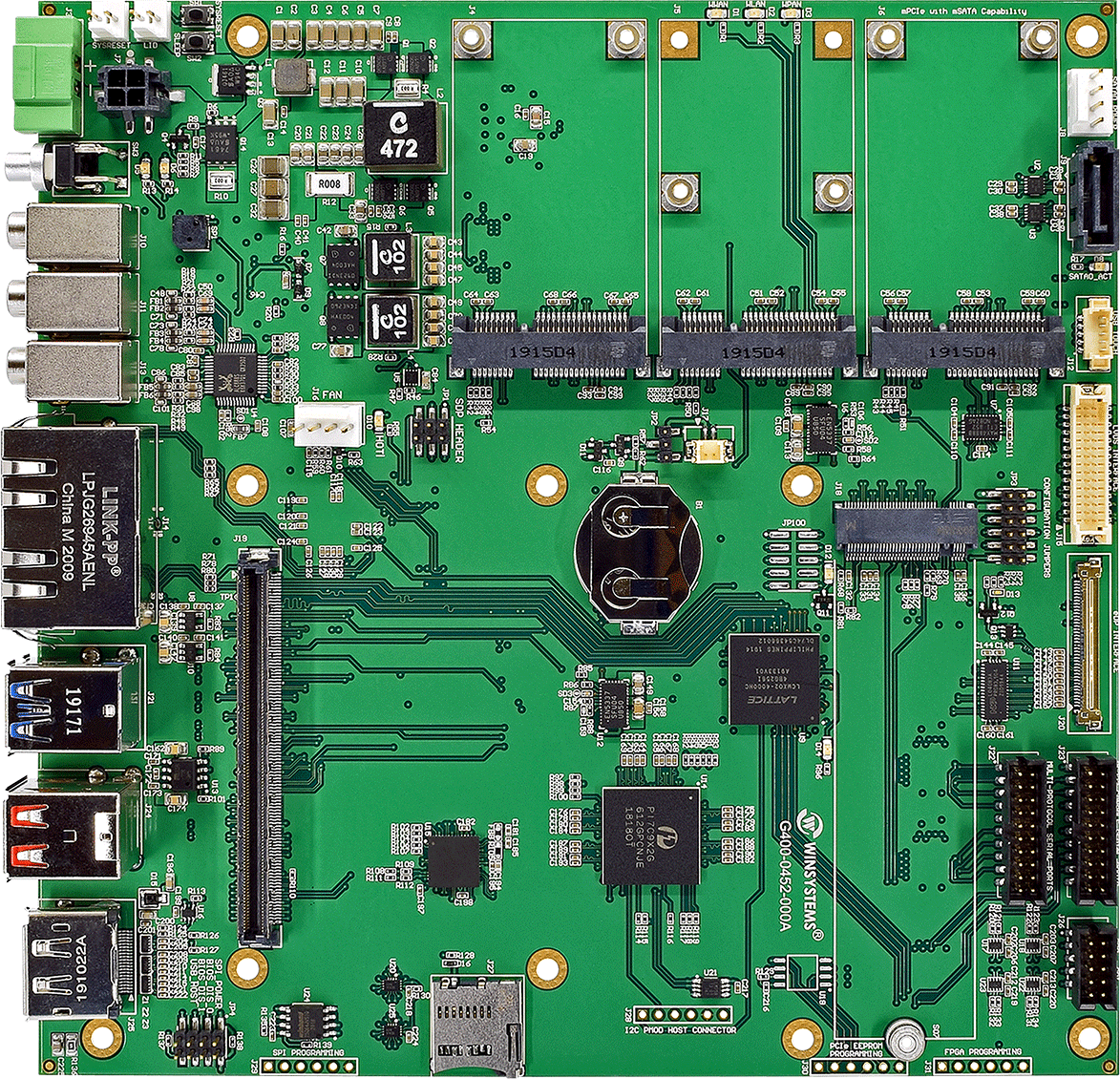

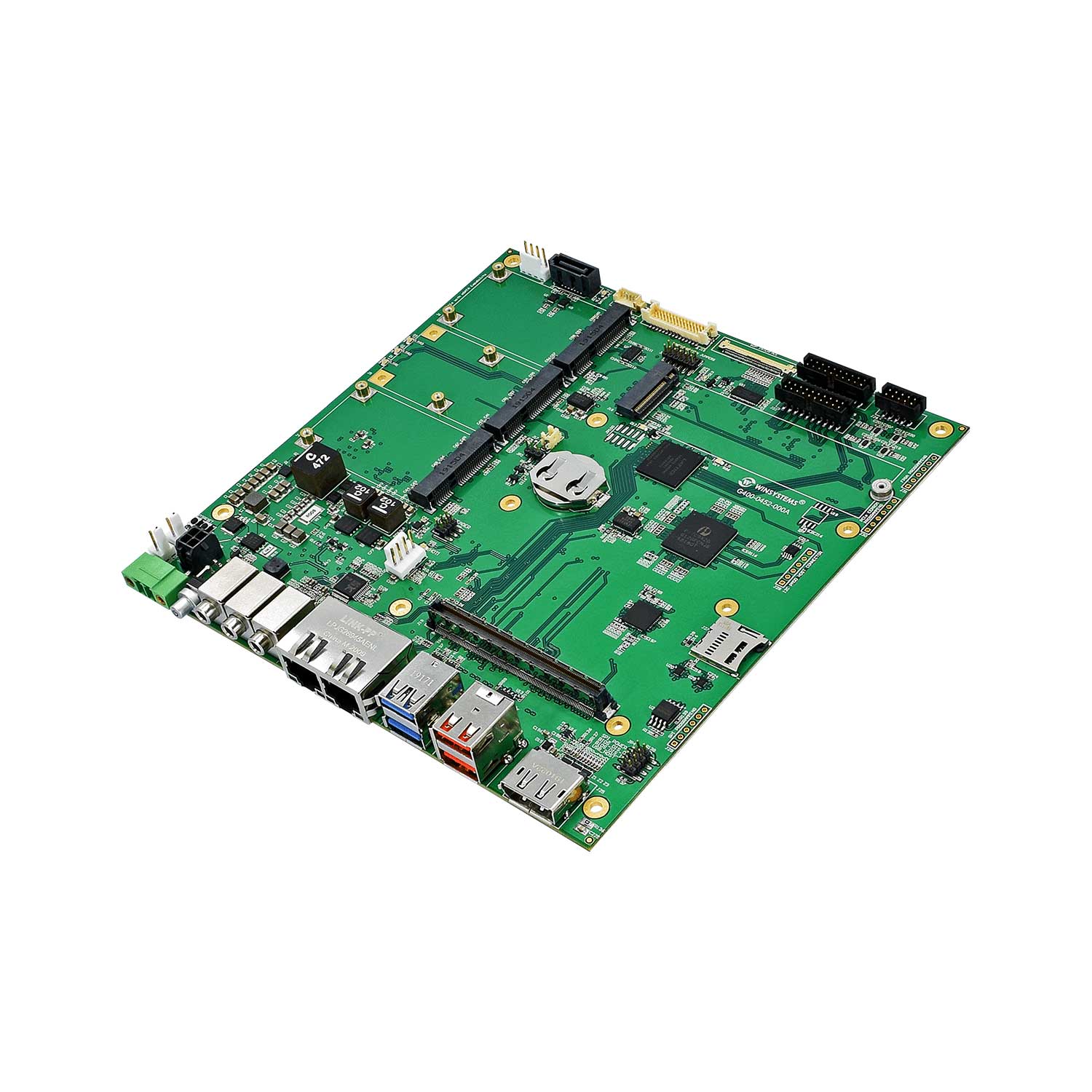

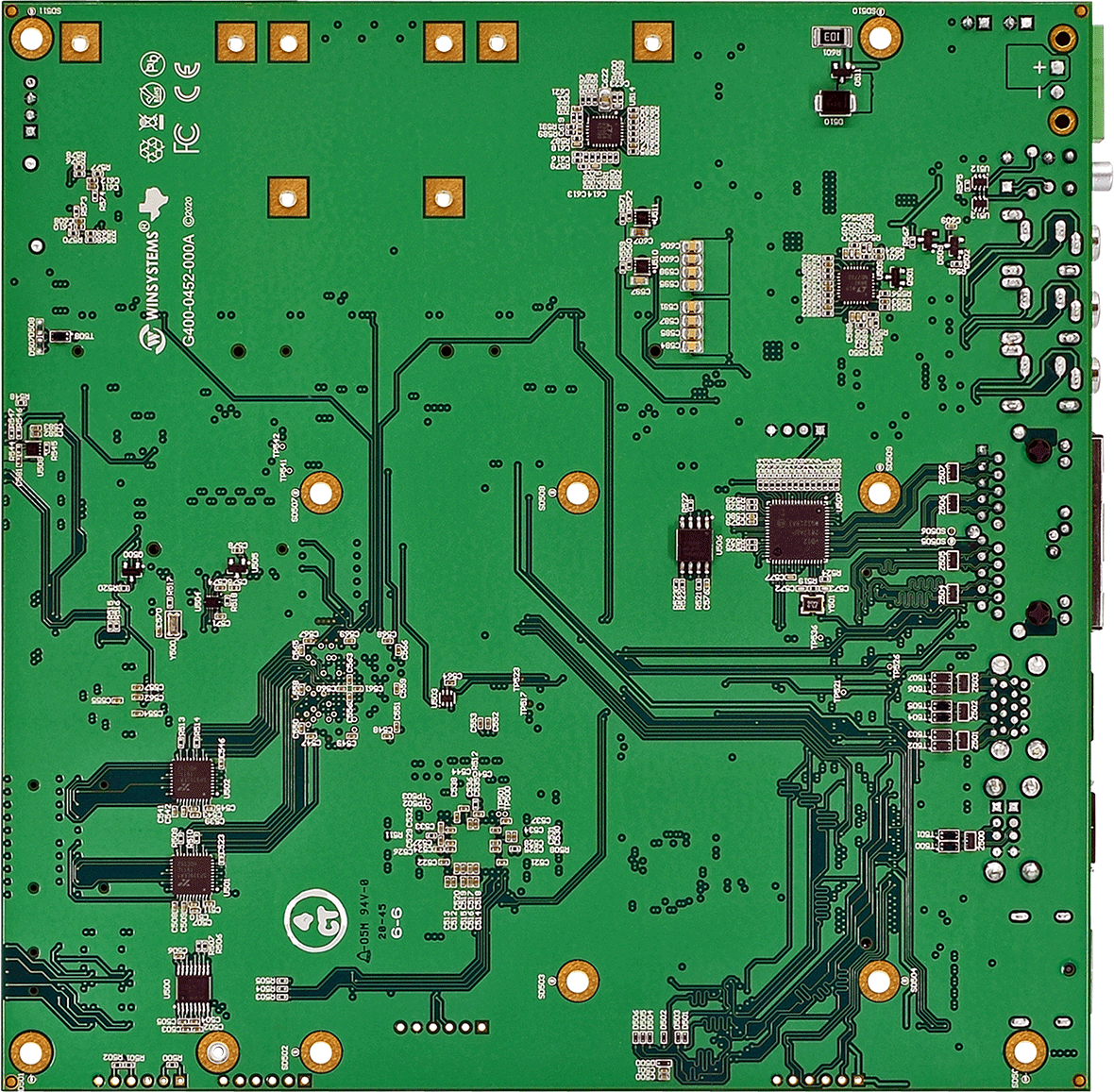

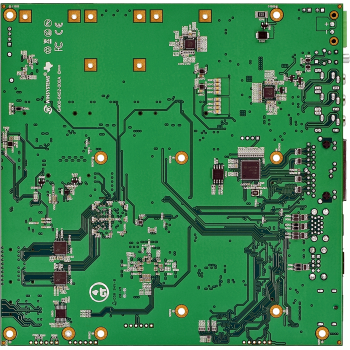

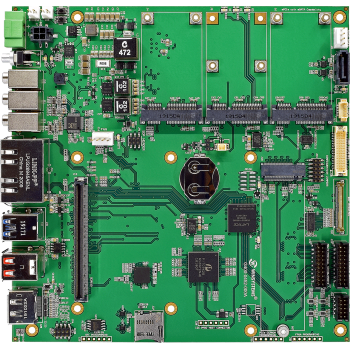

WINSYSTEMS ITX-M-CC452-T10 Mini-ITX Reference Carrier for COM Express® Type 10 Mini Modules

ws_itx-m-cc452-t10a
ws_itx-m-cc452-t10aws_itx-m-cc452-t10dws_itx-m-cc452-t10bws_itx-m-cc452-t10c
Contact us for more information

Features

Industrial Carrier Design
  • Mini-ITX Small Form Factor
  • -40°C to +85°C Operating Temperature Range to help verify against your COMe T10 designs
  • Wide Range Power Input (9-20 V DC)
Graphics
  • Supports up to Two Independent Displays
  • 1x DisplayPort with 4K Resolution
  • 1x LCD with backlight and touch control

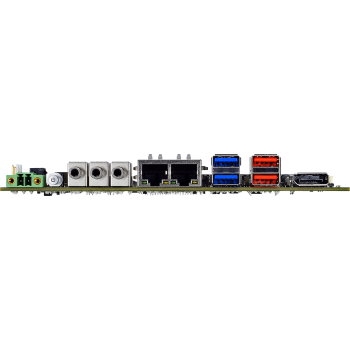

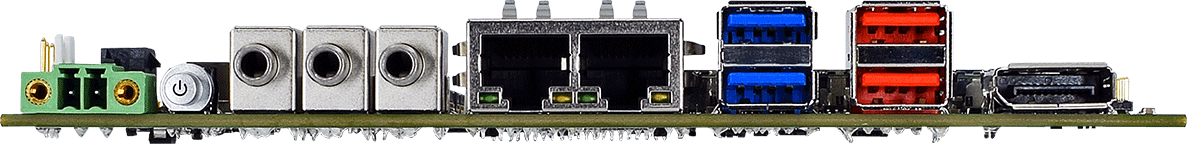

I/O
  • Gigabit Ethernet
  • USB 3.2 Gen 1 and USB 2.0
  • General Purpose Input (GPI)
  • General Purpose Output (GPO)
  • Serial Ports (RS232/422/485)
  • HD Audio
  • microSD, SATA and mSATA
  • Mini-PCI Express (1x with mSATA support)
  • M.2 M-key 2280 with support for PCIe x4 NVMe

Datasheet ITX-M-CC452-T10
