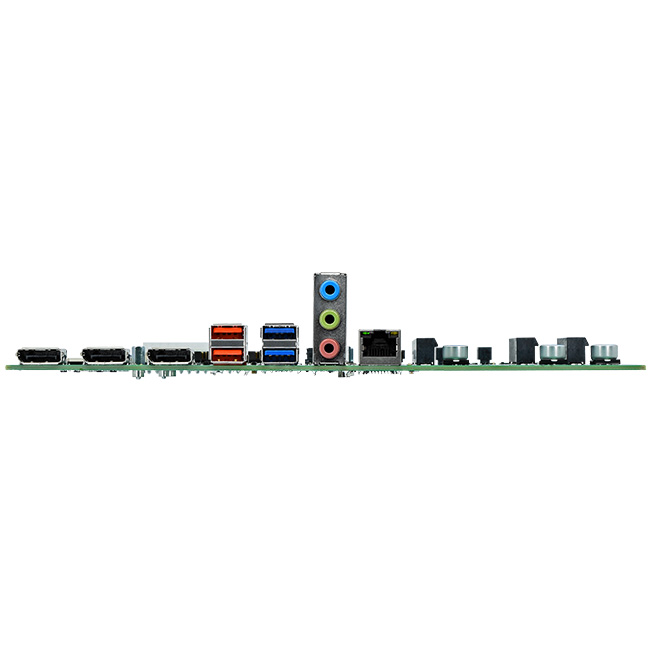

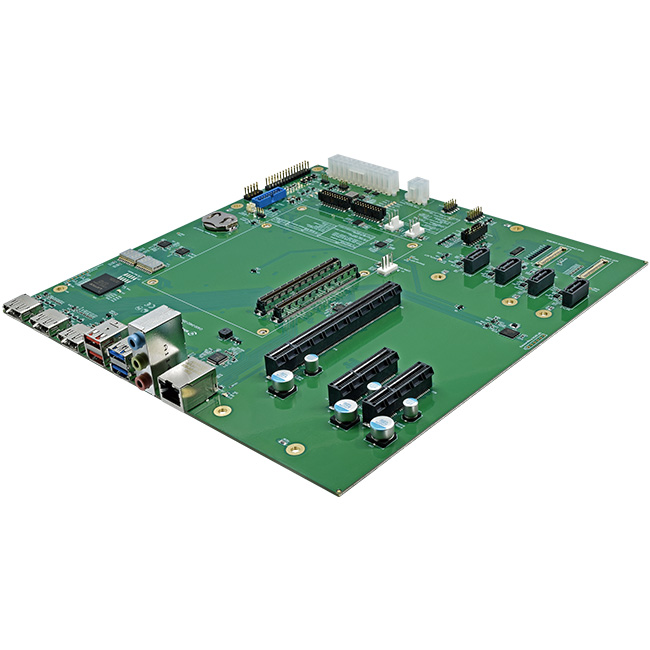

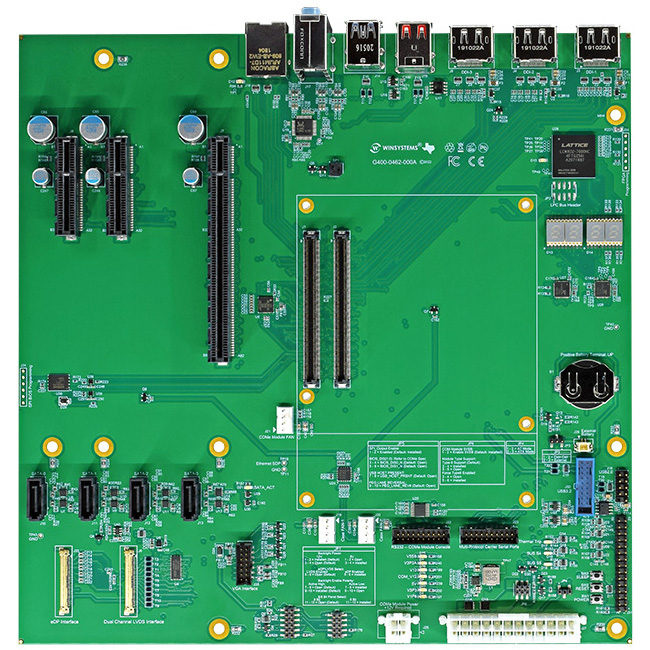

WINSYSTEMS ATX-M-CC462-T6 Micro-ATX COM Express® Type 6 Carrier Board

Features

Industrial Carrier Design

• Micro-ATX form factor: 9.6 x 9.6 inches (244 x 244mm)
• -40ºC to +85ºC with supporting cooling options
• ATX Mode: Standard ATX Power input

Graphics

• 3x DisplayPort++ Ports

• Support for Dual Channel LVDS and eDP, including backlight

I/O

• USB 3.2 Gen1 and USB 2.0
• RS232/422/485
• SATA Type III (6Gb/s)
• RJ45 supporting 2.5G Ethernet from COMe
• PCI Express Gen4 x16 PEG / NVMe
• PCI Express Gen3 x4

Datasheet ATX-M-CC462-T6
