WINSYSTEMS COMeT6-1100 COM Express® Type 6 Compact Module with 11th Gen. Intel® Core™ Processor

Contact us for more information


Performance for Industrial IoT Applications
  • 11th Gen Intel Core i3/i5/i7 Processor, formally Tiger Lake-UP3
  • Up to 32GB LPDDR4 4266 MT/s System Memory, supporting IBECC
  • 12MB Cache for CoreTM i7, 8 MB for Core i5, 6MB for Core i3, 4 MB for Celeron
  • On-board Discrete TPM 2.0 Hardware Security
Rugged Design for Demanding Environments
  • -40ºC to +85ºC Operating Temperature Range
  • COM Express Type 6 Compact, Small Form Factor

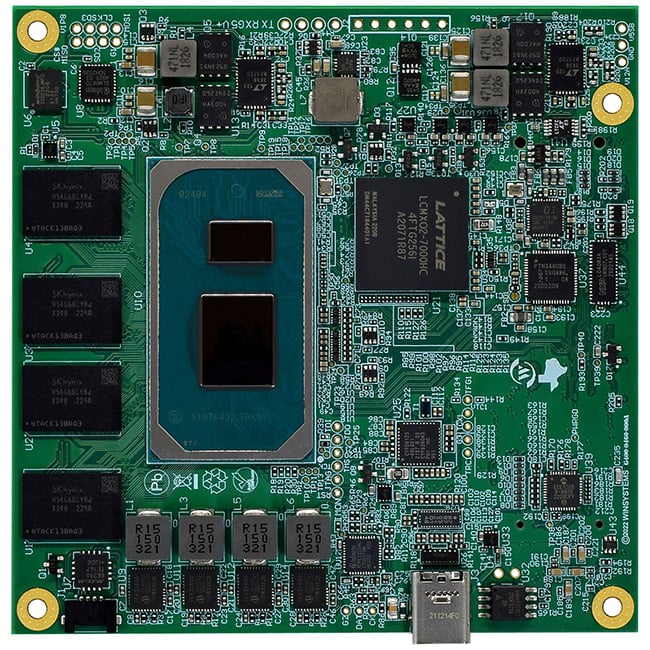

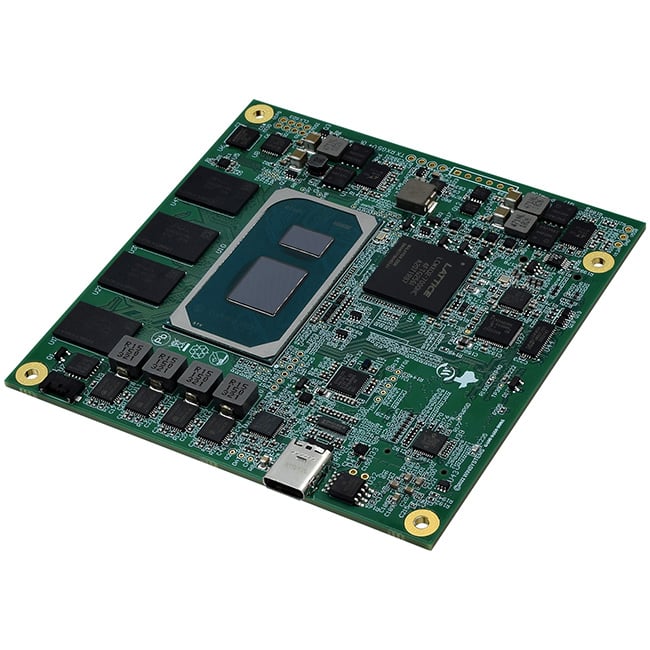

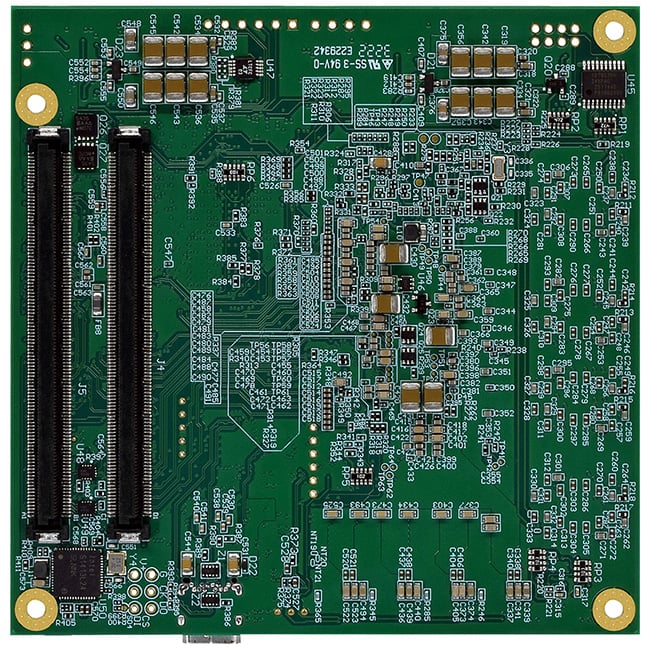

The COMeT6-1100 is an industrial COM Express Type 6 Compact module with an Intel. 11th Gen Intel Core™ i3/i5/i7 Processor. This industrial module is designed and manufactured in the USA. The small form factor module is designed as a processor mezzanine that can be plugged onto a carrier board that contains user-specific I/O requirements.

Datasheet COMeT6-1100
