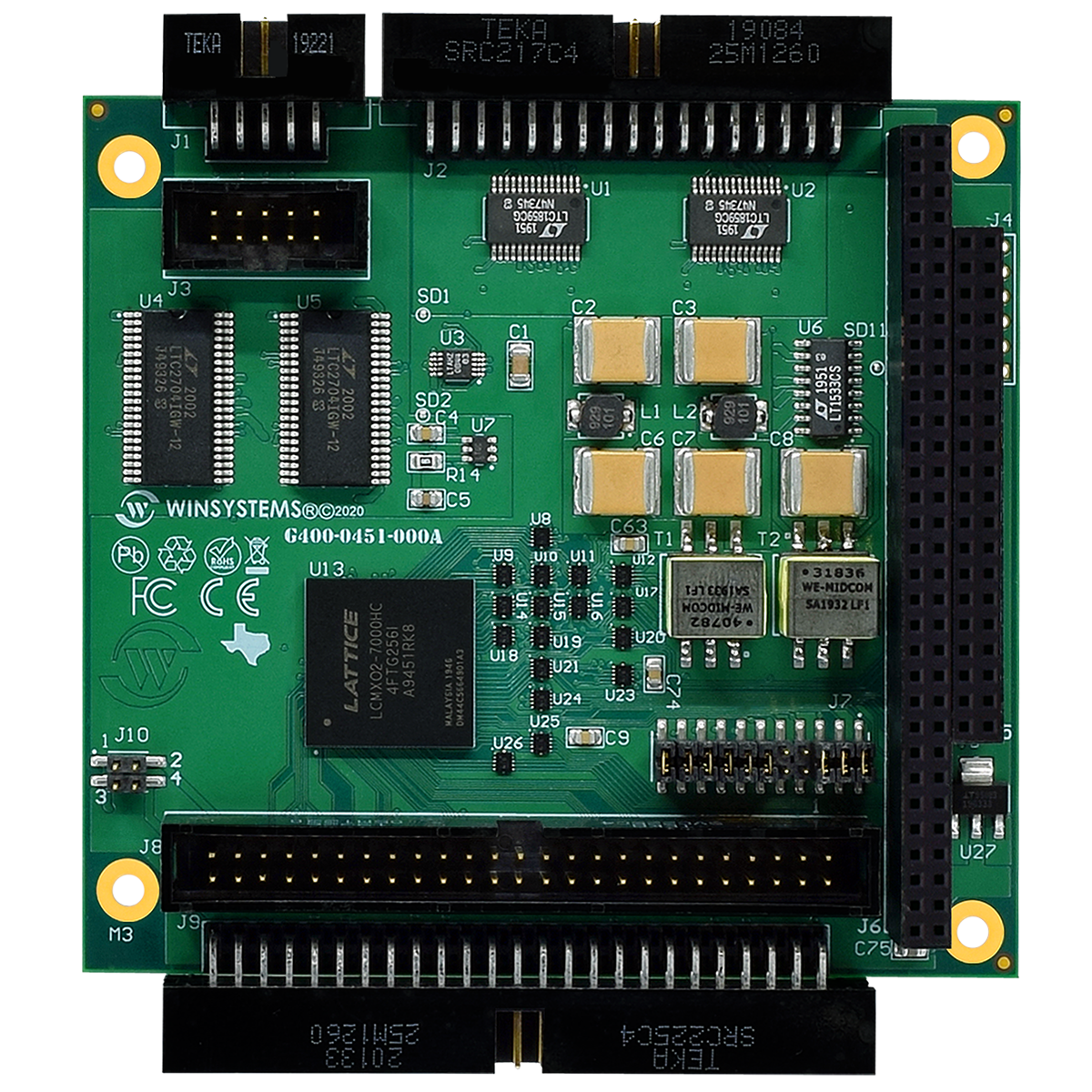

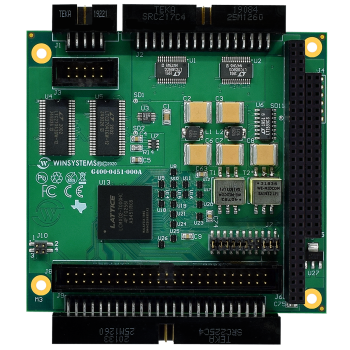

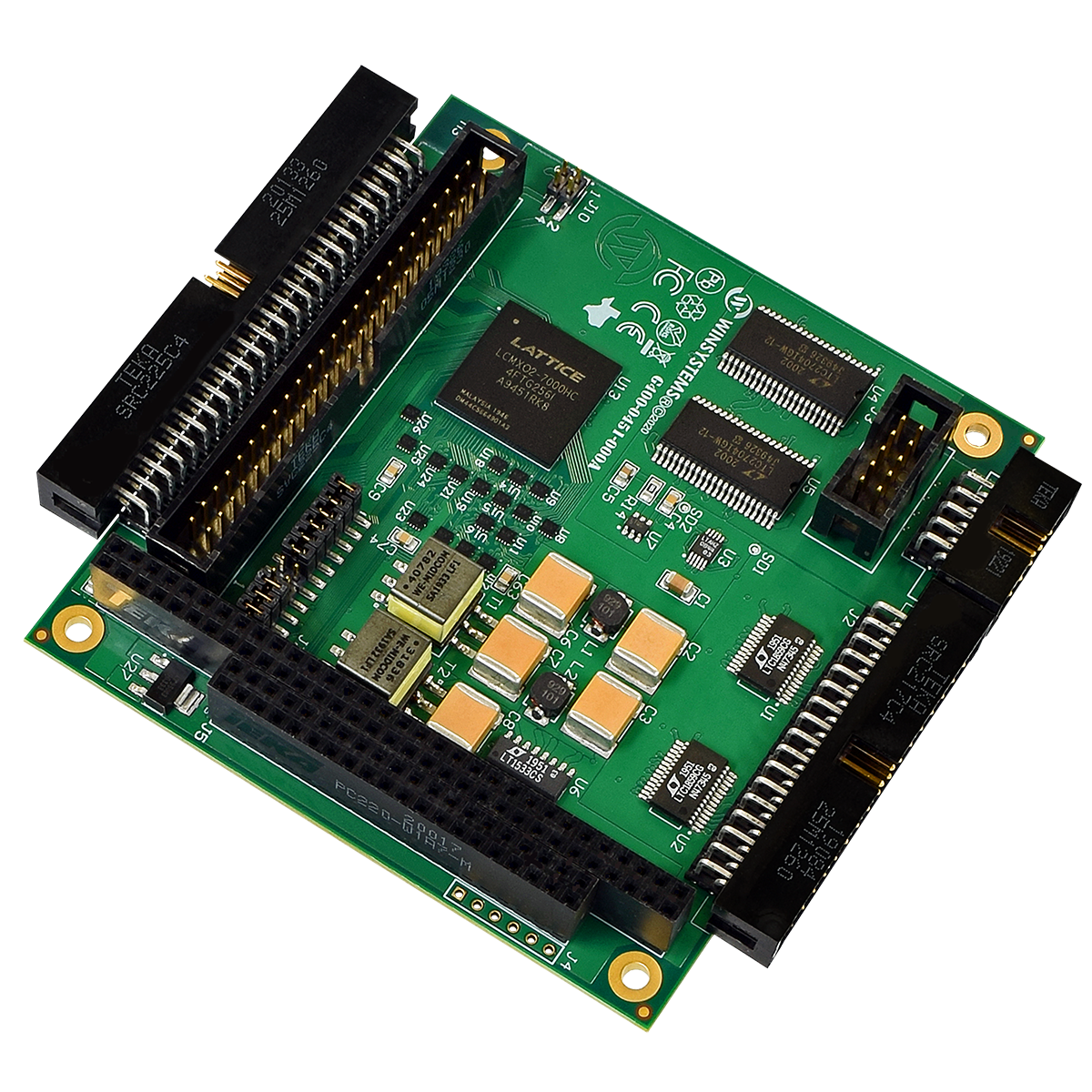

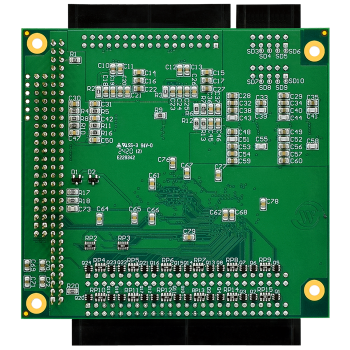

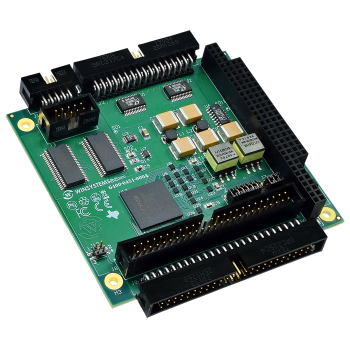

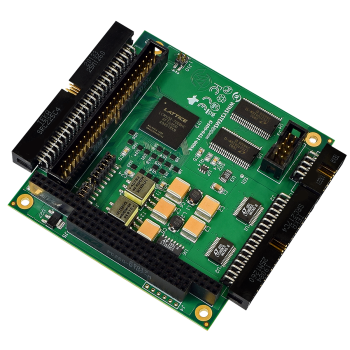

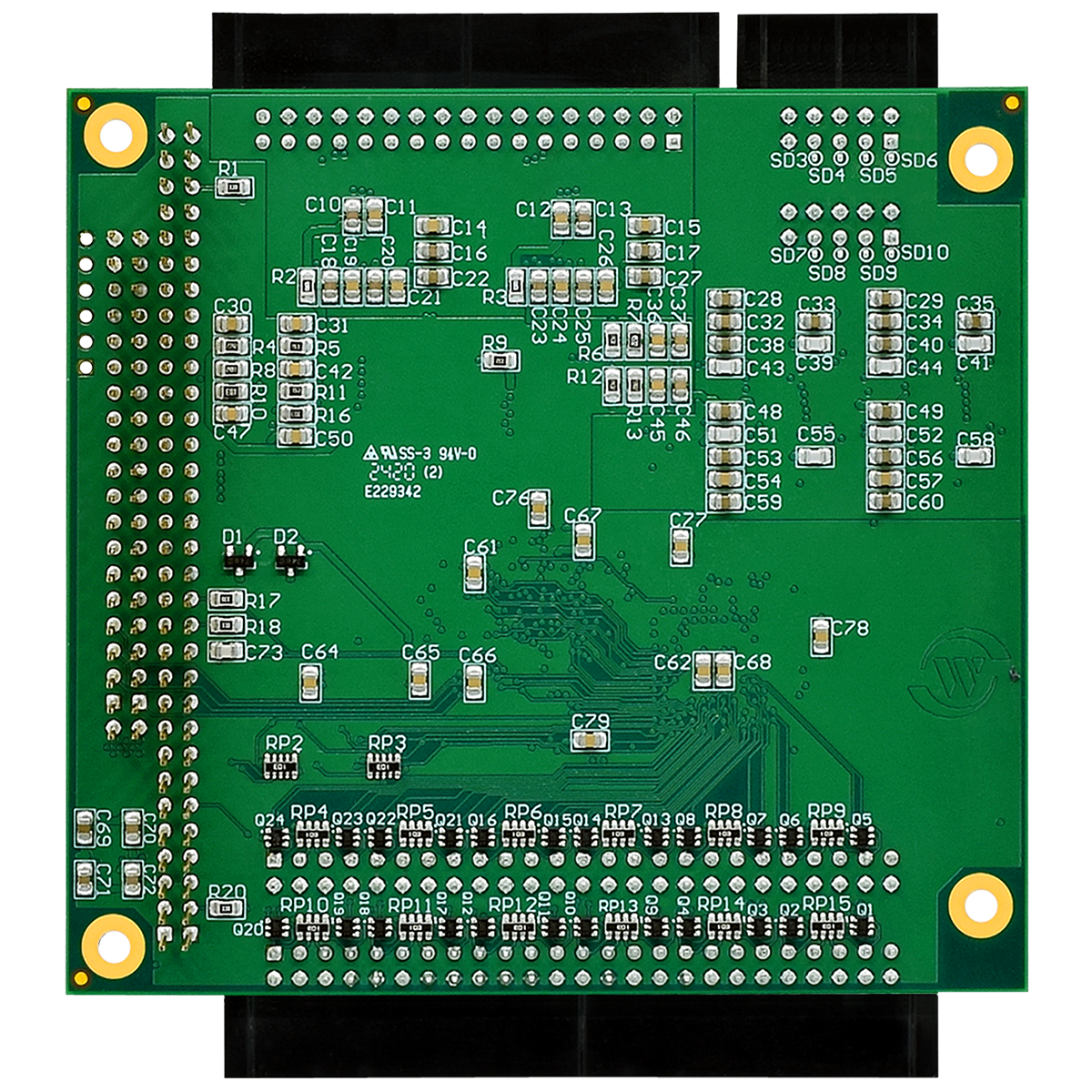

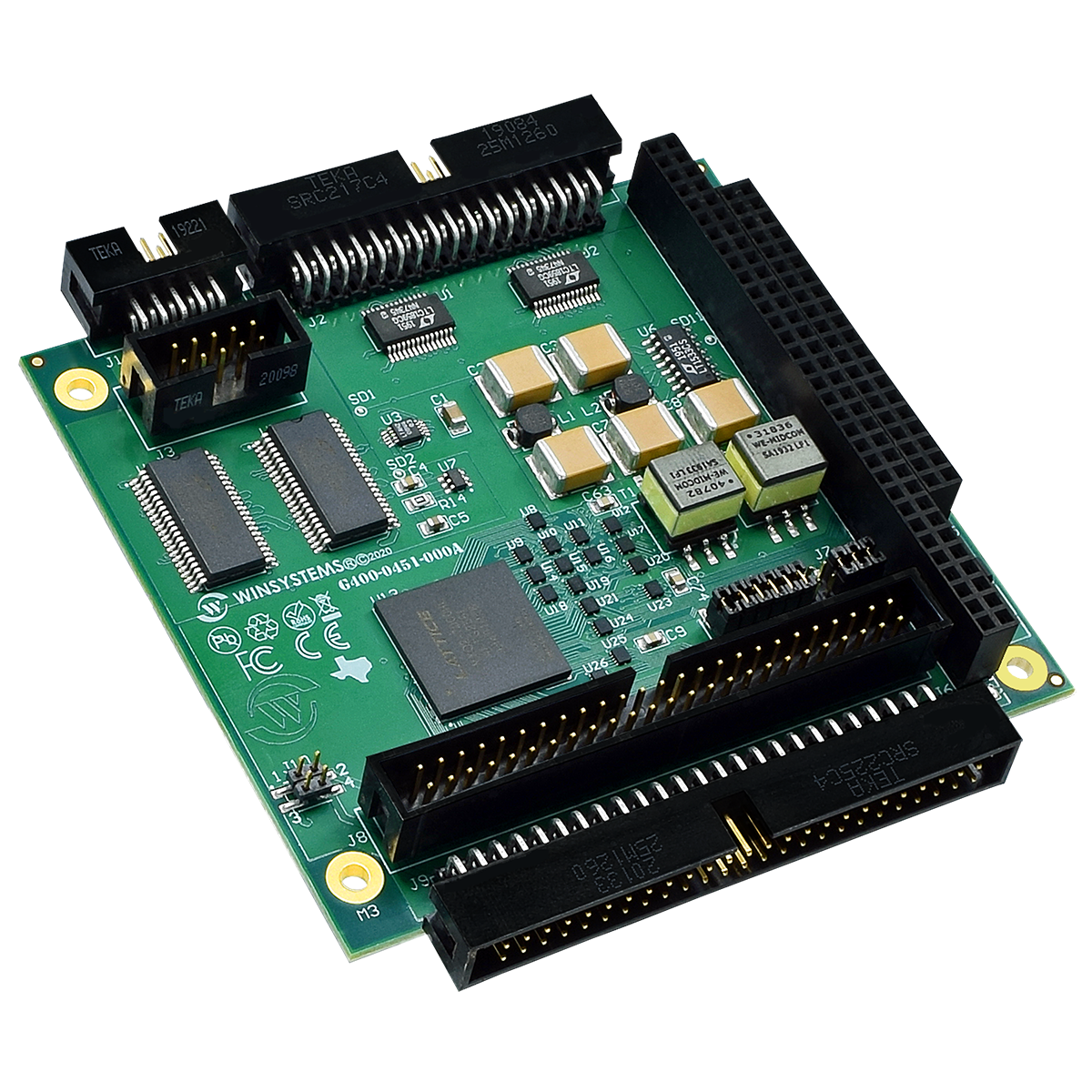

WINSYSTEMS PCM-MIO-A-1 PC/104 – 16 ADC, 8 DAC, and 48 Digital I/O

ws_pcm-mio-a-1a
ws_pcm-mio-a-1aws_pcm-mio-a-1bws_pcm-mio-a-1cws_pcm-mio-a-1d
Contact us for more information

Features

Analog Inputs
  • 16-bit Analog-to-Digital Converter (ADC) with sample-and-hold circuit
  • Input ranges: 0-5V, 0-10V, ±5V, and ±10V
  • Any combination up to 16 single-ended or eight differential input channels
  • Each channel independently software programmable for input type and range
  • ±25V input protection on each channel
  • No missing codes over the full range
  • Low-noise DC/DC reference for accuracy
  • Programmable interrupt
Analog Outputs
  • Eight, 12-bit Digital-to-Analog converters (DAC)
  • Output ranges: 0-5V, 0-10V, ±2.5V, ±5V, ±10V, and -2.5V to 7.5V
  • Channels are independently software programmable
  • Output channels can be updated and cleared individually or simultaneously
Digital Inputs/Outputs
  • 48 Bidirectional lines with Input, Output, or Output with Readback, 24 capable of event-sense interrupt generation
  • 12mA sink current per line
General
  • No calibration required
  • Standard 0.100” headers for easy cable access
  • Operating temperature: -40ºC to +85ºC
  • +5VDC operation
  • 3.6 x 3.8 Inches (90 x 96mm)
  • Custom OEM configurations available
  • Compatible with industry-standard I/O racks

The PCM-MIO-A-1 is a versatile, PC/104-based analog input, analog output, and digital I/O board designed for high-accuracy and high-channel-count analog and digital I/O. The board is based upon Linear Technology’s precision converters and voltage references which require no external calibration. The digital I/O utilizes WINSYSTEMS’ versatile WS16C48 Universal I/O controller functionality, also available on many of our SBCs and other I/O products.

Datasheet PCM-MIO-A-1
