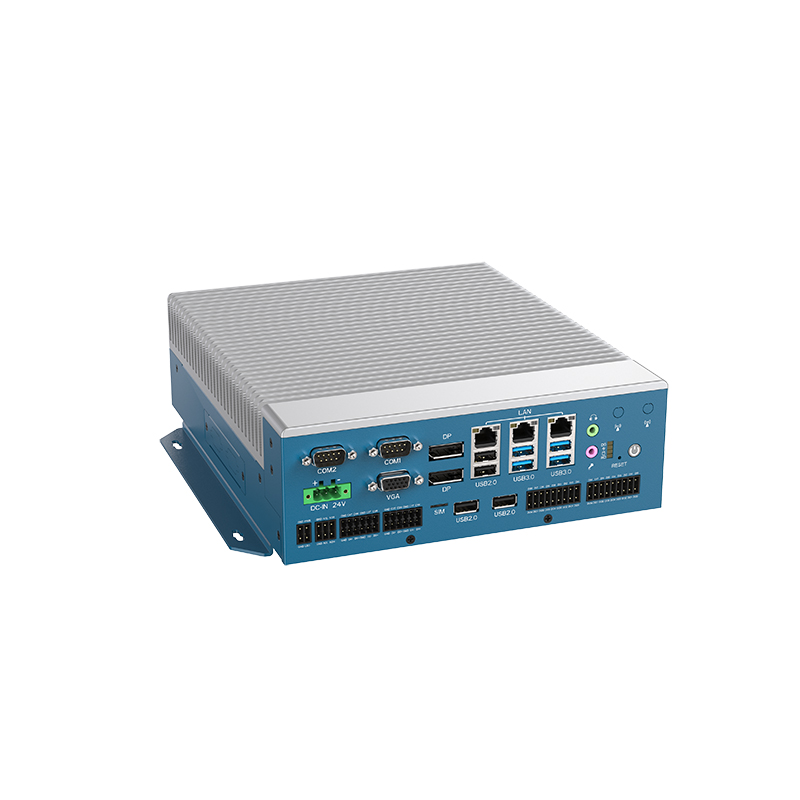

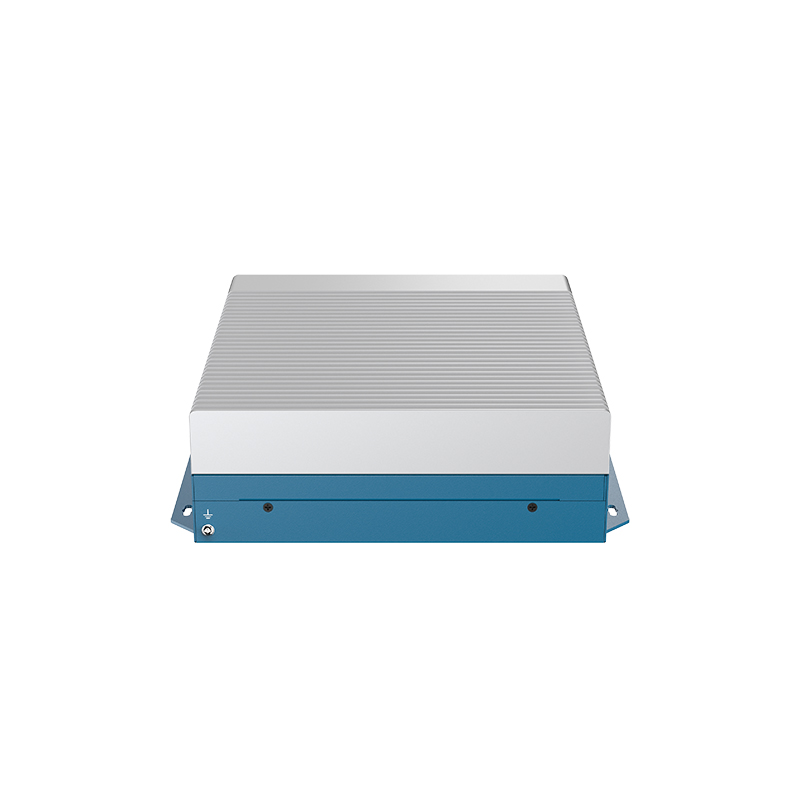

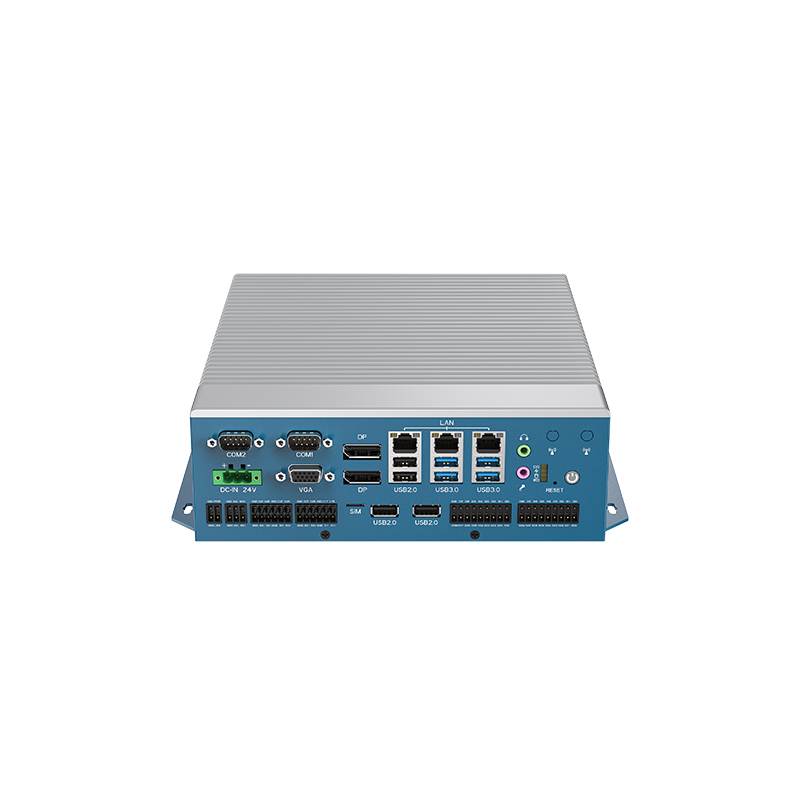

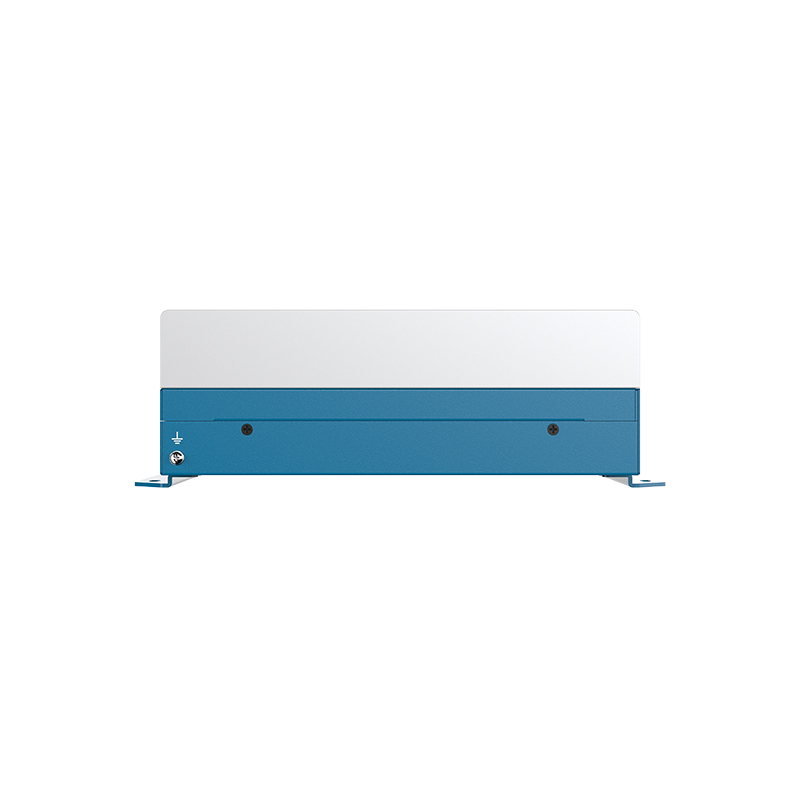

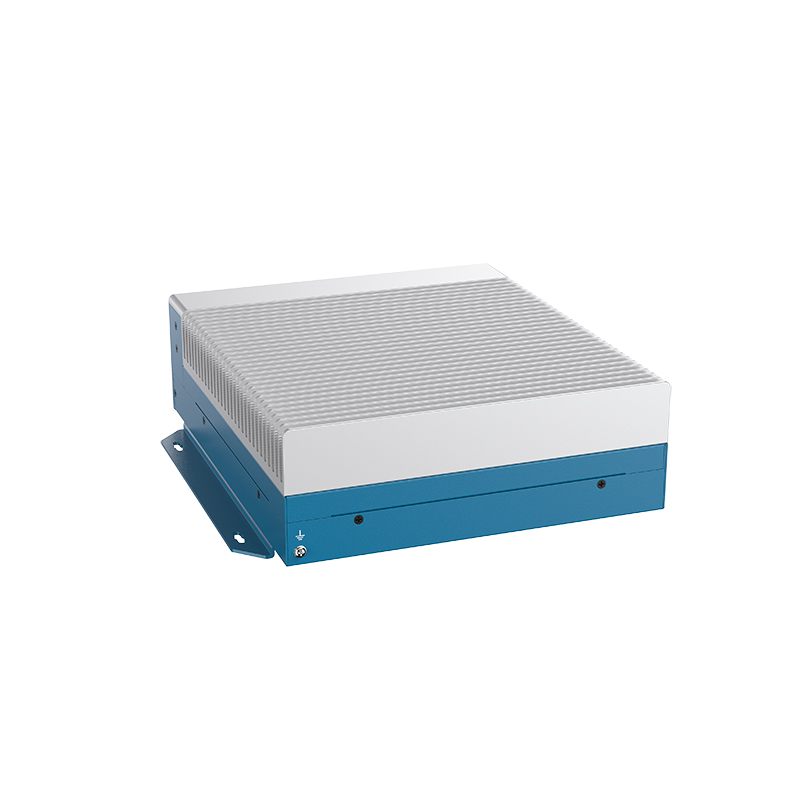

Darveen MIC-7300 Intel® 6th/7th/8th/9th Modular Industrial Box Computer

drv_mic-7300a
drv_mic-7300adrv_mic-7300ddrv_mic-7300cdrv_mic-7300edrv_mic-7300b

Features

  • Intel® LGA 1151 6th/7th/8th/9th CPU
  • 6 x RS-232(5 x RS-232/485)
  • 3 x LAN, 8 x USB, 2 x DP, VGA
  • 1 x 2.5” SATA HDD or SSD, 1 x M.2 SSD
  • 1 x Mini PCIe, 32 x GPIO, 2 x CAN
  • Onboard SIM socket
  • 24V DC Power Input

The Darveen MIC series makes use of a modular design of expansion slots, in order to meet different application requirements with different slot modules. The rugged aluminum housing not only provides an excellent heat dissipation solution but also does have high EMI/impact/vibration resistance.

The MIC-7300 can be configured with an Intel® LGA 1151 6th/7th/8th/9th CPU, making it widely applicable in embedded and industrial PC applications that require high-performance processors in a limited space.

Datasheet MIC-7300

Feel free to request a quote
