  • Intel Apollo Lake-I E3900 Processor (Dual- or Quad core)
  • Up to 8 GB Soldered LPDDR4 System Memory
  • Time Coordinated Computing
  • Precision Time Measurement
  • -40°C to +85°C Operating Temperature Range
  • PC/104 Small Form Factor with PCIe/104™ OneBank™
  • Multiple Displays Supported
  • Secure and Trusted Data
    • TPM 2.0 Hardware Security Enabled
    • Intel Security Engine
    • Cryptographic Acceleration
  • Connectivity and I/O for Embedded Systems
    • Dual Ethernet
    • 1x USB 3.2 Gen 1 Type C and 8x USB 2.0
    • 24x GPIO with Event Sense
    • 4x Serial Ports, 1x Serial Console Port
    • 1x I2C Bus
  • Expansion Options
    • PCIe/104™ OneBank™
    • M.2 Expansion Socket

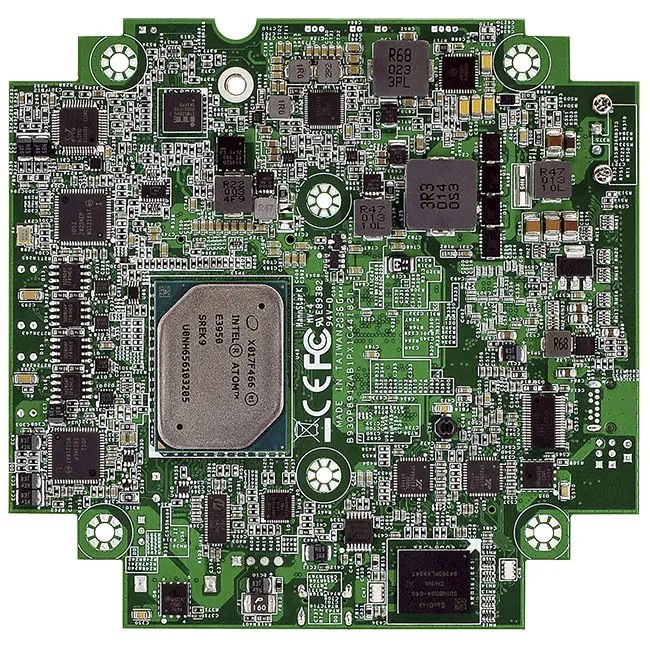

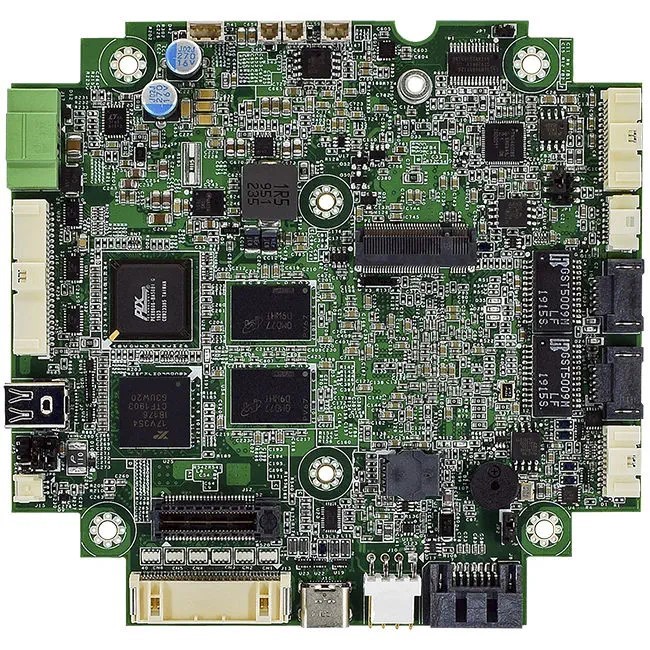

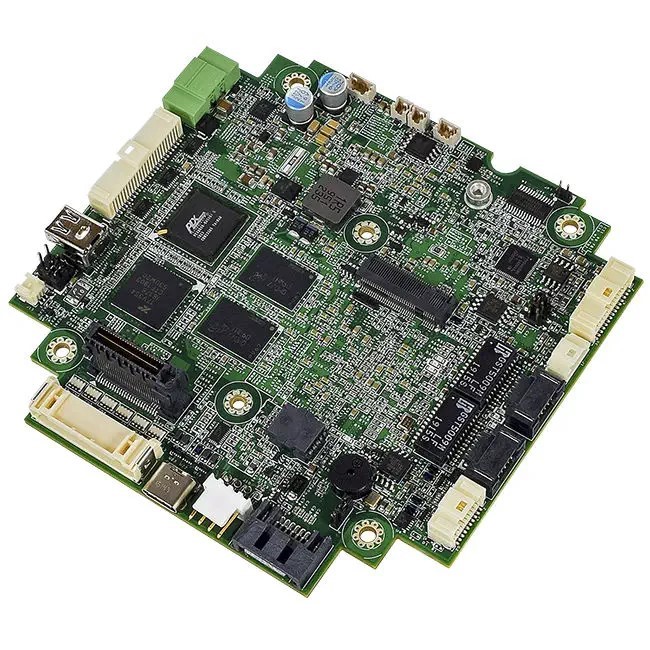

WINSYSTEMS’ PX1-C441 single board computer (SBC) is a PC/104 form factor SBC with PCIe/104™ OneBank™ expansion featuring the latest generation Intel Apollo Lake-I Dual-core or Quad-core SOC processors for processing graphics. It includes up to 8 GB of soldered down LPDDR4 system memory and a non-removable eMMC device for solid-state storage of an operating system (OS) and applications. In addition, the board supports M.2 and SATA devices.

Its small size, rugged design, and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.
