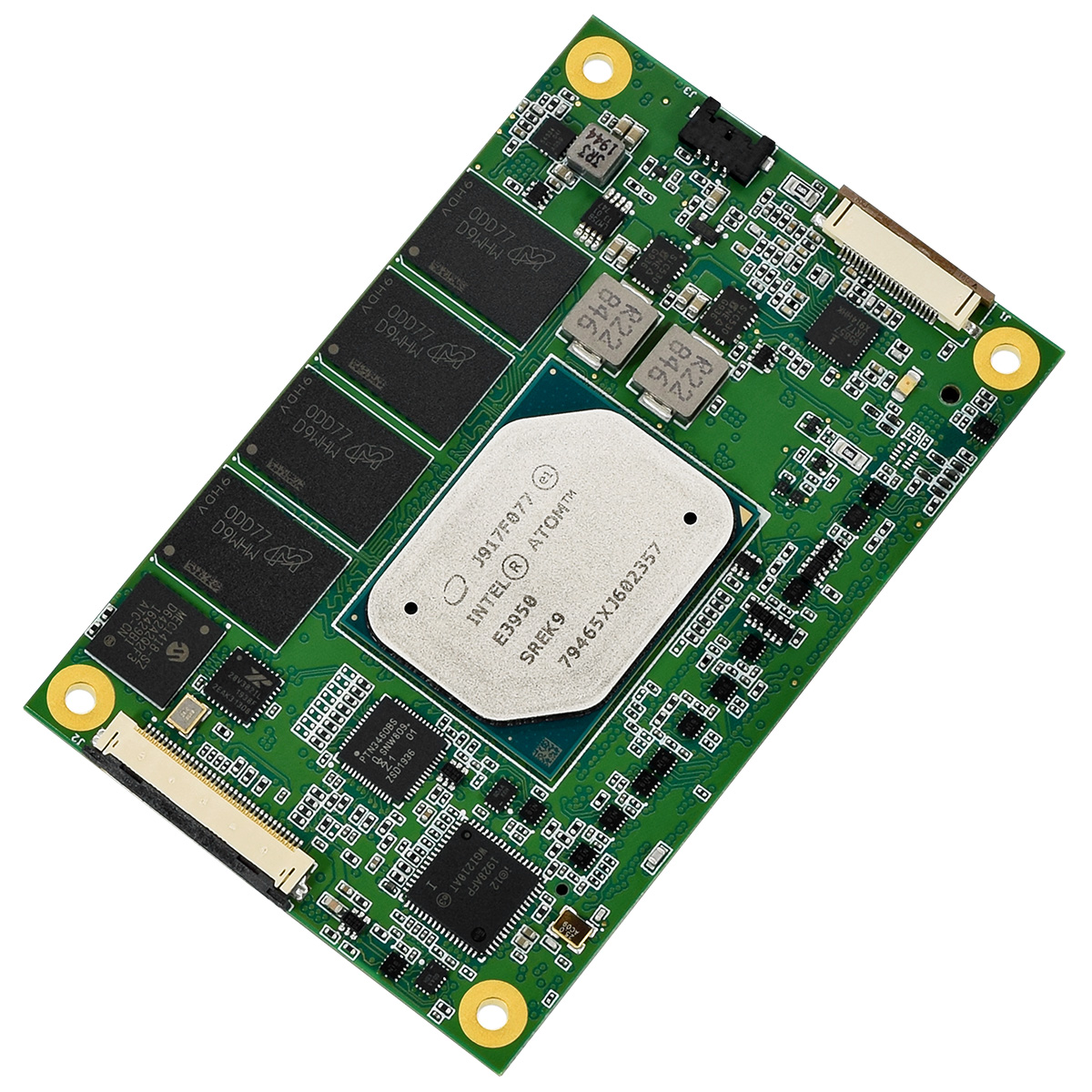

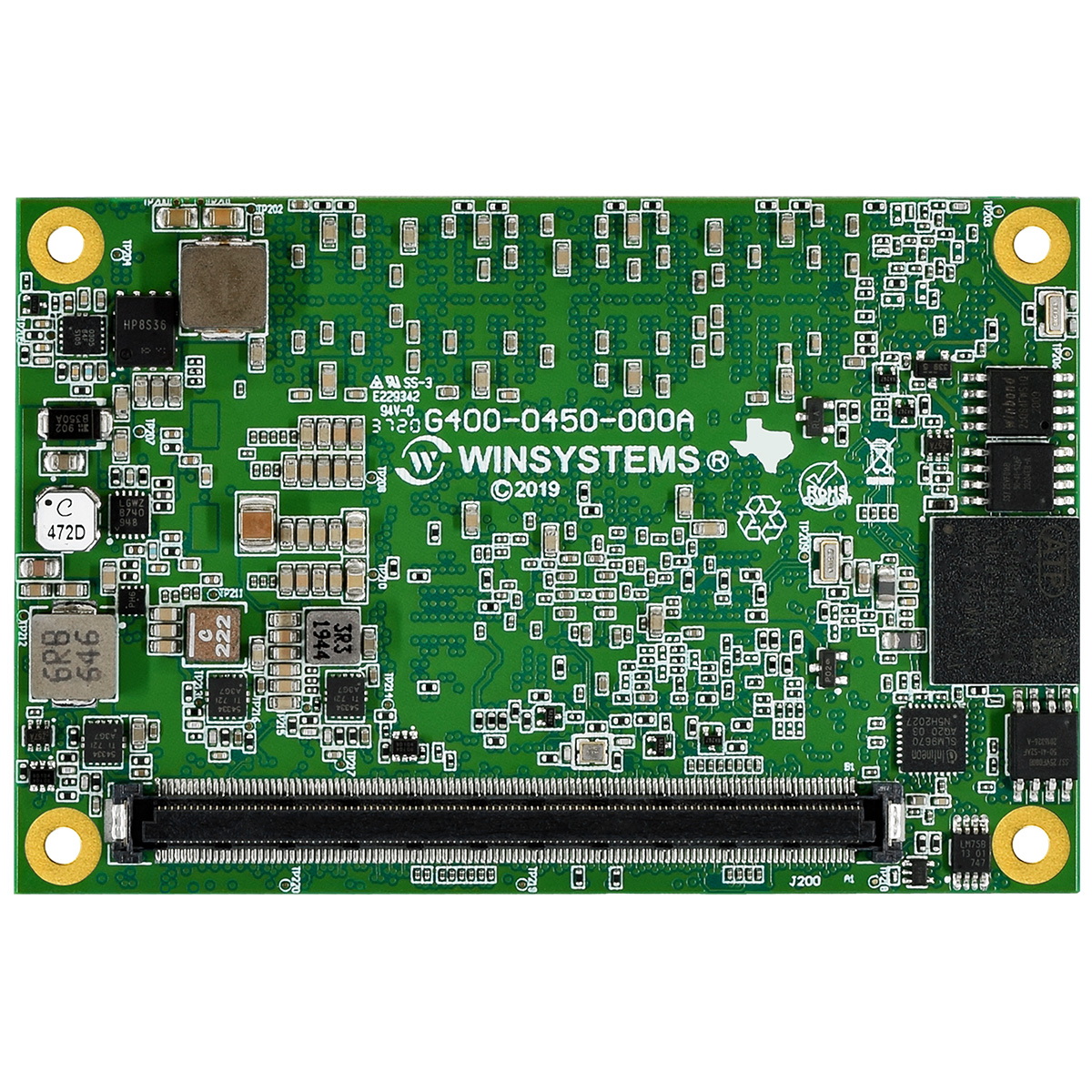

WINSYSTEMS COMeT10-3900 COM Express® Type 10 Mini Module with Intel Atom® E3900 Processor

WINSYSTEMS COMeT10-3900 COM Express® Type 10 Mini Module with Intel Atom® E3900 Processor
WINSYSTEMS COMeT10-3900 COM Express® Type 10 Mini Module with Intel Atom® E3900 ProcessorWINSYSTEMS COMeT10-3900 COM Express® Type 10 Mini Module with Intel Atom® E3900 ProcessorWINSYSTEMS COMeT10-3900 COM Express® Type 10 Mini Module with Intel Atom® E3900 ProcessorWINSYSTEMS COMeT10-3900 COM Express® Type 10 Mini Module with Intel Atom® E3900 Processor
Contact us for more information

Features

Performance for Industrial IoT
  • Intel Atom E3900 Processor, formally Apollo Lake-I
  • Up to 8GB LPDDR4 2400 MT/s System Memory
  • Intel Low Power Gen9 Graphics Engine
  • Full-HD and 3D Graphics acceleration
Security
  • On-board Discrete TPM 2.0 Hardware Security
Rugged Design
  • -40ºC to +85ºC Operating Temperature Range
  • COM Express Type 10 Mini, Small Form Factor
  • Wide Range Power Input (4.75V – 20V DC)
Expansion
  • 4x PCIe lanes configurable as 4×1 (Default), 2×1 + 1×2, or 1×4
  • 2x USB 3.1 Gen 1, 6x USB 2.0
  • 1x i210 1Gb/s Ethernet RGMII with IEEE 1588 support
  • HD Audio
  • 2x SATA III (6 Gb/s)
  • 2x UART
  • 4x GPI, 4x GPO (SDIO option for MicroSD socket)
Storage
  • On-board eMMC 5.x (8GB to 128GB)
Display
  • 1x Dual Mode Display (DisplayPort, HDMI, DVI)
  • 1x eDP (optional single-channel LVDS)
Software Support
  • Custom configurable UEFI based AMI BIOS
  • System Management Libraries and Tools
  • EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

The COMeT10-3900 is an industrial COM Express® Type 10 Mini module with an Intel Atom® E3900 processor. This low power, industrial module was designed and manufactured in the USA. The small form factor module is designed as a processor mezzanine that can be plugged onto a carrier board that contains user-specific I/O requirements.

Datasheet COMeT10-3900
