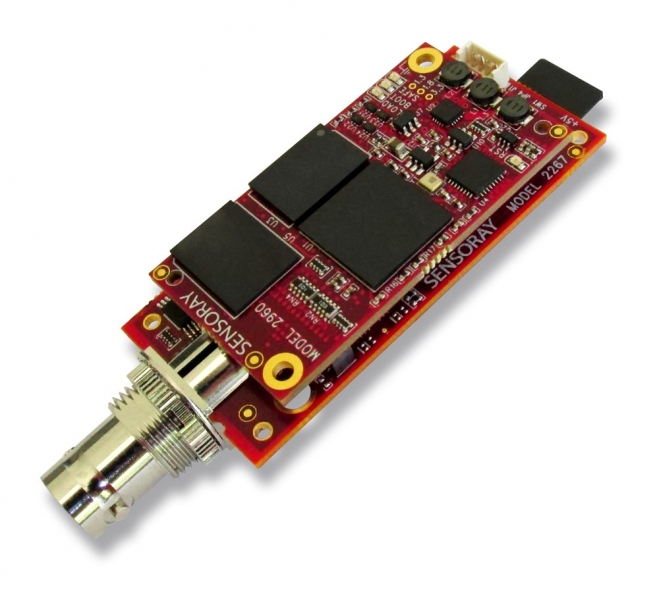

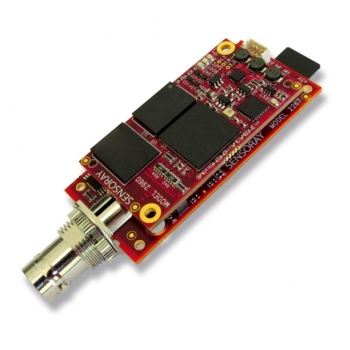

SENSORAY Model 4067 Embeddable HD-SDI Mini DVR

SENSORAY Model 4067 Embeddable HD-SDI Mini DVR


  • Captures SDI video with resolutions up to 1080p30
  • Records to microSD card
  • MIC or stereo line audio inputs
  • Clock/calendar with battery backup
  • Size: 59x27x10 mm (excluding SDI BNC connector)

Model 4067 is a compact HD digital video recorder (DVR) designed for embedded OEM applications. It captures and records SDI and HD-SDI video and stereo audio to a microSD card. Date and time are maintained by a real-time clock with battery backup. To implement a complete embedded DVR, simply connect power and provide a microSD card.

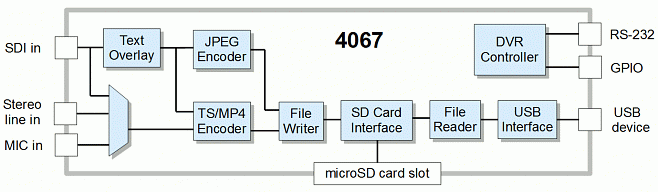

SENSORAY Model 4067 blockdiagram

Stream formats

The board captures video and compresses it to high-profile H.264. Audio from the external microphone or stereo line inputs is digitized and compressed using AAC encoding. The compressed A/V streams are multiplexed and recorded as MP4 or transport stream (.TS) files on a user-supplied microSD card, with file names automatically generated by the real-time clock. Bit rates can be tailored to match application requirements and storage capacity. The 4067 can be set up to start recording automatically after power-up.

User interface

The DVR has a device USB 2.0 port. When connected to a host computer, the 4067 behaves as a USB storage device, allowing downloading recorded videos without having to remove the microSD card, making configuration changes, and updating the firmware.

Input SDI, HD-SDI, up to 1080p30
Inputs Line, stereo
Mono microphone
Recorded formats
Resolution 1920 x 1080 @ 30 fps
Video compression H.264, HP @ L3
Audio compression AAC
Output file formats MP4, TS
Interface USB 2.0, device
Power 5 V DC, 2.5 W max
Operating temperature -20 to 70 °C (active cooling may be required)
Mechanical dimensions 59.4 x 26.9 x 10.4 mm (excluding SDI connector)
