WINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansion

WINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansion
WINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansionWINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansionWINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansionWINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansionWINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansionWINSYSTEMS PPC3-6.5-407 6.5" Touch Panel PC with Intel E3800 and PC104-Plus expansion
Contact us for more information

Features

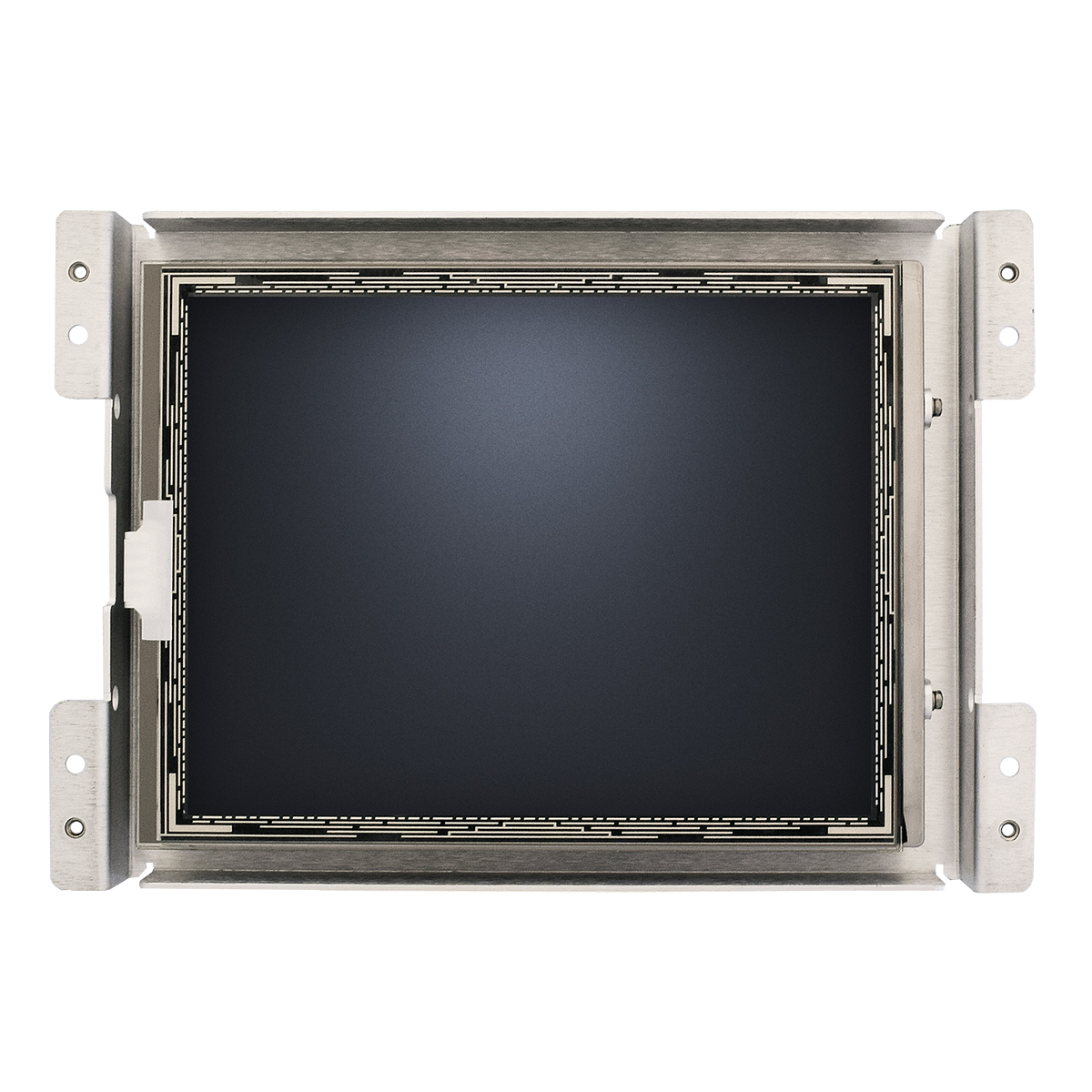

  • Compact LCD Panel
    • 6.5-inch TN LCD panel
    • Brightness up to 700 nits (cd/m2)
  • Performance for Industrial IoT Applications
    • Intel® Atom™ E3800 PC/104-Plus Processor
    • Up to 4 GB Soldered Down DDR3L System RAM
  • Rugged Design for Demanding Environments
    • -30°C to +85°C Operating Temperature Range
    • PC/104-Plus Small Form Factor SBC
  • Fast Graphics at High Resolutions
    • Intel® Gen7 Graphics Engine
    • Multiple Displays Supported
  • Secure and Trusted Data
    • Intel Security Engine
    • Cryptographic Acceleration
  • Connectivity and I/O for Embedded Systems
    • Ethernet
    • 2x USB 2.0
    • 24 GPIO with Event Sense
    • Four Serial Ports
  • Expansion Options
    • PC/104-Plus (PC/104 and PCI-104)
    • MiniPCIe/mSATA Sockets

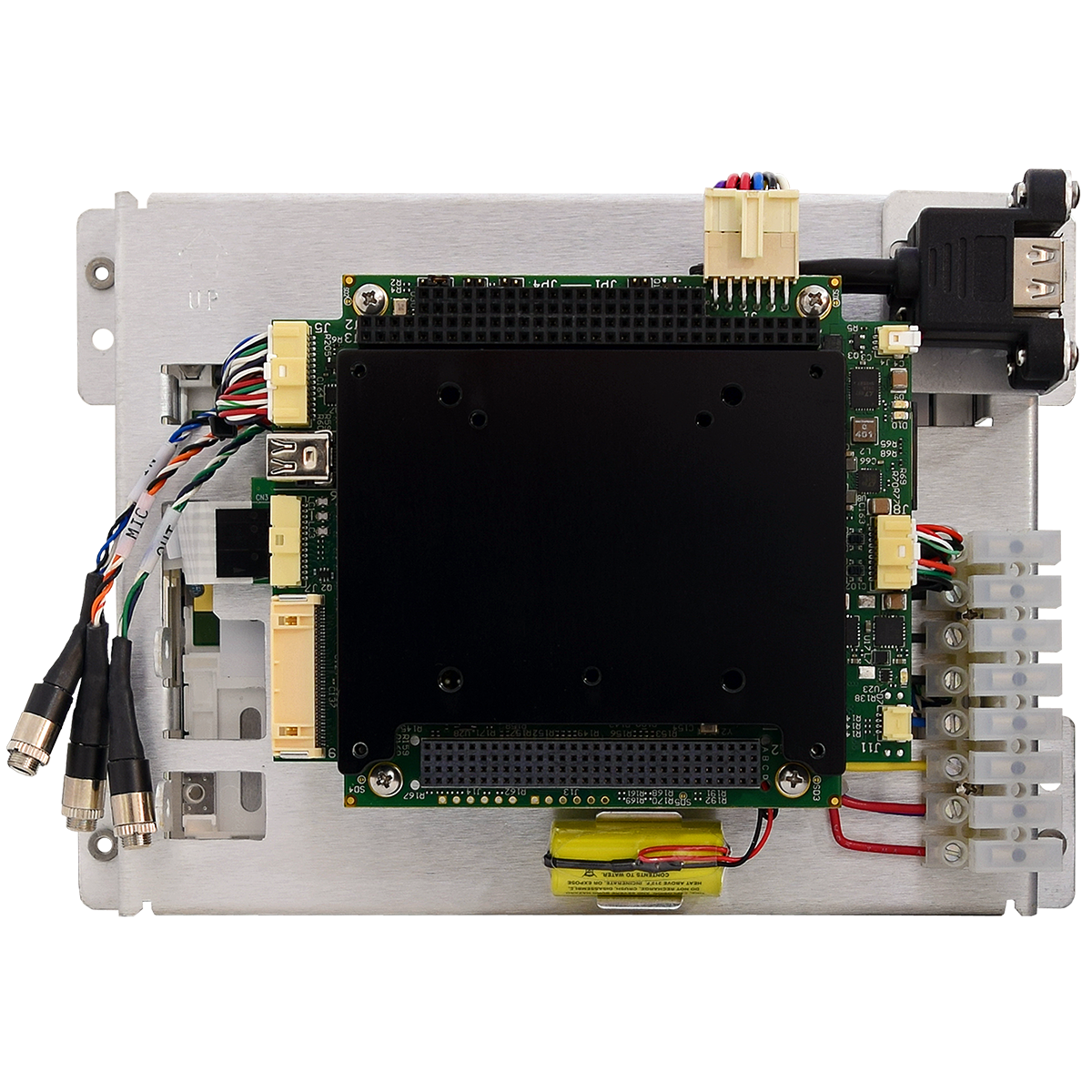

The PPC3-6.5-407 from WINSYSTEMS utilizes the E3800 family of Atom™ processors from Intel® to provide low power and high performance in a compact 6.5-inch Panel PC. Designed for harsh environments and reliability, the design includes a sunlight-readable display and soldered RAM for added shock and vibration resistance with operating temperature ranges available from -30°C to +85°C.

This industrial Panel PC is a full-featured embedded system with a variety of onboard I/O options. It’s available in multi-core options to fit a variety of application requirements, offering scalable performance options including single, dual or quad-core processing. Each processor option is available with 2G or 4G of soldered DDR3 memory and optional stack-through PC/104-Plus connectors.

Datasheet PPC3-6.5-407
