WINSYSTEMS PPC65BP-1x

WINSYSTEMS PPC65BP-1x
WINSYSTEMS PPC65BP-1xWINSYSTEMS PPC65BP-1xWINSYSTEMS PPC65BP-1x
Contact us for more information

Features

  • Performance for Industrial IoT Applications
    • 1.9 GHz Quad-Core Intel® Atom™ E3845 processor
    • Up to 8 GB of RAM
    • Supports Linux, Windows 10 Operating Systems
  • Rugged Design for Demanding Environments
    • IP65-compliant fanless panel PC

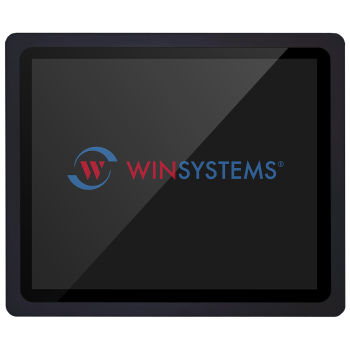

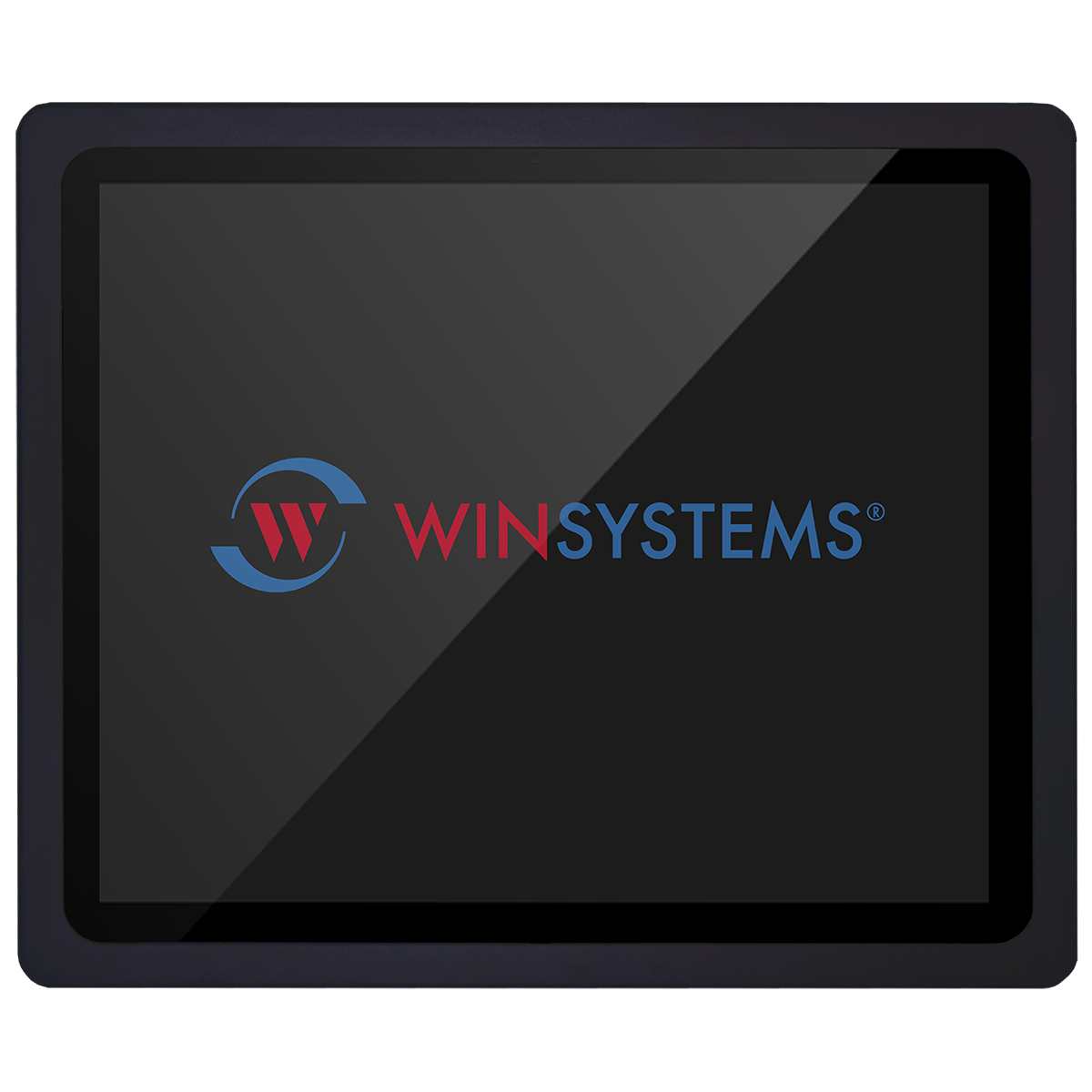

    • Front display sealed against water and dust

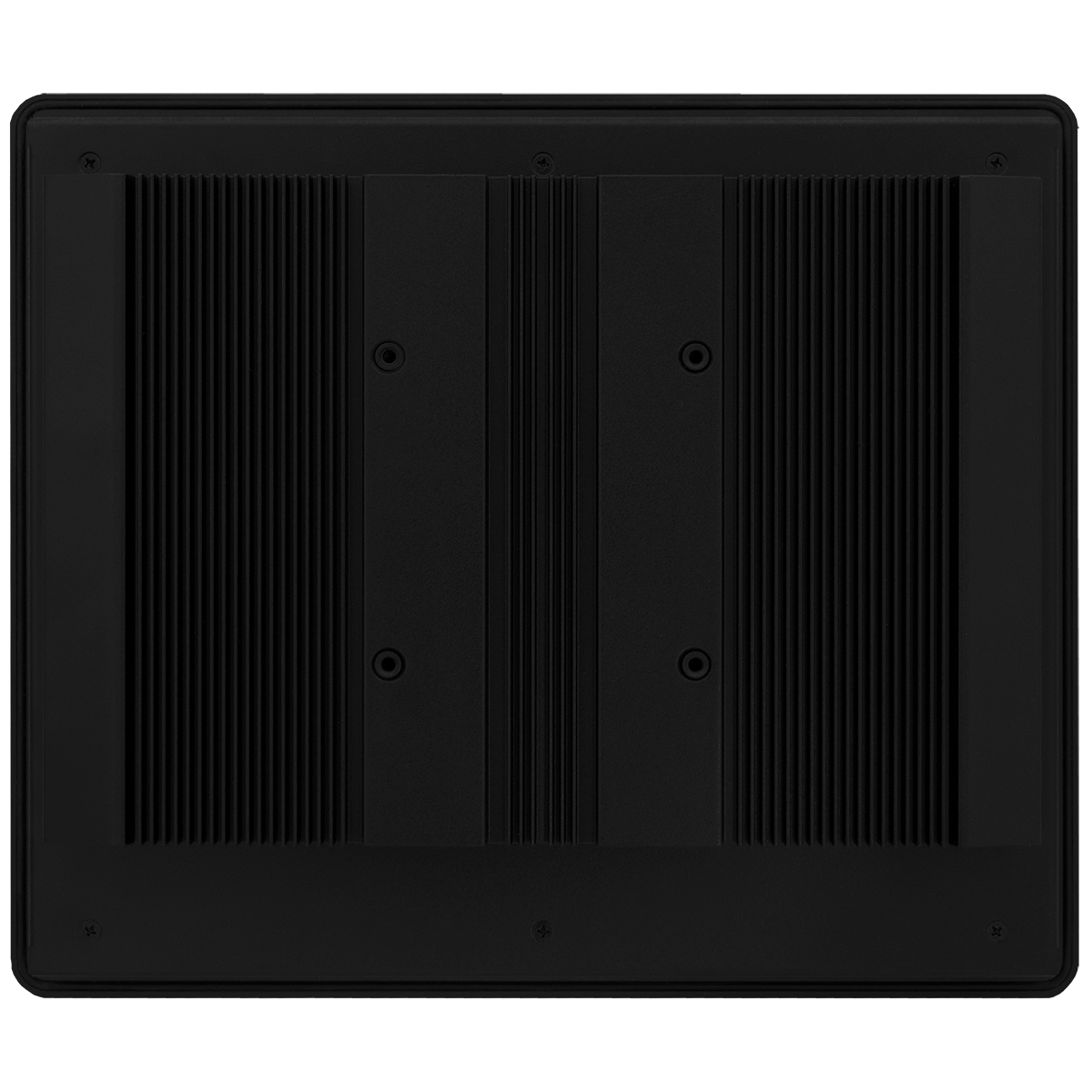

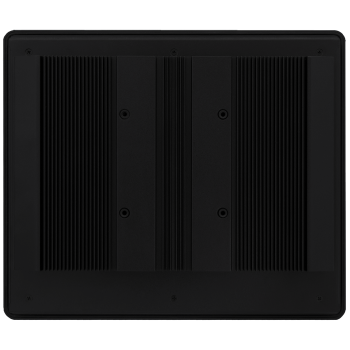

    • Panel or VESA mounting configurations
    • -25°C to +70°C operating temperature range
    • SATA controller with 2.5-inch HDD/SSD
    • Wide input power: 12-24V DC
  • Fast Graphics at High Resolutions
    • Projective capacitive multi-touch screen
    • Resolution: 1024 x 768 / 1280 x 1024

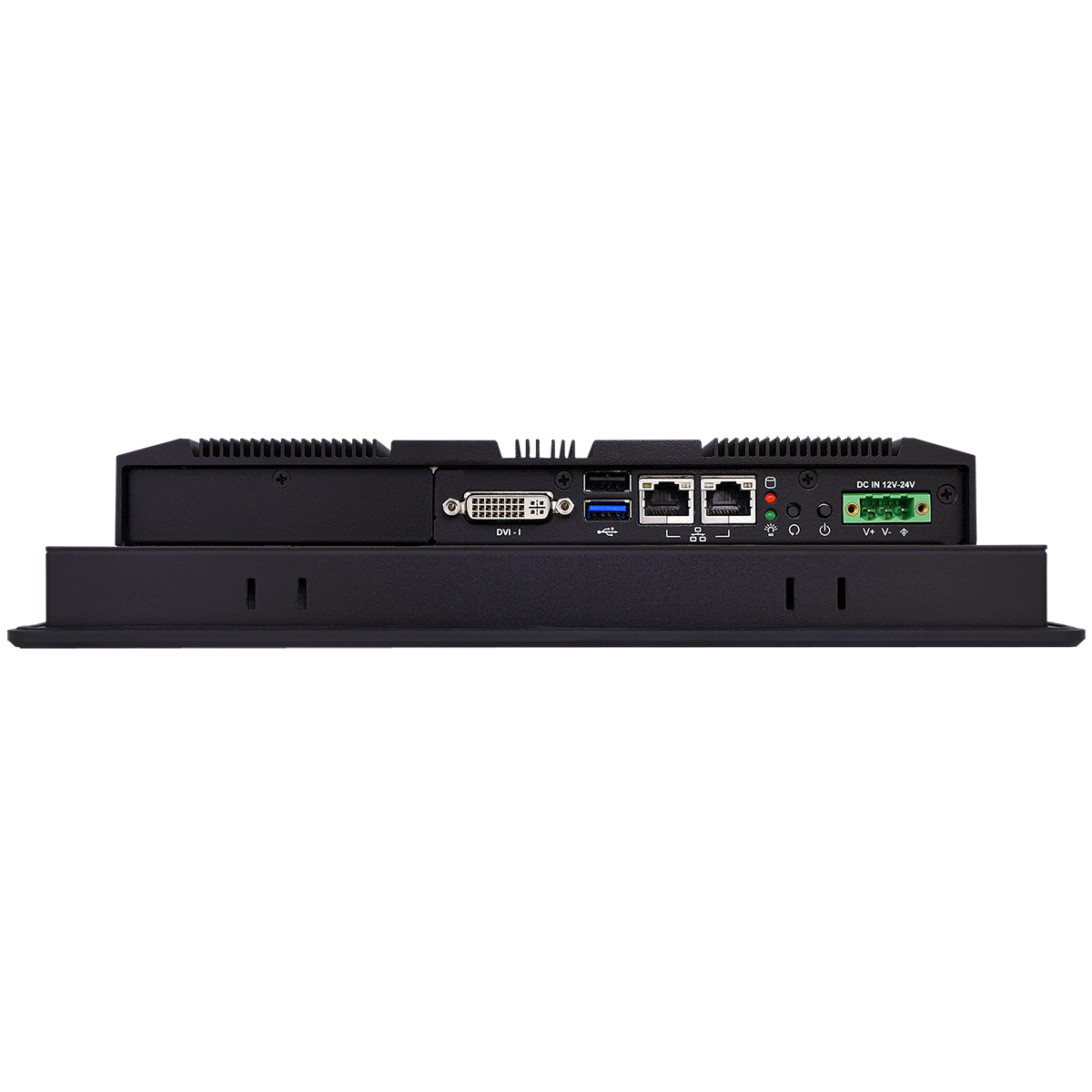

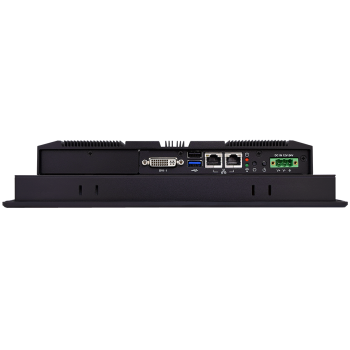

  • Connectivity and I/O for Embedded Systems
    • 2x Gigabit Ethernet ports
    • 1x USB 2.0 port (up to 3x with expansion)
    • 1x USB 3.0 port
    • Watchdog timer
  • Expansion Options
    • 2x RS-232/422/485 plus 2x USB (default)
    • 2x RS-232/422/485 plus 1x RS-232 (optional)
    • 1x line-out, 1x RS-232/422/485 plus 2x USB (optional)

WINSYSTEMS’ PPC65BP-1x Panel PC Series is IP65-certified and optimized for use in demanding market applications including industrial machinery, utilities, petroleum, transportation, pipeline and food processing, wherever there is a need for tight system integration in a minimal footprint.

High performance embedded applications will benefit from the PPC65BP-1x’s 1.9 GHz Quad-Core Intel. Atom™ E3845 processor. The panel PC is designed and engineered to operate without a fan—even with the quad-core processor—resulting in quieter operation, lower maintenance, and increased product service life.

The PPC65BP-1x is available in 5 screen sizes: 10.4″, 12.1″, 15″, 17″, and 19″. Technical specifications for all size options are available on the product datasheet.

Datasheet PPC65BP-1x
