WINSYSTEMS PPC12-427

WINSYSTEMS PPC12-427
WINSYSTEMS PPC12-427WINSYSTEMS PPC12-427WINSYSTEMS PPC12-427
Contact us for more information

Features

  • Graphics for Digital Signage and Kiosk Applications
    • 12-in. Panel PC with Projected Capacitive Multi-touch Screen
    • Supports up to two additional Displays
    • 2x DisplayPort with 4K Resolution
  • Performance for Industrial IoT Edge Computing
    • Intel Apollo Lake-I E3900 Processor (Dual or Quad-core)
    • Up to 8GB DDR3L ECC System Memory
    • Up to 2.0GHZ CPU Clock Rate
    • Time-Coordinated Computing
    • Soldered down TPM 2.0 Hardware Security Enabled
    • 10+ Year Availability
  • Rugged Design for Demanding Environments
    • -30°C to +85°C Operating Temperature Range
    • Wide Range Power Input (10 – 50 V DC)
    • IP65-Rated, Front Panel and Bezel

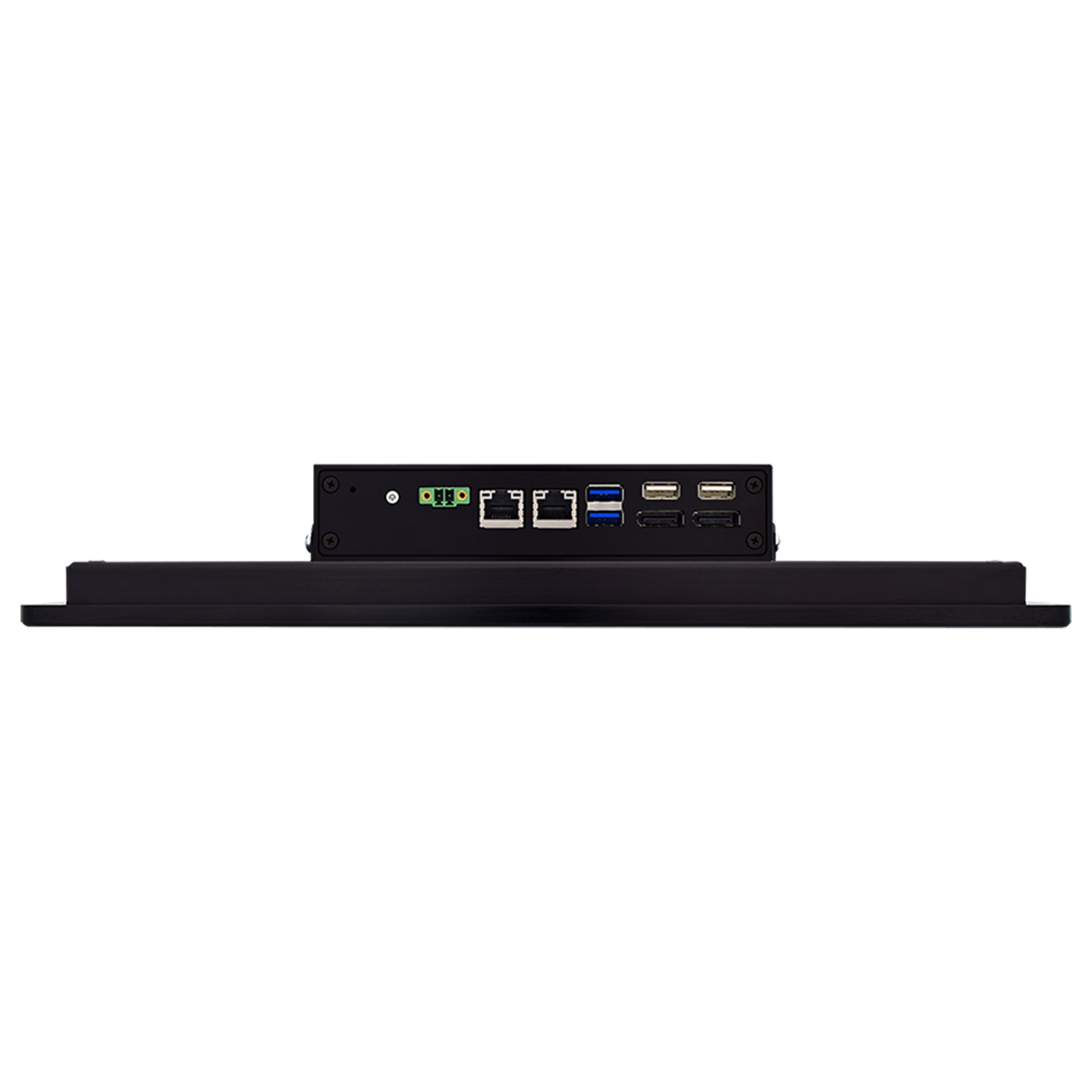

  • Connectivity and I/O for Embedded Data Acquisition
    • 2x Gigabit Ethernet
    • 2x USB 3.1 Gen 1 and 4x USB 2.0
    • 8x General Purpose Input/Output (GPIO)
    • 2x channel Analog-to-Digital (ADC)
    • 3x Serial Ports
    • HD Audio
  • Storage
    • eMMC
    • SATA with SATA Power
    • mSATA
  • Expansion and Configuration Options for Semi-Custom Solutions
    • Mini-PCI Express
    • M.2 E-Key 2230 Form Factor
    • WINSYSTEMS’ Modular IO80 Expansion

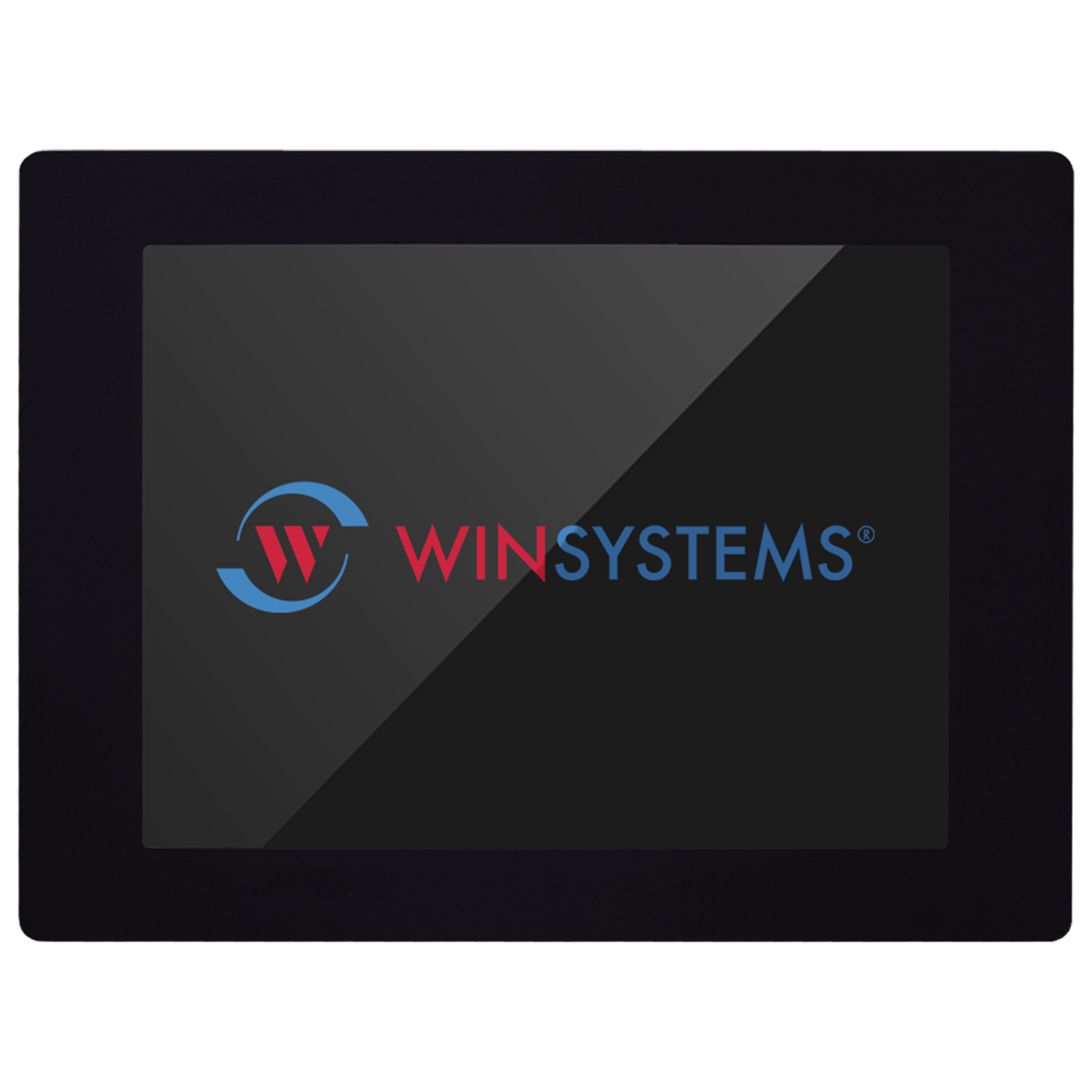

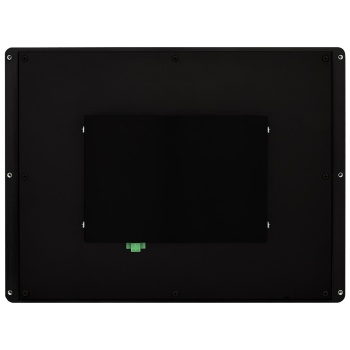

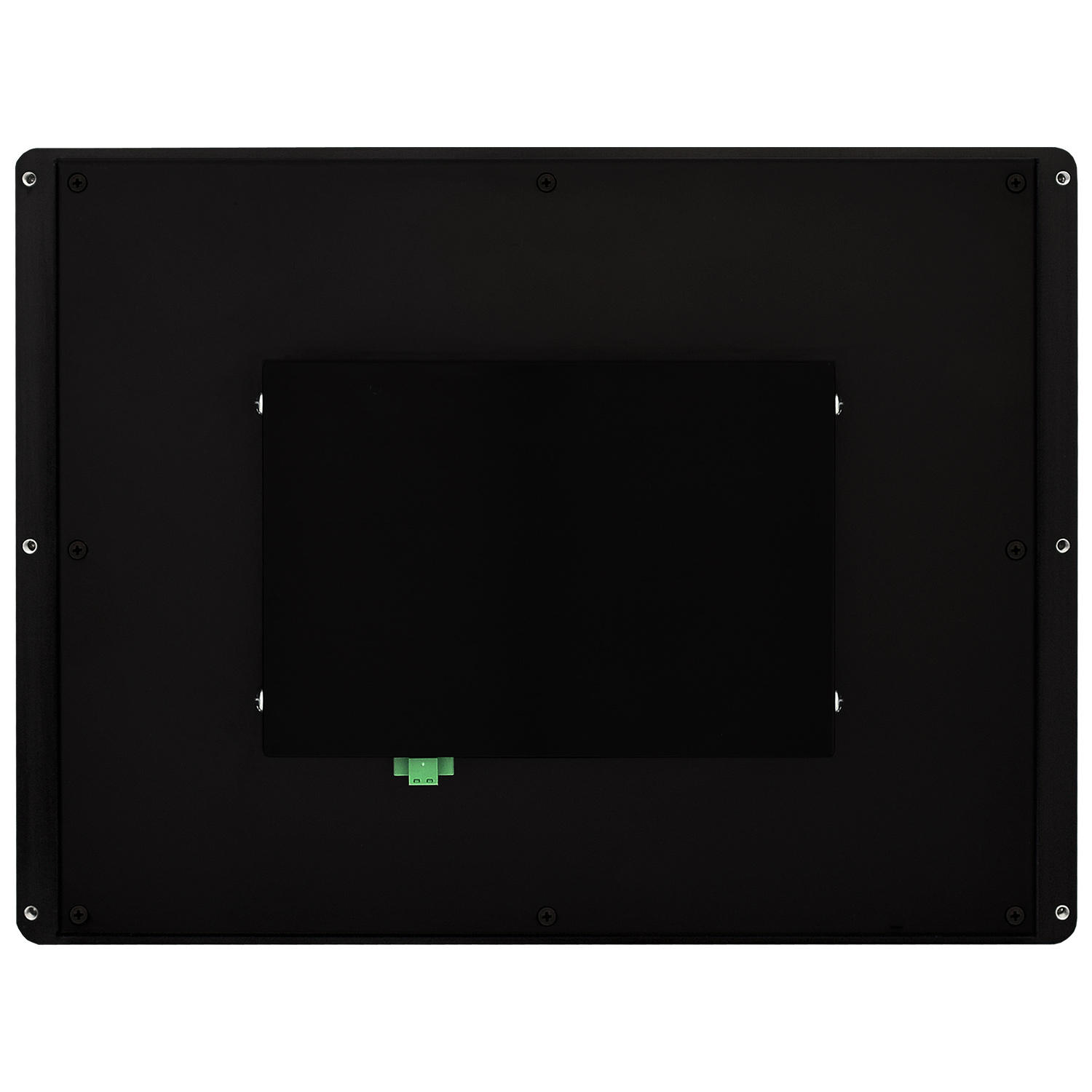

WINSYSTEMS’ PPC12-427 is a fanless, 12.1-inch panel PC featuring the latest generation Intel Apollo Lake-I SOC processor. Its small size, low power, extended operational temperature, and IP65 rating make it a great fit for harsh environments in the industrial control, transportation, energy, and industrial IoT markets.

Datasheet PPC12-427
