Features
- Universal AC input: 88 to 264 VAC
- Output voltage: +5V @ 10A full load
- No fan required, convection cooling
- Short circuit protection
- Overload and overvoltage protection
- Withstands 300 VAC input surge for 5 seconds
- Complies with safety, EMI, and EMS standards
- Power-on LEDs provide visual status of power

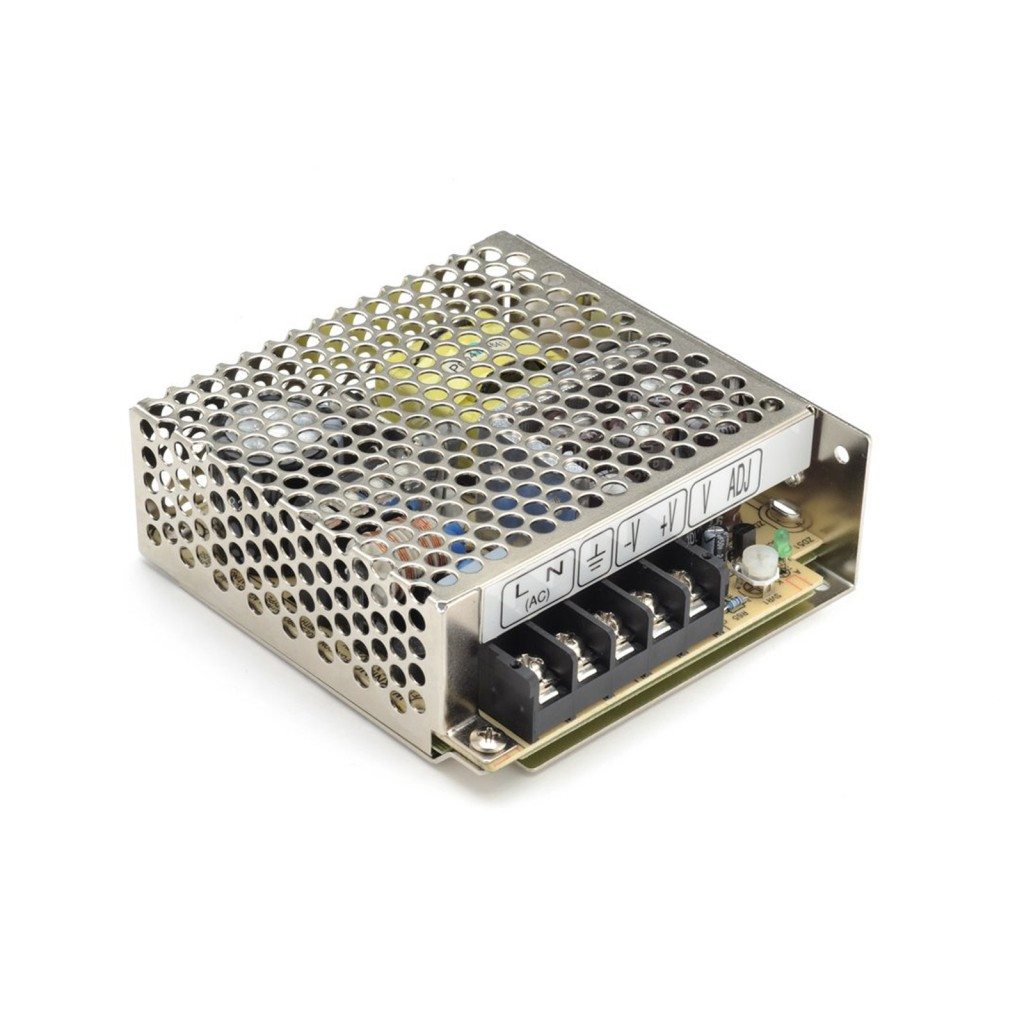

WINSYSTEMS’ PS-RS50-5 is a small, convection cooled 50W power supply for embedded systems. It is a universal design that accepts 88 to 264VAC input and generates up to 10A of current at +5 volts. The +5 volt output can be adjusted with an on board trimpot. The PS-RS50-5 is small, measuring only 99 x 97 x 36mm.
Datasheet PS-RS50-5
