WINSYSTEMS SYS-ITX-N-3900 Industrial Embedded Computer with Intel® Atom™ E3900 Processor

WINSYSTEMS SYS-ITX-N-3900 Industrial Embedded Computer with Intel® Atom™ E3900 Processor
WINSYSTEMS SYS-ITX-N-3900 Industrial Embedded Computer with Intel® Atom™ E3900 ProcessorWINSYSTEMS SYS-ITX-N-3900 Industrial Embedded Computer with Intel® Atom™ E3900 Processor
Contact us for more information

Features

  • Intel® Apollo Lake E3950/E3940 Processor
  • Two 10/100/1000 Mbps Ethernet Ports
  • DisplayPort and VGA outputs for dual displays
  • Up to 8GB DDR3-LV RAM
  • TPM 2.0 onboard
  • 2 USB 3.0
  • 1 Serial Port (RS-232/422/485)
  • Audio Output
  • 1 MiniPCIe Socket with MSATA support
  • 1 M.2 Socket, with E key, type 2230
  • One SATA 3.0 ports and 1 Micro SD for storage
  • -20°C to +60°C Operational Temperature

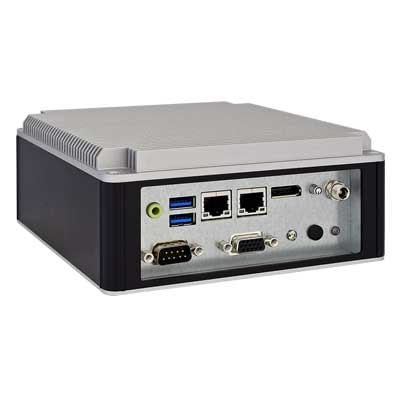

WINSYSTEMS’ SYS-ITX-N-3900 is an Industrial Embedded Computer (SBC) based on the Intel® Atom™ E3900 Apollo Lake processor family. It uses less than 12 watts for fanless applications and performs reliably in industrial operating temperatures ranging from -20º to +60ºC. It includes a SODIMM socket supporting up to 8 GB of DDR3 system memory and internal mounting support for one 2.5” SATA HDD/SSD. Additional expansion is available through MiniPCIe.

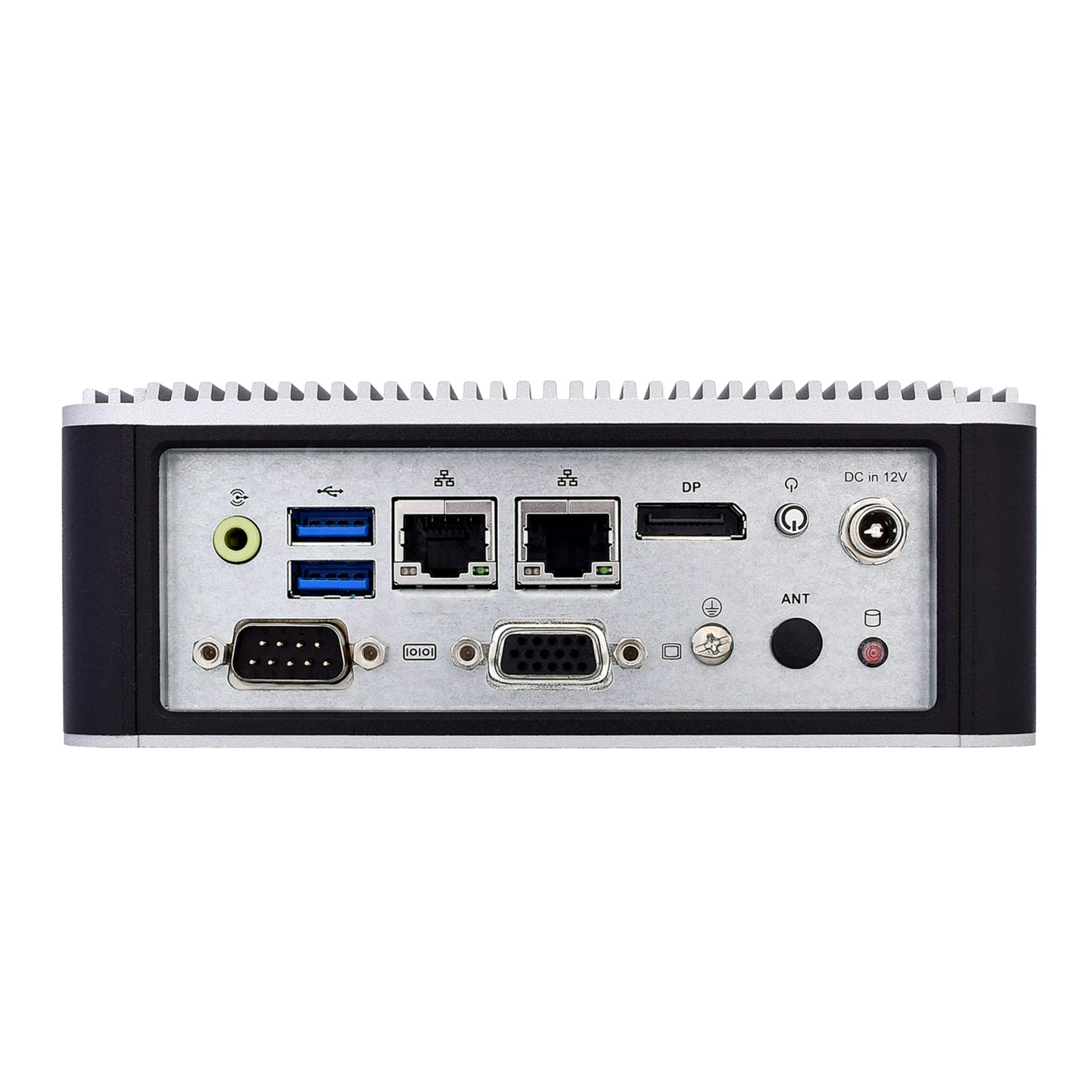

The SYS-ITX-N-3900 is a full-featured fanless embedded computer with onboard I/O that simultaneously supports VGA and DisplayPort video, dual Gigabit Ethernet ports, two USB 3.0 ports, one serial RS-232/422/485 port, audio, and watchdog timer. It also has a half-size MiniPCIe socket and an antenna hole for WiFi or 3G/GPS module.

This embedded computer supports Linux, Windows® 10 Desktop, Windows 10 IoT, and other x86-compatible real-time operating systems. Drivers are available from the WinSystems website. The SYS-ITX-N-3900 is designed for long-term availability and is FCC- and CE-certified, and designed for industrial IoT, medical, communications and digital signage applications.

Datasheet SYS-ITX-N-3900
