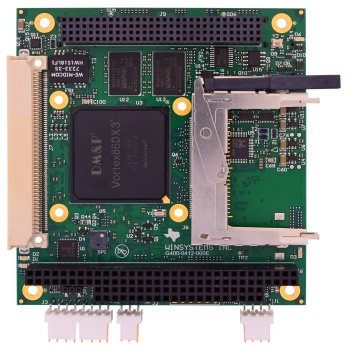

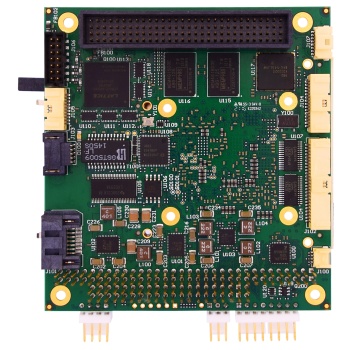

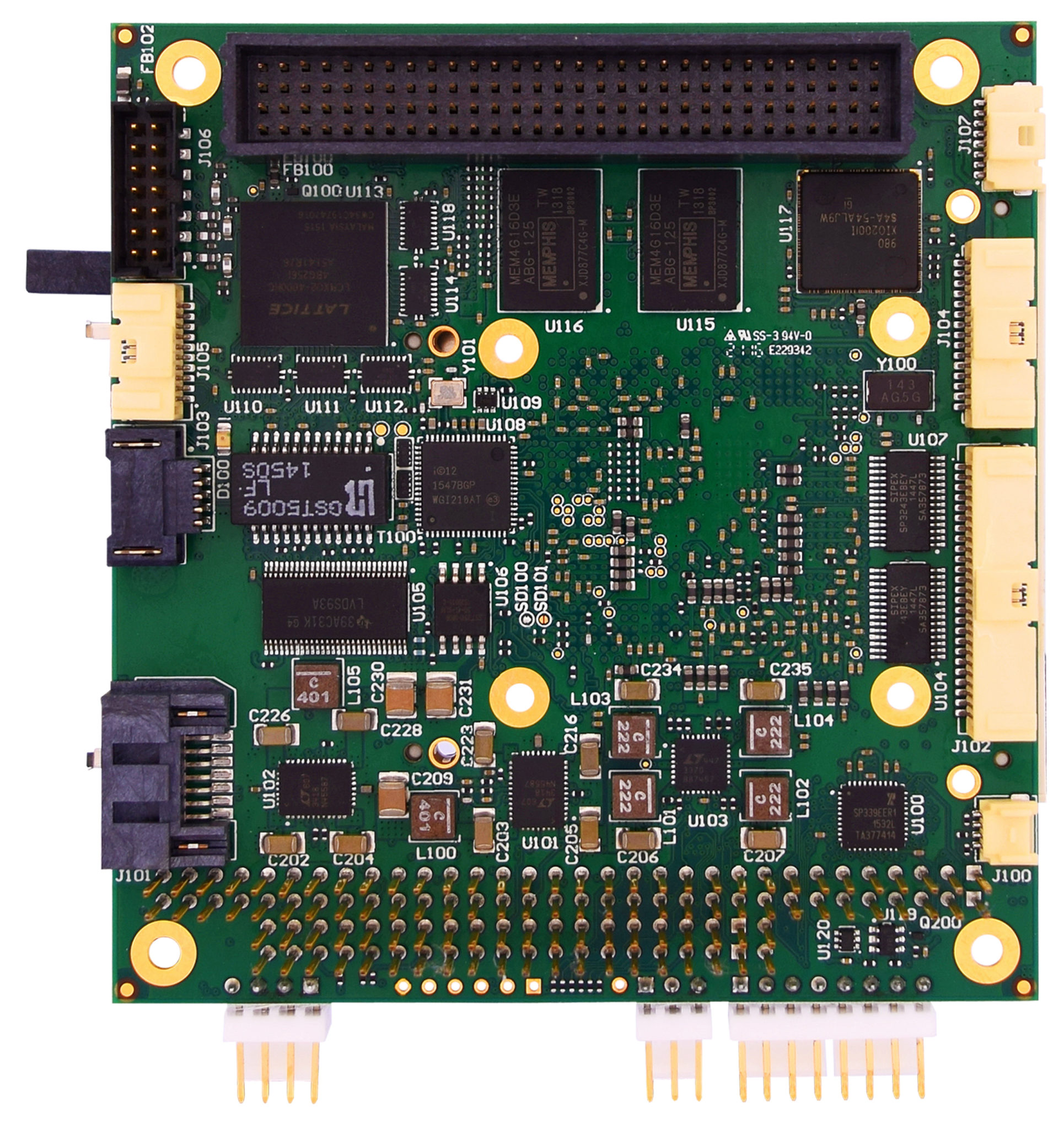

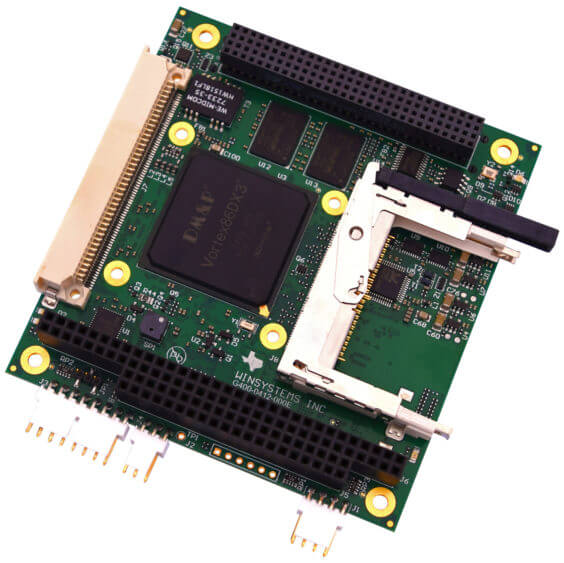

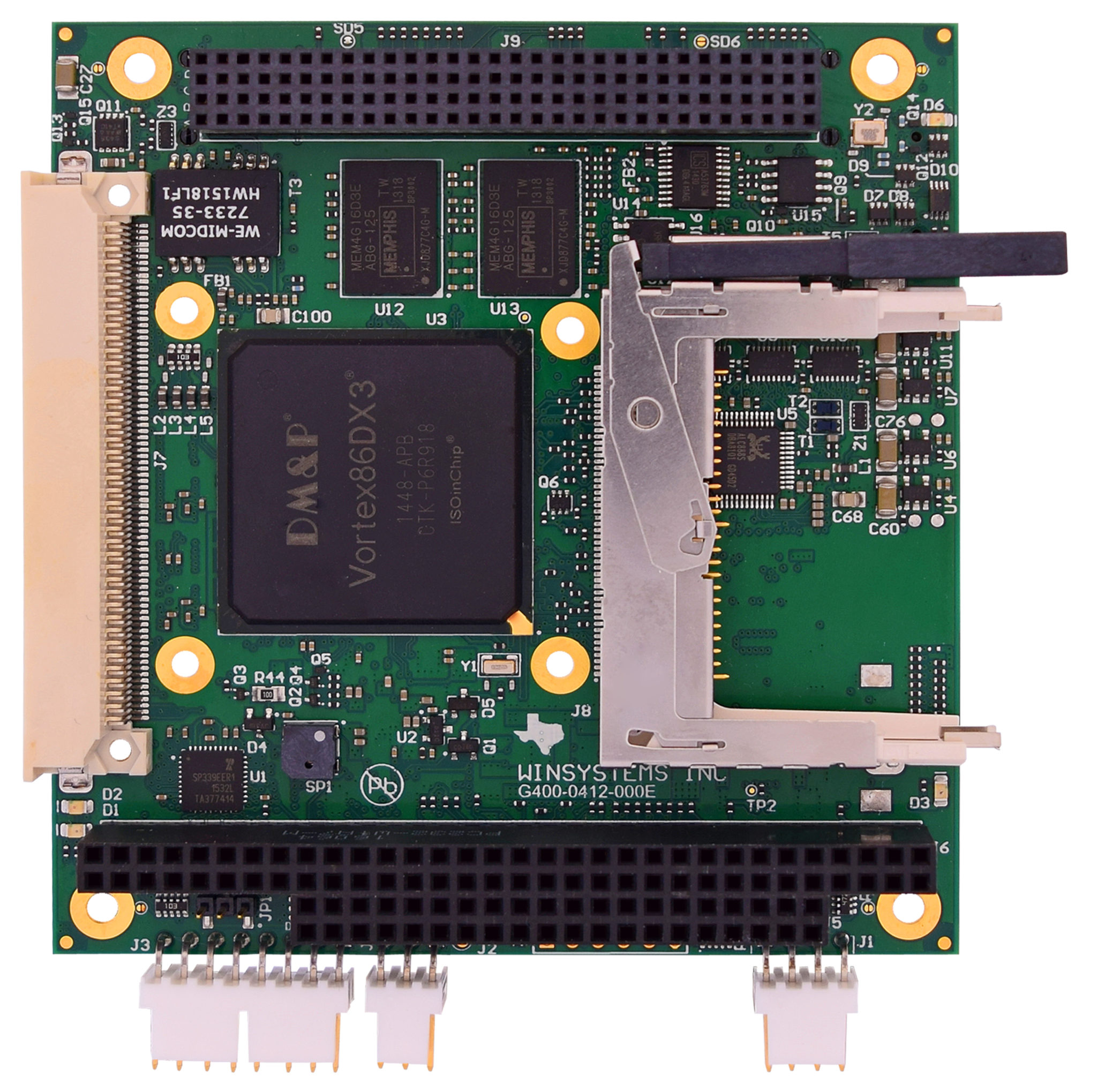

WINSYSTEMS PPM-C412 PC104-Plus VortexDX3 SBC Dual Ethernet

WINSYSTEMS PPM-C412 PC104-Plus VortexDX3 SBC Dual Ethernet
WINSYSTEMS PPM-C412 PC104-Plus VortexDX3 SBC Dual EthernetWINSYSTEMS PPM-C412 PC104-Plus VortexDX3 SBC Dual EthernetWINSYSTEMS PPM-C412 PC104-Plus VortexDX3 SBC Dual Ethernet
Contact us for more information

Features

  • Performance for Industrial IoT Applications
  • 1 GHz DMP Vortex86DX3 Processor (Dual core) CPU
  • 2 GB DDR3-LV System RAM
  • Low Power
  • 10 Year Availability
  • Rugged Design for Demanding Environments
  • -40°C to +85°C Operating Temperature Range
  • PC/104-Plus Small Form Factor
  • Shock and Vibration Tested
  • Connectivity and I/O for Embedded Systems
  • Dual Ethernet (1x Fast Ethernet, 1x Gigabit)
  • 4x USB 2.0
  • 24x GPIO 5V with Event Sense
  • 4x Serial Ports (2x RS-232, 2x RS-232/422/485)
  • Parallel Port LPT
  • Audio
  • Graphics Support
  • Dual video output (VGA, LVDS with digital backlight dimmer)

WINSYSTEMS’ PPM-C412 single board computer (SBC) is a PC104-Plus form factor SBC featuring the latest generation DMP® Vortex86DX3® SOC processor. Its small size, low power, rugged design, and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.

Datasheet PPM-C412
