Features
Performance
- NXP. i.MX8M Industrial Processor @ 1.3 GHz
- Dual and Quad Arm. Cortex.-A53
- Cortex-M4 core processor for low-power processing
- Up to 4GB LPDDR4 RAM
Environment
- -40°C to +85°C Operating Temperature Range
- Pico-ITX Form Factor (102 x 73 mm)
- Wide Range Power Input (9 – 36 DC)
Connectivity and I/O for Embedded Systems
- 2x Gigabit Ethernet (GbE)
- 1x USB 3.1 Gen 1
- 3x USB 2.02x RS-232/422/485 Serial ports
- 6x General Purpose Input/Output (GPIO)
- 1x MIPI-CSI (4-Lanes)
- 1x SPI bus
- 1x I2C bus
- HD Audio Interface
Graphics Support
- HDMI output with 4K UltraHD resolution and
HDR capability
- Single-channel LVDS output with backlight
Storage
- Up to 32GB onboard eMMC
- MicroSD Socket
Expansion Options

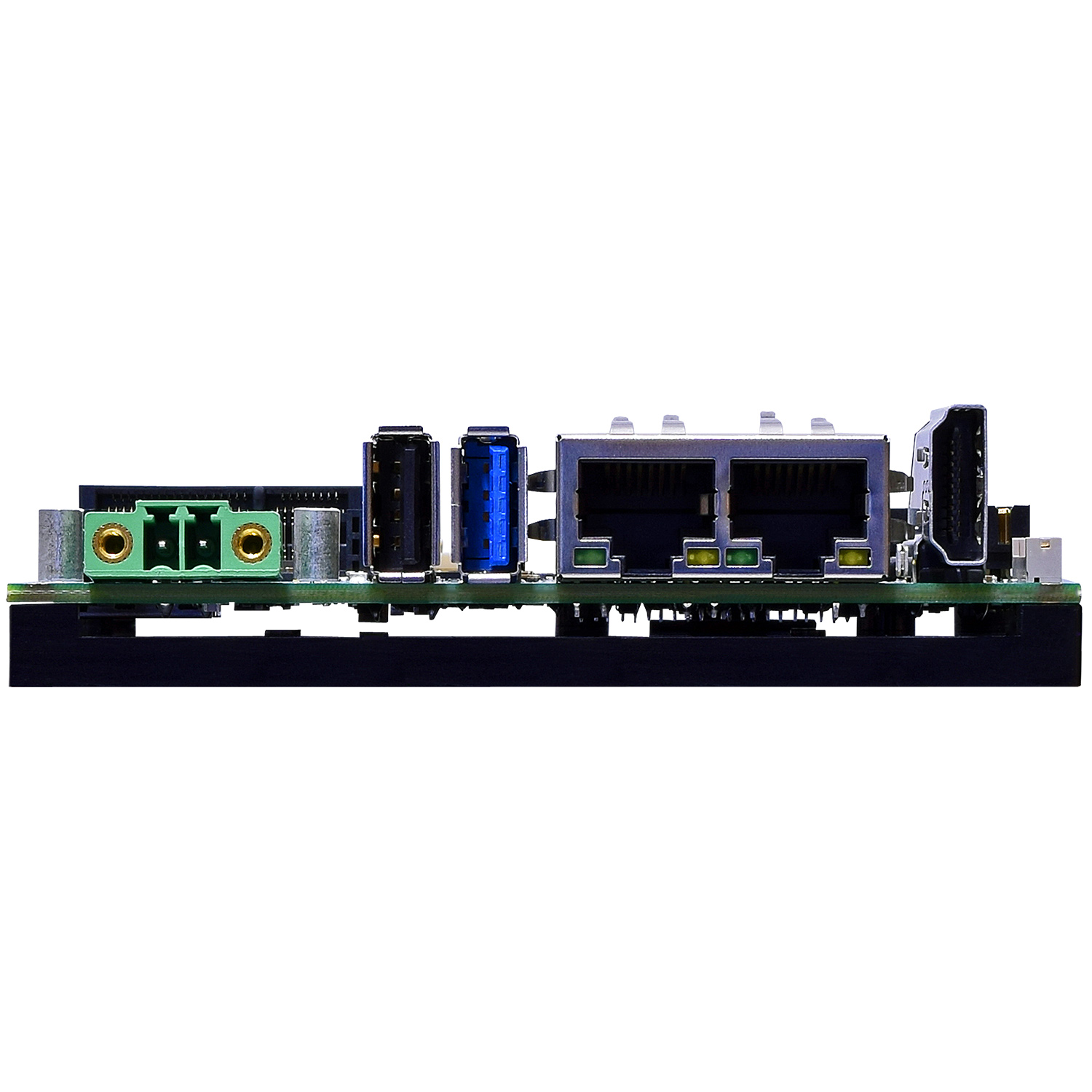

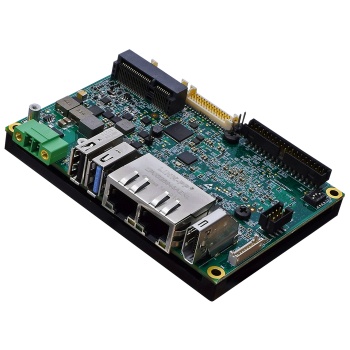

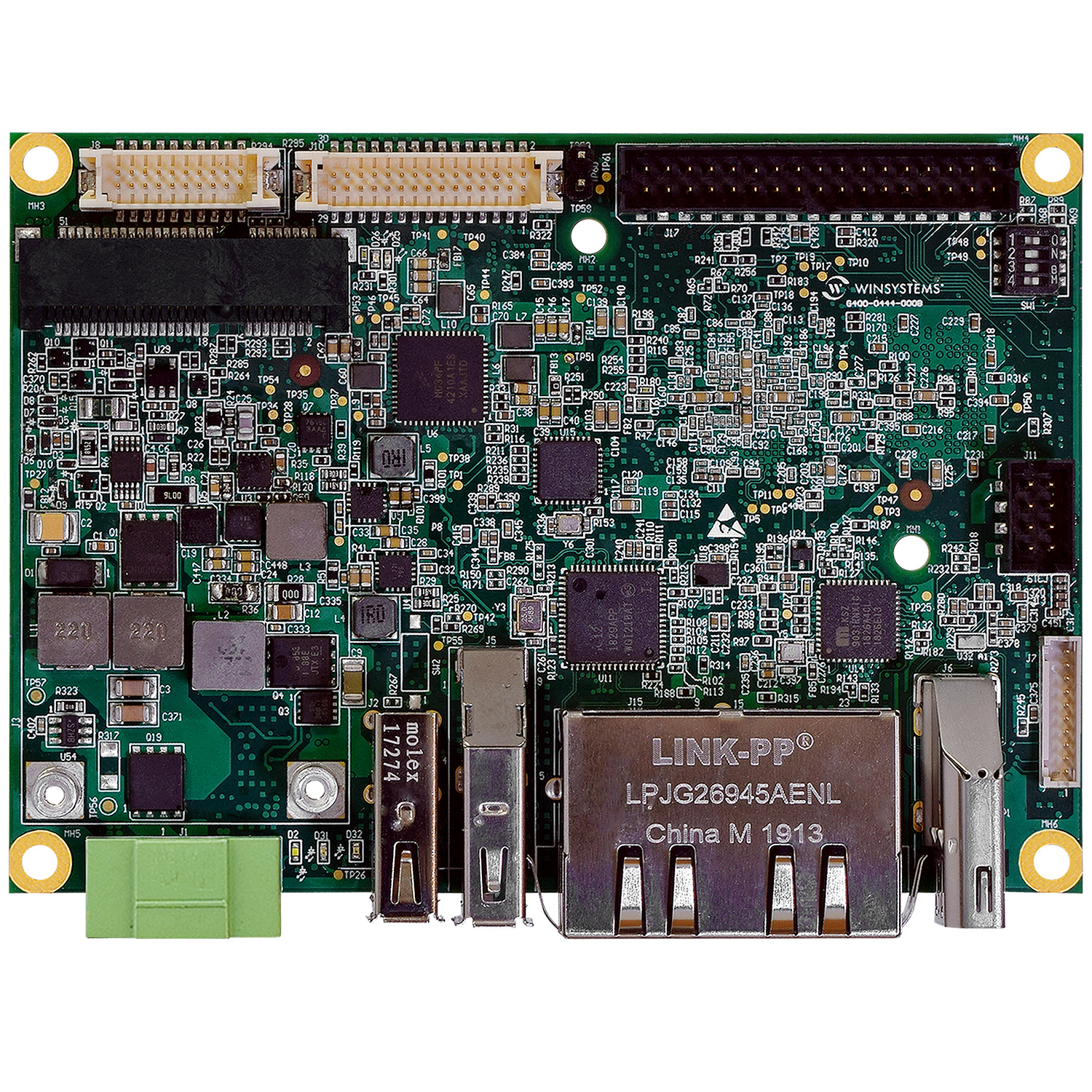

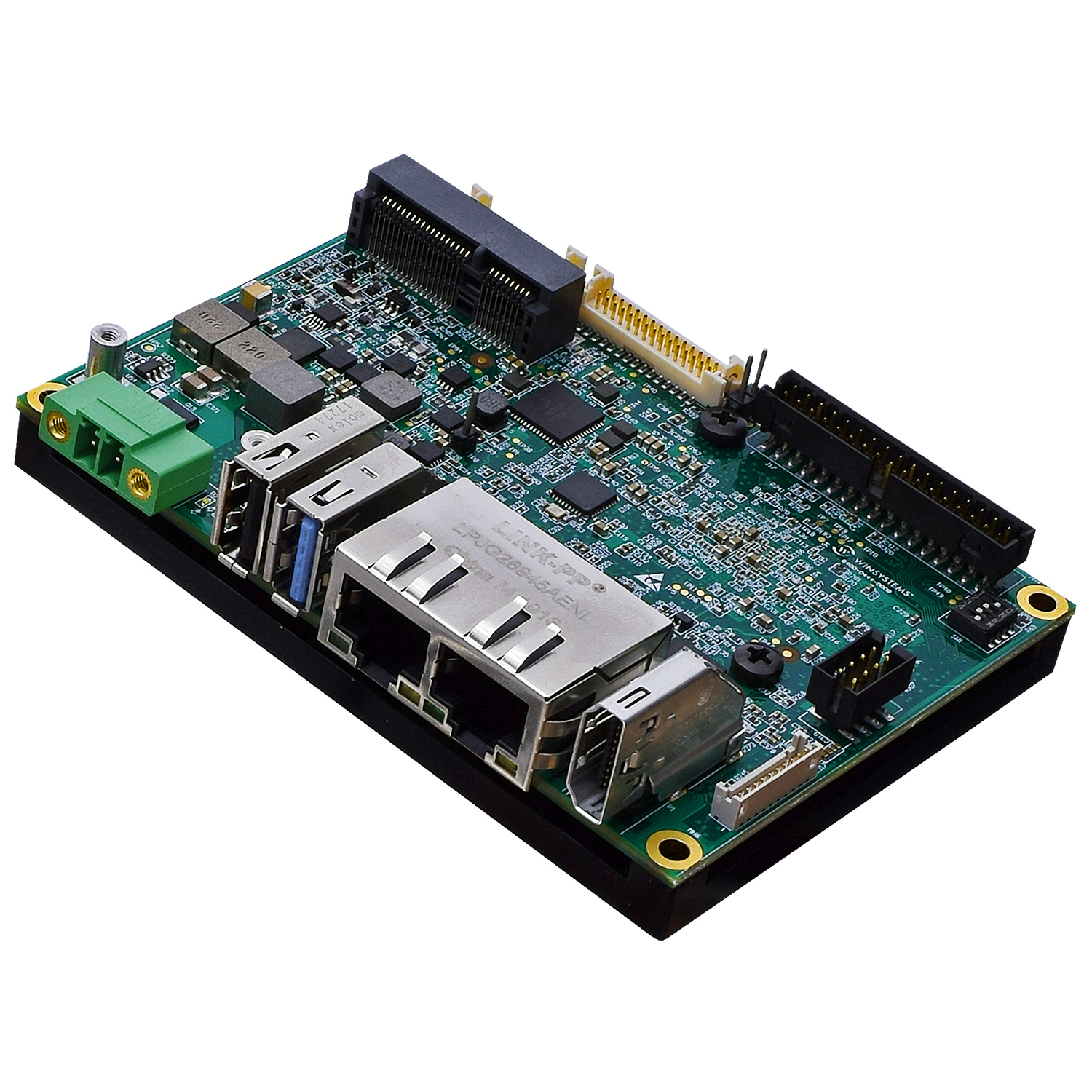

The ITX-P-C444 is an industrial Pico-ITX single board computer (SBC) based upon NXP’s i.MX8M application processor and packed with dual Ethernet, industrial I/O, and expansion options. The processor supports industry-leading video processing along with M4 microcontroller for real-time subsystems making it an ideal fit for industrial IoT applications requiring performance in harsh conditions such as digital signage, industrial automation, energy, building automation and others.
Datasheet ITX-P-C444
