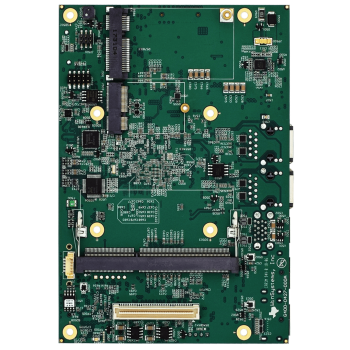

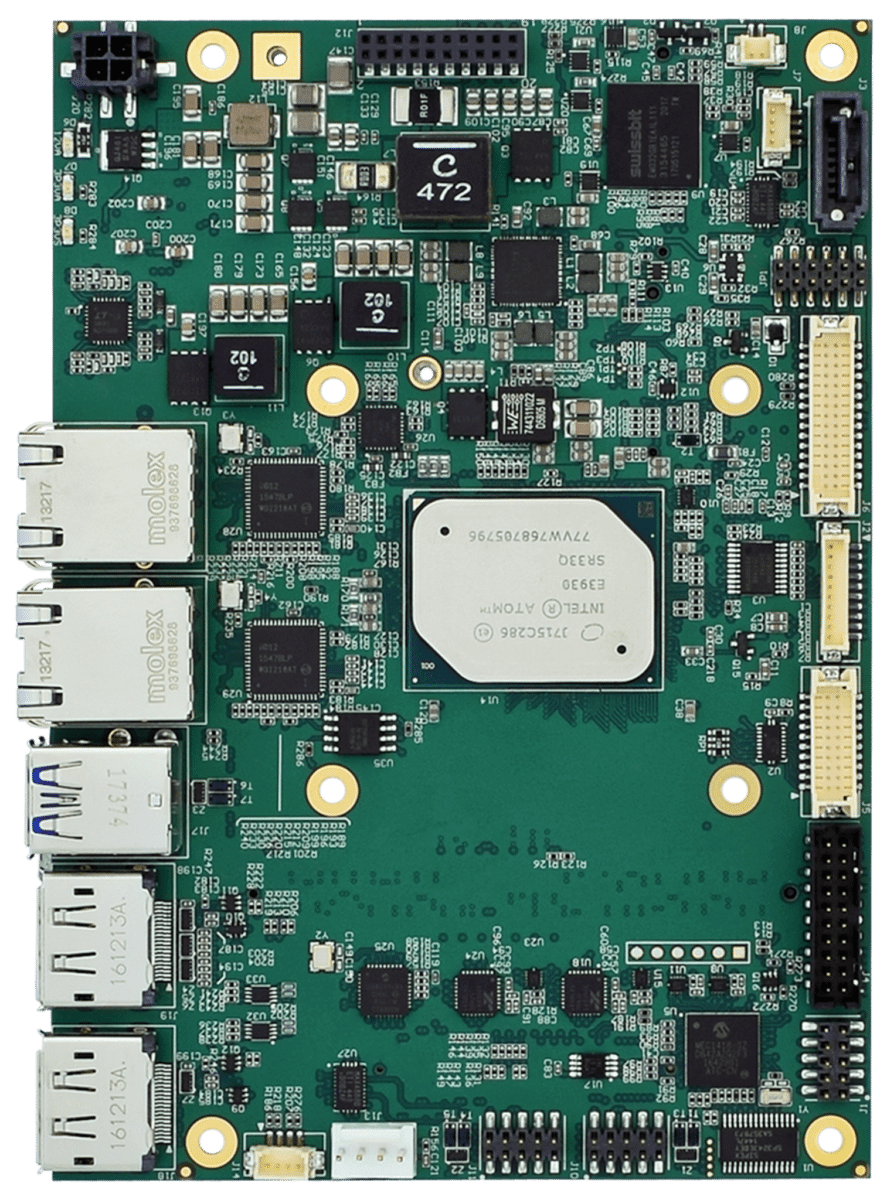

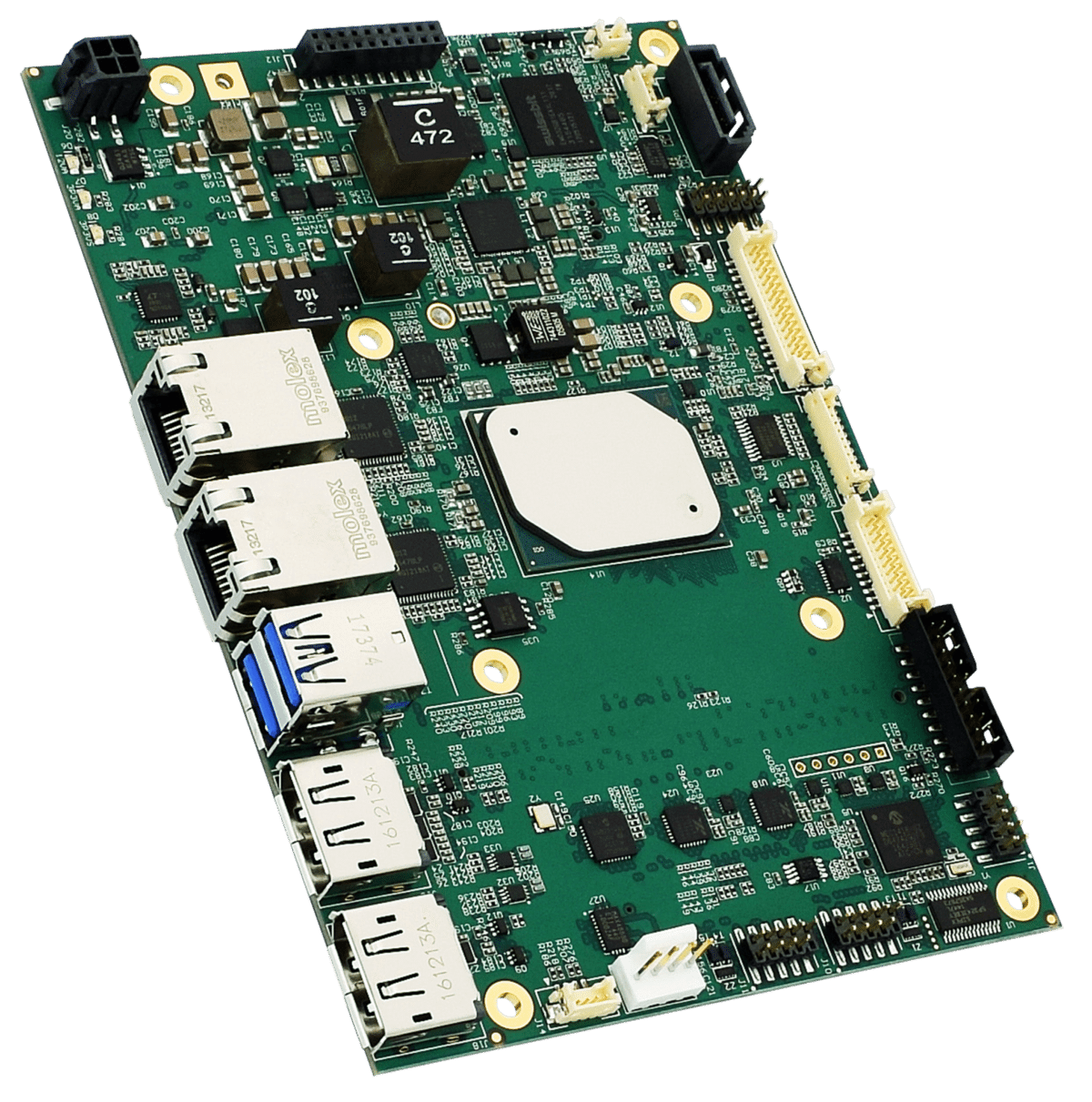

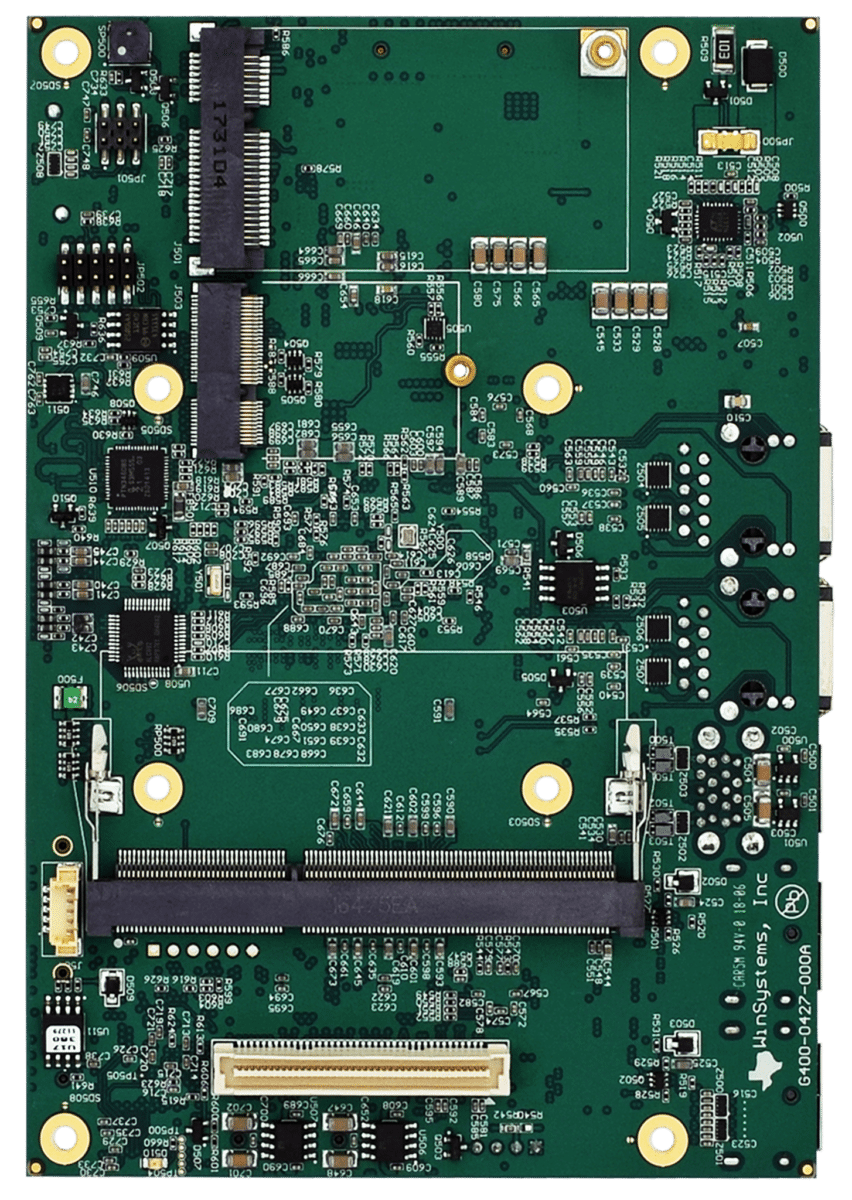

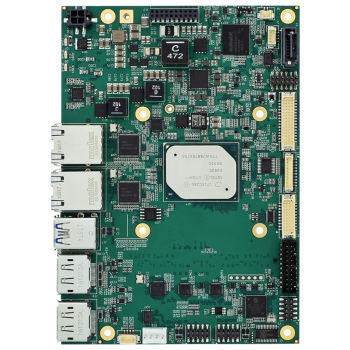

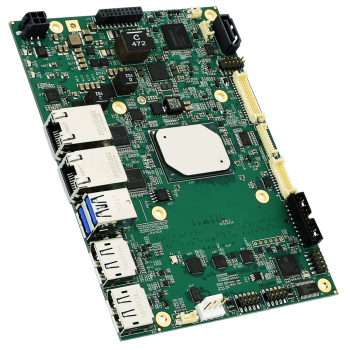

WINSYSTEMS SBC35-427

WINSYSTEMS SBC35-427
WINSYSTEMS SBC35-427WINSYSTEMS SBC35-427WINSYSTEMS SBC35-427
Contact us for more information

Features

  • Intel® Atom Apollo Lake-I E3900 Processor
  • Three Simultaneous Display Outputs
  • Dual DisplayPort
  • LVDS with digital backlight and touch support
  • Two 10/100/1000 Mbps Ethernet Ports
  • Two USB 3.0 Ports
  • Four USB 2.0 Ports
  • Eight Bidirectional GPIO
  • Two Analog-to-Digital (ADC) Inputs
  • Two Serial Ports (RS-232/422/485)
  • One Serial Port (RS-232)
  • One MiniPCIe/MSATA Socket
  • One M.2 E-Key Socket
  • Hi-Definition Audio
  • Onboard eMMC SSD up to 64G mSATA
  • -40°C to +85°C Operational Temperature
  • 3.5-Inch Single Board Computer (SBC)

WINSYSTEMS’ SBC35-427 is an industrial single board computer, which uses Intel®’s Apollo Lake-I E3900 series processor. Its combination of off-the-shelf functionality with multiple expansion and configuration options make it a great fit for industrial IoT applications.

Datasheet SBC-427



Dual USB 2.0 Adapter for SBC35-427 Single Board Computer

Features

  • Two USB 2.0 Type A connectors
  • Gold plated contacts
  • RoHS compliant

The ADP-USB-445 USB 2.0 adapter converts one of the USB 2.0 headers on-board the WINSYSTEMS SBC35-427 single board computer to two type-A connectors on the front I/O panel. The integrated circuitry ensures noise immunity from the type-A connections to the single board computer and provides a robust power solution for external devices.

Datasheet ADP-USB-445

Power Adapter for SBC35-427 Single Board Computer

Features

  • Power on/off push button
  • Recessed reset button
  • Relocates input power connection to the front panel I/O
  • Screw connection for high shock and vibration requirements
  • Gold plated contacts
  • ROHS compliant

The ADP-PS-433 power adapter provides power and reset buttons as well as an easily accessible power connection to the WINSYSTEMS SBC35-427 single board computer. This power connector offers a highly reliable and secure connection to the external power supply allowing easy access to physically remove power from the front I/O panel.

Datasheet ADP-PS-433
