WINSYSTEMS PX1-C415

WINSYSTEMS PX1-C415
WINSYSTEMS PX1-C415WINSYSTEMS PX1-C415WINSYSTEMS PX1-C415
Contact us for more information

Features

  • Intel Apollo Lake-I E3900 Processor (Dual or Quad core)
  • Up to 8 GB DDR3-LV System RAM
  • -40°C to +85°C Operating Temperature Range
  • PC/104 Small Form Factor with PCIe/104™ OneBank™
  • Multiple Displays Supported
  • Secure and Trusted Data
    • ECC RAM
    • Intel Security Engine
    • Cryptographic acceleration
  • Connectivity and I/O for Embedded Systems
    • USB Type C 3.0 and 8x USB 2.0
    • 24 GPIO with event sense
    • Four Serial Ports
  • Expansion Options
    • PCIe/104™ OneBank™
    • M.2 Expansion Socket

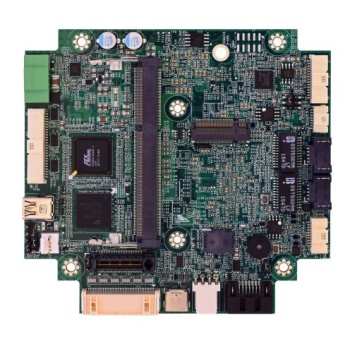

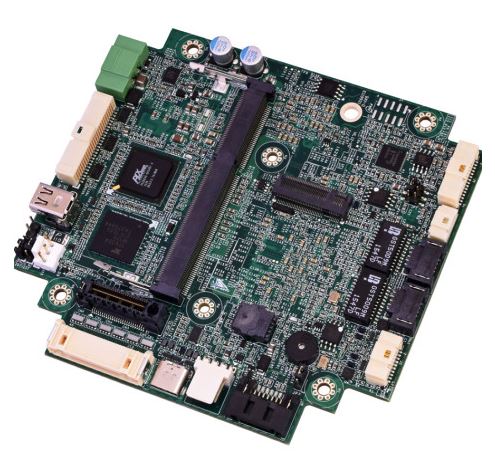

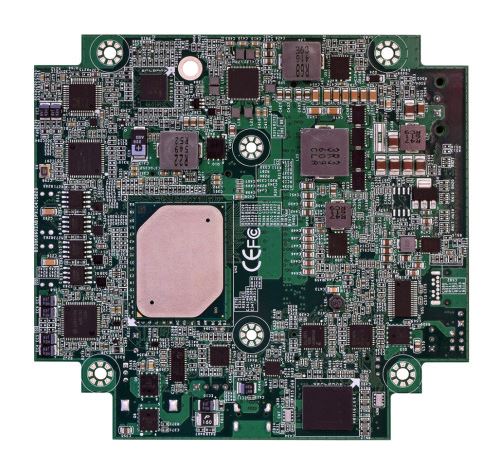

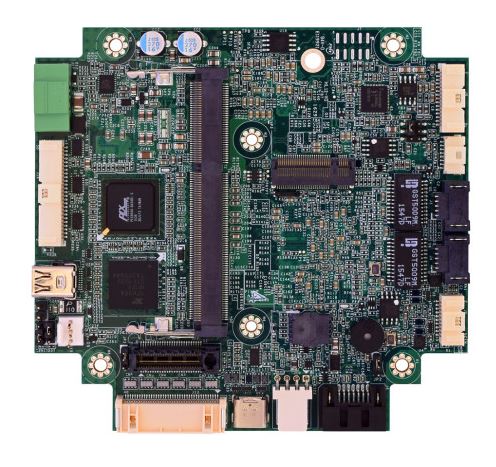

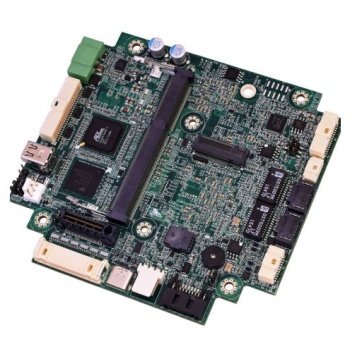

WinSystems’ PX1-C415 single board computer (SBC) is a PC/104 form factor SBC with PCIe/104™ OneBank™ expansion featuring the latest generation Intel® Apollo Lake-I SOC processor. Its small size, rugged design and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.


The WinSystems PX1-C415 single board computer features the Intel Atom Apollo Lake-I Dual core or Quad core System on Chip (SOC) for processing and graphics. It includes a SODIMM socket with up to 8 GB of ECC capable DDR3-L system memory and a non-removable eMMC device for solid state storage of an operating system (OS) and applications. In addition, the board supports M.2 and SATA devices.

This full-featured SBC has onboard I/O and supports simultaneous DisplayPort and LVDS video. It provides dual Gigabit Ethernet interfaces, eight USB 2.0 channels, one SuperSpeed USB 3.0 channel, four serial COM channels, 24 general purpose I/O (GPIO) lines,
stereo audio, and a watchdog timer.

Additionally, the board has an M.2 socket and a PCIe/104 OneBank connector that provides four PCIe and two USB 2.0 I/O
expansion channels.

The PX1-C415 supports Linux, Windows® 10 desktop, Windows® 10 IoT, and other x86-compatible real-time operating systems.

Datasheet PX1-C415
