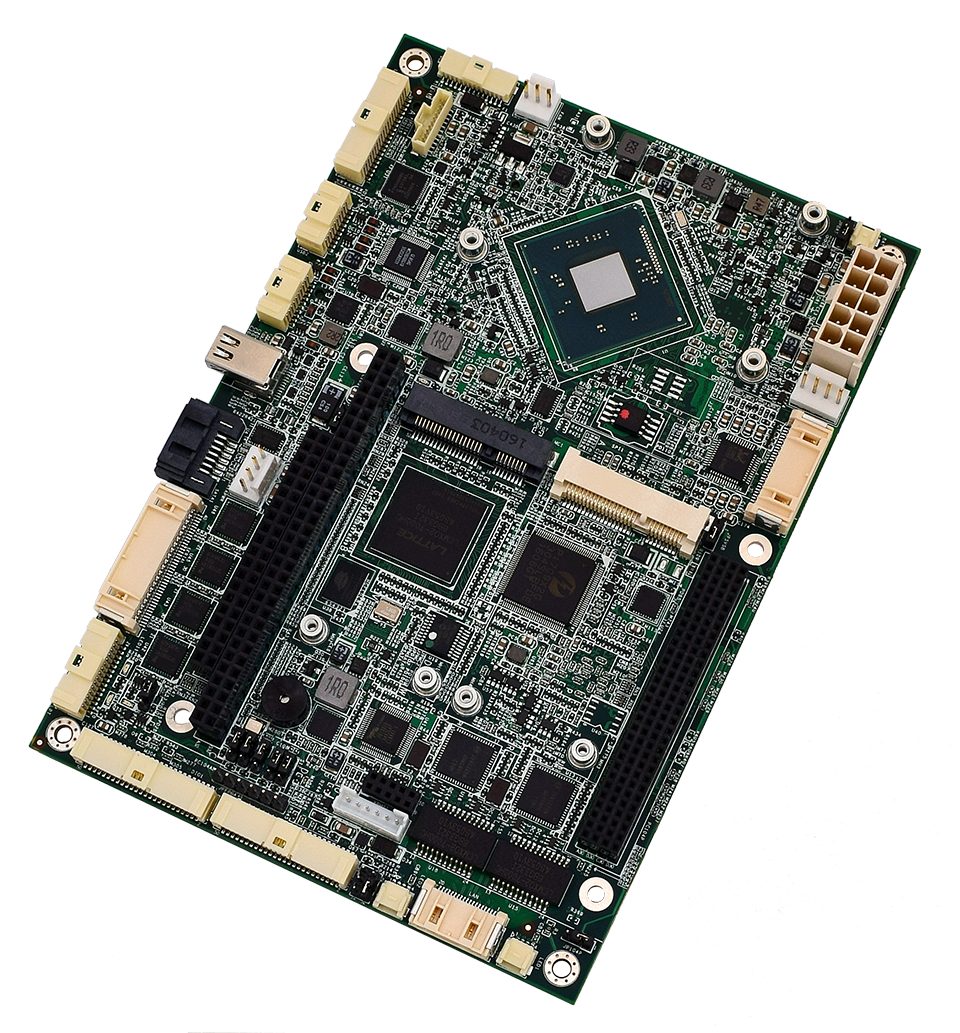

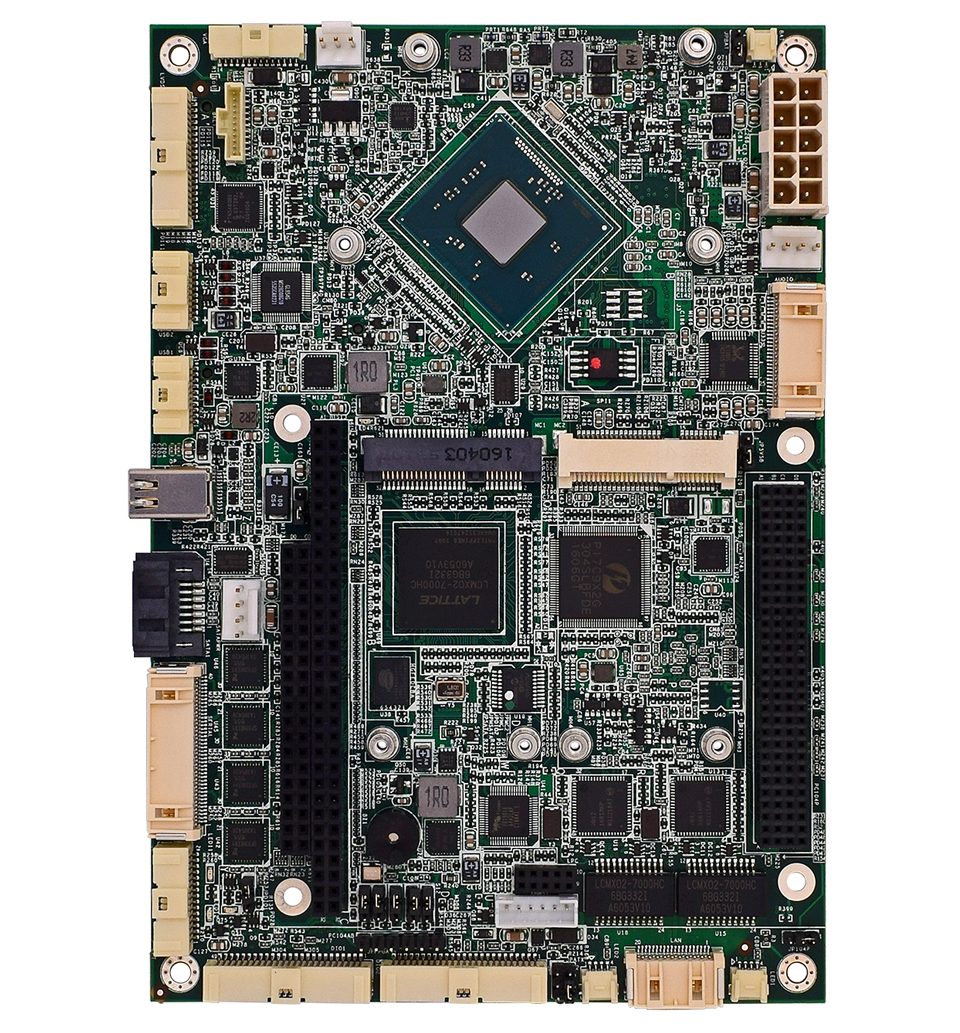

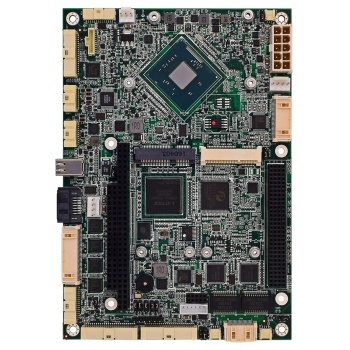

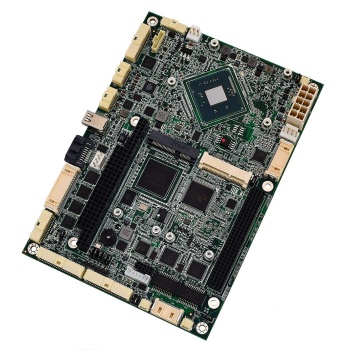

WINSYSTEMS EPX-C414 EPIC Industrial Intel® E3845/E3825 Single Board Computer

Contact us for more information


  • Intel® Bay Trail E3845/E3825 Processor
  • Intel Graphics Engine
  • EPIC Single Board Computer (SBC)
  • PC/104 and PC/104-Plus Expansion Buses
  • -40°C to +85°C Operational Temperature
  • 8 USB 2.0 Ports
  • 4 Serial Ports (RS-232/422/485)
  • Two 10/100/1000 Mbps Ethernet Ports
  • 48 Bidirectional GPIO
  • Hi-Definition Audio
  • 2 MiniPCIe Sockets, 1 MSATA
  • Onboard CFast Socket

WINSYSTEMS’ EPX-C414 is an EPIC form factor single board computer (SBC) with PC/104-Plus expansion featuring the Intel® Atom™ E3800 SOC processor. Its small size, rugged design and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.

The WINSYSTEMS EPX-C414 single board computer features the industrial Intel Atom E3800 Series SOC (formerly known as Bay Trail-I). Quad core and dual core solutions are available from inventory, while single core and custom variants require a minimum order quantity, depending on the processing and graphics requirements of the application. The EPX-C414 includes a SODIMM socket which supports up to 8 GB DDR3-LV system memory and a non-removable 1MB SRAM for battery backed data. A mSATA socket, CFast socket, and SATA interface are included for solid state storage of an operating system (OS) and applications.

This full-featured SBC has onboard I/O and supports two simultaneous displays from the DisplayPort, LVDS, and VGA video interfaces. It provides dual Gigabit Ethernet interfaces, eight USB 2.0 channels, four serial COM channels, 48 general purpose I/O (GPIO) lines, HD audio, an bi-directional LPT port and a watchdog timer.The board also has dual MiniCard sockets and PC/104-Plus expansion connectors to utilize the ecosystem of legacy modules.

The EPX-C414 supports Linux, Windows® 10 desktop, Windows® 10 IoT, and other x86-compatible real-time operating systems.

Datasheet EPX-C414
