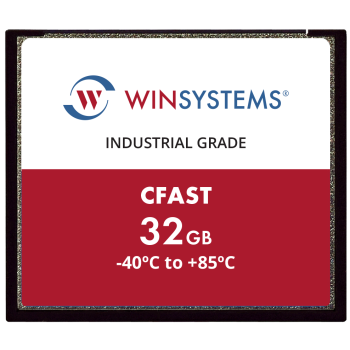

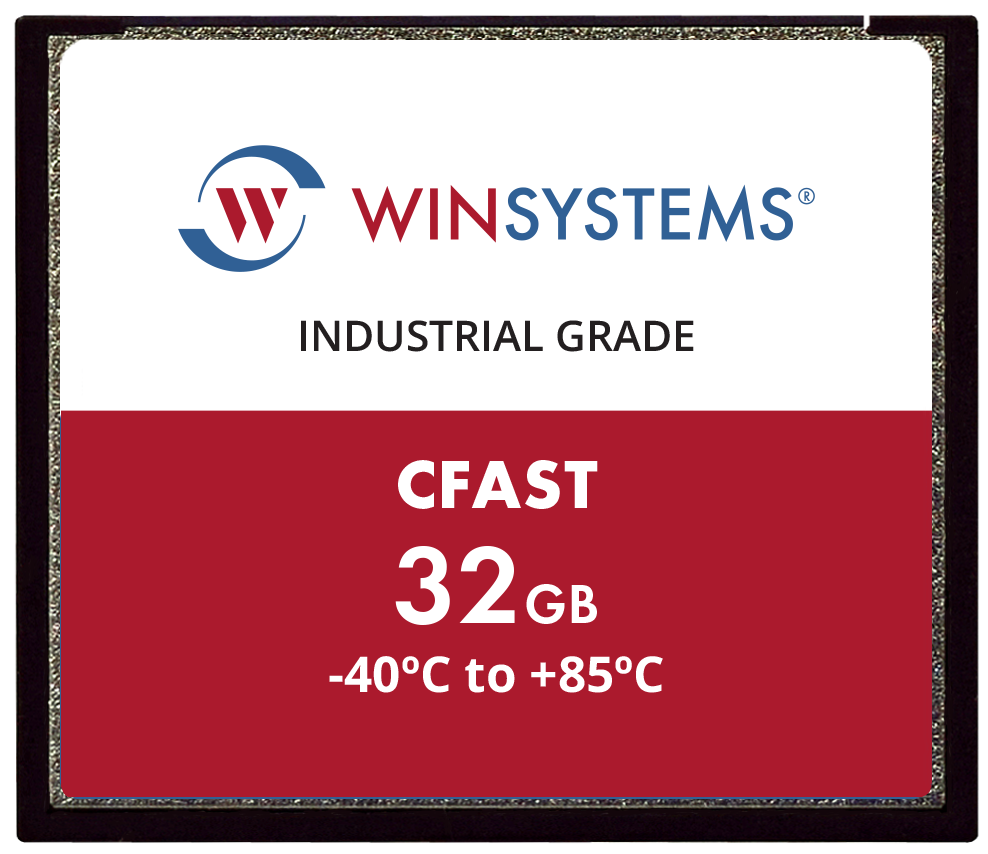

WINSYSTEMS CFAST-B-XXG-SI Industrial Grade SLC CFast Memory Card

ws_cfast-32gb-cf-2a
Contact us for more information

Features

General
  • 2 GB to 32 GB density
  • CFast 2.0 Compliant
  • SATA 3.3 Compliant
  • SMART Functionality
Performance
  • Sequential read from 65 MB/s up to 255 MB/s
  • Sequential write from 45 MB/s up to 90 MB/s
Environment
  • -40°C to +85°C Operating Temperature Range
  • Shock: 12G Sawtooth pulse, 11 ms duration, 3 axes
  • Sine Vibration: 10Hz ~2000Hz, 16.3 G peak to peak, 3 axes
  • Random Vibration: 10Hz ~2000Hz, 1.49 GRMS, 3 axes
  • Humidity: 10 – 95% RH, non-condensing
Reliability
  • Data Retention:
    • 10 years when up to 10% of the P/E cycles have been consumed
    • 1 year when 100% of the P/E cycles have been consumed
  • Static and Global Wear Leveling
  • BCH ECC error correction
  • Bad Block Management
  • Supports Secure Erase and Sanitize via ATA pass-through commands
  • Power loss detection and sudden power fail management
  • Read disturb management
  • MTBF: 2,000,000 hours at 0°C to 25°C

WINSYSTEMS’ CFAST-B-XXG-SI is a USA-made product line of Industrial SLC-based CFast memory cards. These small form factor CFast cards provide SATA-level performance while featuring robust features needed for industrial applications. These cards contain a locked-down Bill of Materials to ensure consistent product performance and future compatibility.

Industrial-grade reliability and industry-standard compatibility make WINSYSTEMS’ CFast cards ideal for industrial, military, and other high-endurance applications.

Datasheet CFAST-B-XXG-SI
