Features
- Universal AC input: 88 to 264 VAC
- Output voltage: +24V @ 1.5A
- No fan required, convection cooling
- Short circuit protection
- Overload and overvoltage protection
- Withstands 300 VAC input surge for 5 seconds
- Complies with safety, EMI, and EMS standards
- LED provides visual status of power

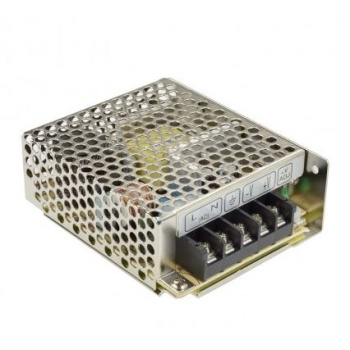

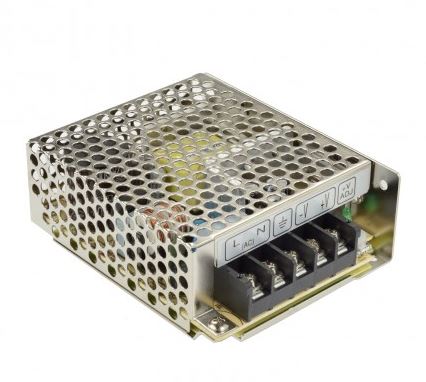

The PS-RS35-24 is a small, convection cooled 35W power supply for embedded systems. It is a universal design that accepts 88 to 264VAC input and generates up to 1.5A of current at 24 volts. The 24 voltage output can be adjusted with an on board trimpot. The PS-RS35-24 is small, measuring only 99 x 82 x 36mm.
Datasheet PS-RS35-24-0
