WINSYSTEMS PS-WT24-48-US

WINSYSTEMS PS-WT24-48-US
Contact us for more information

Features

  • Universal AC input: 90 to 264 VAC
  • Output voltage: +48V @ 0.5A full load
  • Short circuit protection
  • Overload and overvoltage protection
  • Approvals from UL, CUL, TUV, CCC, CB, FCC, CE
  • LED provides visual status of power
  • High energy efficiency, ErP Step 2 rated

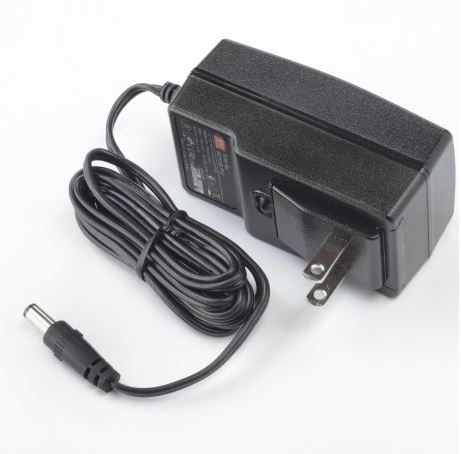

The PS-WT24-48-US is a small, convection cooled, 24W power supply for use with WINSYSTEMS’ Power over Ethernet (PoE) boards. The unit can be used as a power source for Power Sourcing Equipment (PSE) devices or auxiliary power input for Power Devices (PD). It is a universal design that accepts 90 to 264VAC input and generates up to 0.5A of current at +48 volts.

Datasheet PS-WT24-48-US
