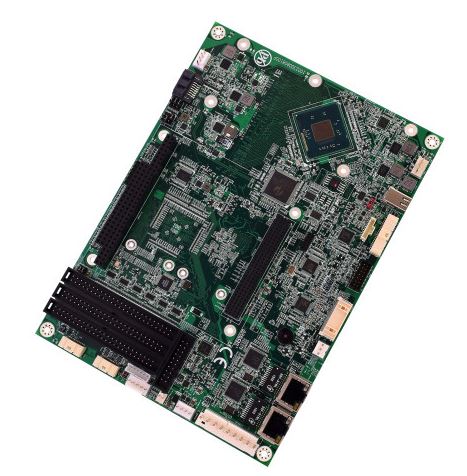

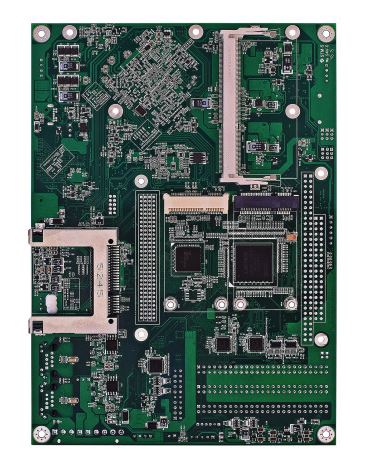

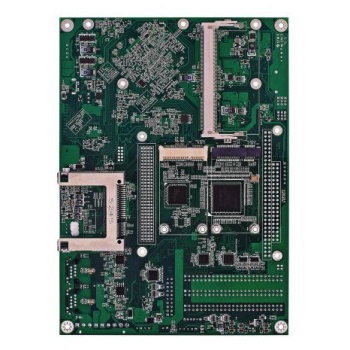

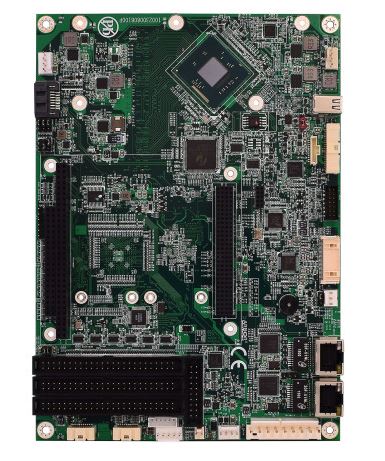

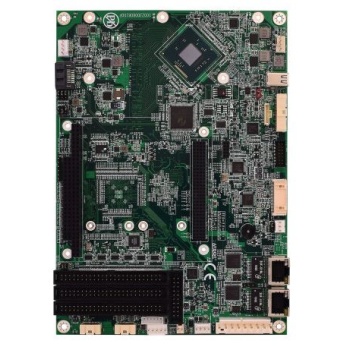

WINSYSTEMS EBC-C413 EBX Industrial Intel® E3845/E3825 Single Board Computer

WINSYSTEMS EBC-C413 EBX Industrial Intel® E3845/E3825 Single Board Computer
WINSYSTEMS EBC-C413 EBX Industrial Intel® E3845/E3825 Single Board ComputerWINSYSTEMS EBC-C413 EBX Industrial Intel® E3845/E3825 Single Board ComputerWINSYSTEMS EBC-C413 EBX Industrial Intel® E3845/E3825 Single Board Computer
Contact us for more information

Features

  • Intel® Bay Trail E3845/E3825 Processor
  • EBX Single Board Computer (SBC)
  • PC/104 and PC/104-Plus Expansion Buses
  • -40°C to +85°C Operational Temperature
  • 8 USB 2.0 Ports
  • 4 Serial Ports (RS-232/422/485)
  • Two 10/100/1000 Mbps Ethernet Ports
  • 48 Bidirectional GPIO
  • Hi-Definition Audio
  • 2 MiniPCIe Sockets, 1 MSATA
  • Onboard CFast Socket

WINSYSTEMS’ EBC-C413 is an EBX-compatible single board computer, which uses Intel®’s Bay Trail E3845 or E3825 processor. It’s rugged design and extended operational temperature makes it a great fit for industrial applications.

Datasheet EBC-C413

Cable Set for EBC-C413

This cable set provides the most commonly used cables and adapters for the WinSystems’ EBC-C413 single board computers. It includes

  • Dual 8-pin, 2 mm, four USB ports (ADP-IO-USB-001)
  • External 3.6 V, 1650 mAH battery with plug-in connector (BAT-LTC-E-36-16-1)
  • Serial COM3 and COM4 cable (CBL-173-G-1-1.0)
  • Video CRT cable (CBL-234-G-1-1.375)
  • EBC power cable (CBL-236-G-2-1.5)
  • Multi-I/O cable (CBL-247-G-1-1.0)
  • PS/2 cable (CBL-343-G-1-1.375)
  • Audio 2x 15 cable (CBL-AUDIO2-102-12)
  • Reset harness (CBL-RST-402-18)
  • Four USB ports with two, 8-pin 2mm connectors (CBL-USB4-002-12)

WS EBC C413cable
