WINSYSTEMS SYS-405Q Rugged Intel® Atom™ Quad-Core Computer with Two Ethernet and USB 3.0

WINSYSTEMS SYS-405Q Rugged Intel® Atom™ Quad-Core Computer with Two Ethernet and USB 3.0
WINSYSTEMS SYS-405Q Rugged Intel® Atom™ Quad-Core Computer with Two Ethernet and USB 3.0WINSYSTEMS SYS-405Q Rugged Intel® Atom™ Quad-Core Computer with Two Ethernet and USB 3.0WINSYSTEMS SYS-405Q Rugged Intel® Atom™ Quad-Core Computer with Two Ethernet and USB 3.0
Contact us for more information

Features

  • Intel® Quad-Core Processor (Bay Trail) Atom E3845
  • Intel® Gen7 Graphics and HD Audio
    • Up to 2 independent displays
    • VGA, and DisplayPort
  • Two 10/100/1000 Ethernet (Intel I210)
  • Two serial ports (RS-232/422/485)
  • Four USB ports (1x USB 3.0 and 3x USB 2.0)
  • Bus Expansion
    • Two MiniPCIe (one with mSATA)
    • IO60 (SPI, I2C, PWM and UART)
  • Bootable SATA, CFast, and mSATA
  • Wide range +10 to +50V DC input
  • Fanless -40° to +85°C operational temperature

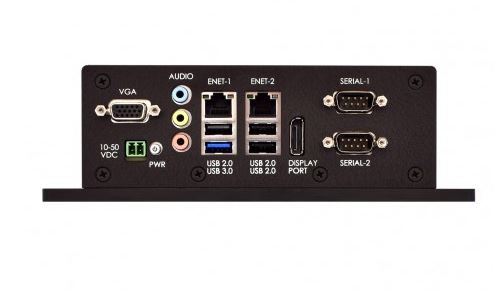

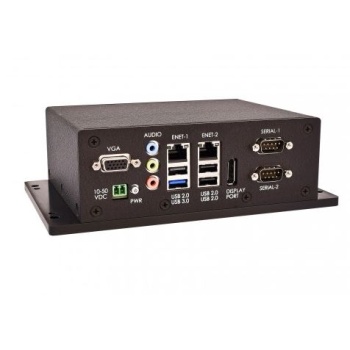

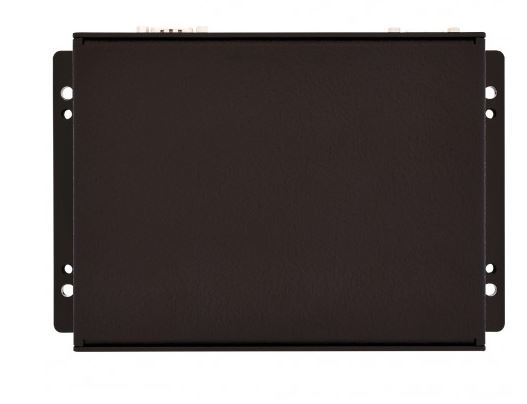

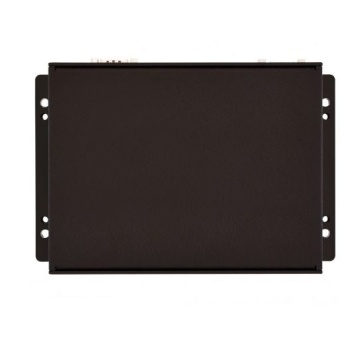

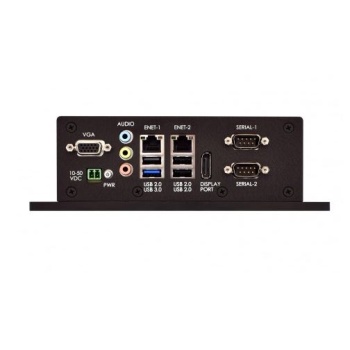

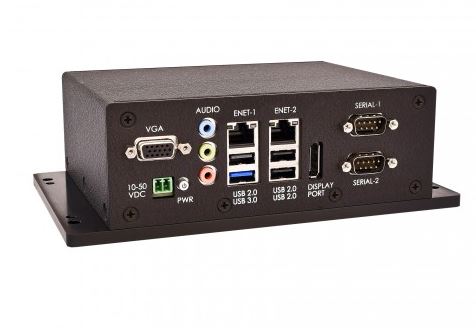

The SYS-405Q is a rugged, industrial system capable of operating at extended temperatures without requiring a fan or heat-pipe. The SYS-405Q is based on the quad-core Intel® Atom™ E3845 processor and protected by a rugged enclosure. The SYS-405Q includes dual Ethernet, dual MiniPCIe, USB 3.0, serial ports with RS-232/422/485, and two independent displays via DisplayPort, and/or Analog VGA.

Datasheet SYS-405Q
