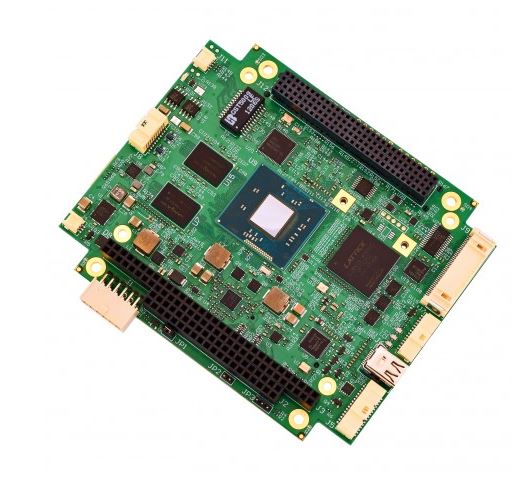

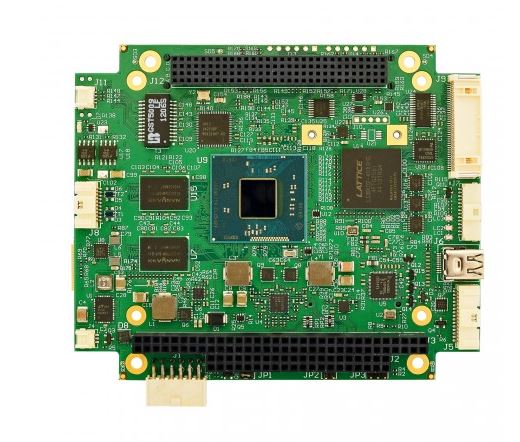

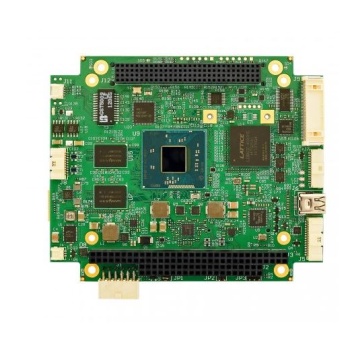

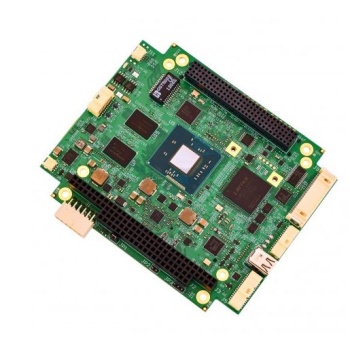

WINSYSTEMS PPM-C407 Fanless E3800 PC104 Single Board Computer

WINSYSTEMS PPM-C407 Fanless E3800 PC104 Single Board Computer
WINSYSTEMS PPM-C407 Fanless E3800 PC104 Single Board ComputerWINSYSTEMS PPM-C407 Fanless E3800 PC104 Single Board Computer
Contact us for more information

Features

  • Multi-Core Intel® Atom™ E3800 Processors
  • Up to 4 GB Soldered Down DDR3 RAM
  • Two Fully Independent Displays (VGA, DisplayPort & LVDS)
  • 1 Gb Ethernet Controller
  • Fanless -40° to +85°C operational temperature
  • 4 Serial Ports and 4 USB 2.0 ports
  • 24 Bidirectional GPIO with event sense
  • Bus Expansion: MiniPCIe, PC/104 & PC/104-Plus
  • Bootable SATA and mSATA

WINSYSTEMS’ PPM-C407 is a low power PC104 Single Board Computer (SBC) with long term availability. It utilizes the E3800 family of Atom™ processors from Intel®, which allows you to choose between low power single-core and higher performance dual or quad-core solutions in the versatile PC104-Plus form factor. Designed for harsh environments and reliability, it includes soldered RAM for added shock and vibration resistance with an operating temperature range from -40 °C up to +85 °C.

Datasheet PPM-C407
