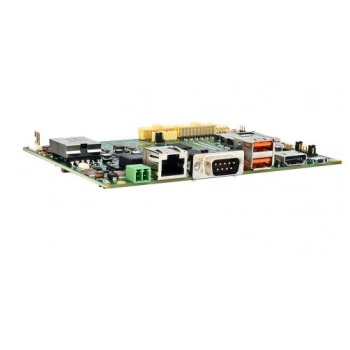

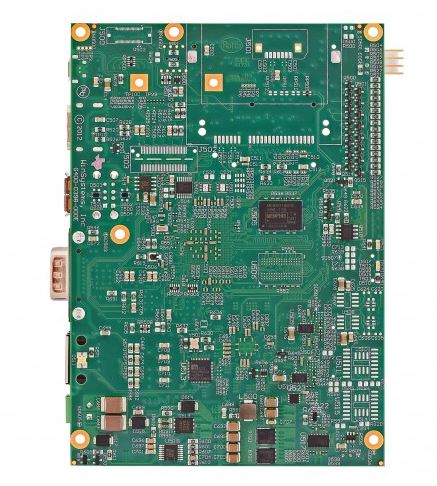

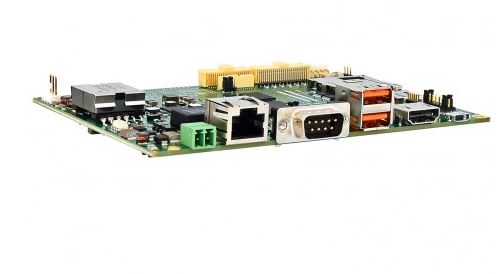

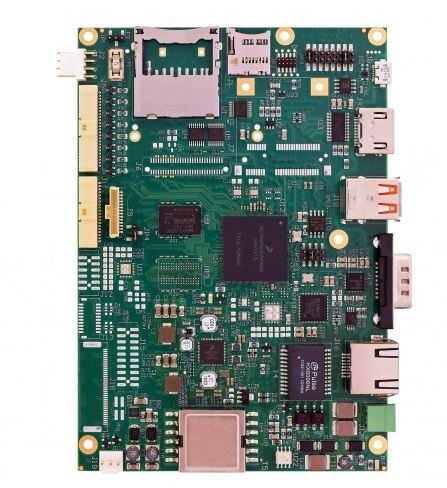

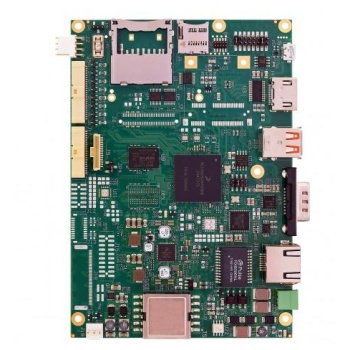

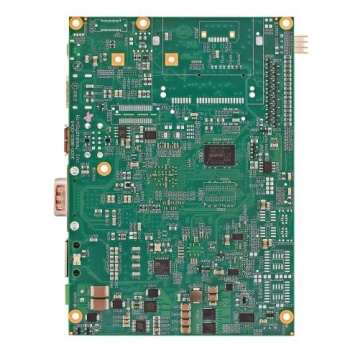

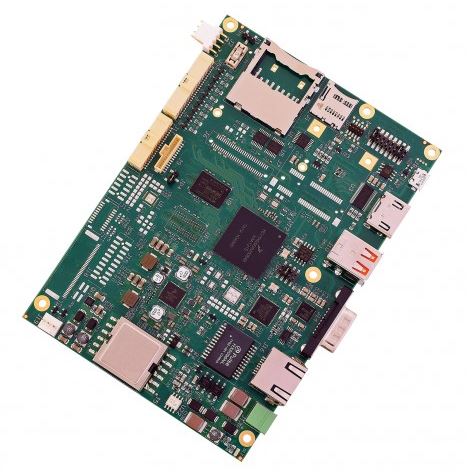

WINSYSTEMS SBC35-C398S-1-0 Low Power (Solo) Single-Core Freescale i.MX 6S Cortex A9 Industrial ARM® SBC

WINSYSTEMS SBC35-C398S-1-0 Low Power (Solo) Single-Core Freescale i.MX 6S Cortex A9 Industrial ARM® SBC
WINSYSTEMS SBC35-C398S-1-0 Low Power (Solo) Single-Core Freescale i.MX 6S Cortex A9 Industrial ARM® SBCWINSYSTEMS SBC35-C398S-1-0 Low Power (Solo) Single-Core Freescale i.MX 6S Cortex A9 Industrial ARM® SBCWINSYSTEMS SBC35-C398S-1-0 Low Power (Solo) Single-Core Freescale i.MX 6S Cortex A9 Industrial ARM® SBCWINSYSTEMS SBC35-C398S-1-0 Low Power (Solo) Single-Core Freescale i.MX 6S Cortex A9 Industrial ARM® SBC
Contact us for more information

Features

  • Freescale® i.MX 6S Industrial ARM CPU @ 800 MHz
  • 1GB of Soldered DDR3 RAM
  • High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
  • Multiple Video Interfaces: HDMI 1.4 and Two LVDS
  • Gigabit Ethernet with IEEE-1588™
  • Two USB 2.0 ports and one USB On-The-Go Port
  • 24 lines GPIO tolerant up to 30 VDC
  • SD/SDIO and MicroSD sockets
  • IO60 expansion
  • Wide range DC or Power over Ethernet (PoE) PD Power Input
  • Fanless -40° to +85°C operational temperature

WINSYSTEMS’ SBC35-C398S low power single board computer combines high performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6S processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.

Datasheet SBC35-C398S-1-0
