WINSYSTEMS SBC35-C398DL-2-0

WINSYSTEMS SBC35-C398DL-2-0
WINSYSTEMS SBC35-C398DL-2-0WINSYSTEMS SBC35-C398DL-2-0WINSYSTEMS SBC35-C398DL-2-0WINSYSTEMS SBC35-C398DL-2-0
Contact us for more information

Features

  • Dual-core Freescale® i.MX 6DL Cortex A9 Industrial ARM® CPU @ 800 MHz
  • 2GB of Soldered DDR3 RAM
  • High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
  • Multiple Video Interfaces: HDMI 1.4 and Two LVDS
  • Gigabit Ethernet with IEEE-1588™
  • Six USB 2.0 ports and one USB On-The-Go Port
  • Two CAN Bus ports, One High Speed Serial port
  • 24 lines GPIO tolerant up to 30 VDC
  • SD/SDIO and MicroSD sockets
  • MiniPCIe and IO60 expansion
  • Wide range DC or Power over Ethernet (PoE) PD Power Input
  • Fanless -40° to +85°C operational temperature

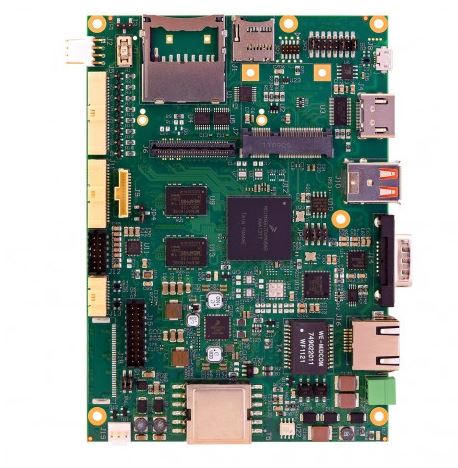

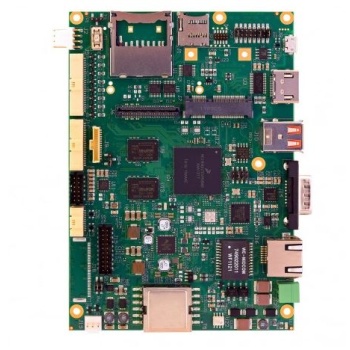

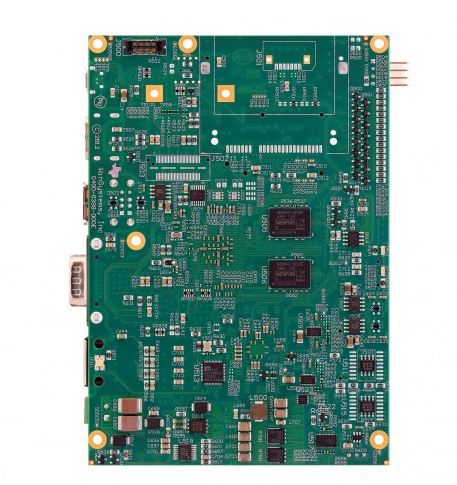

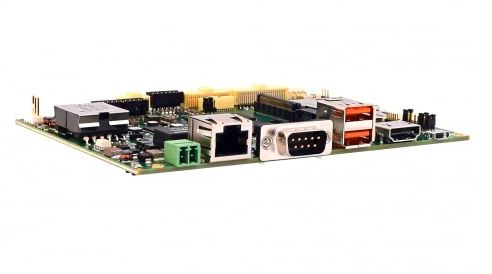

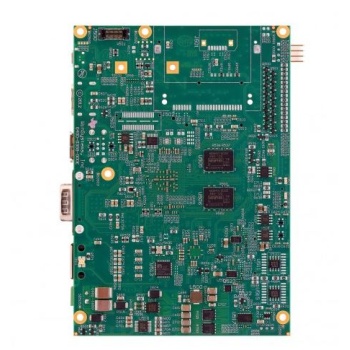

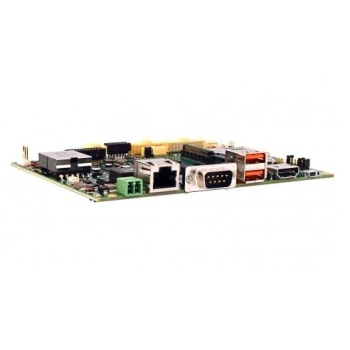

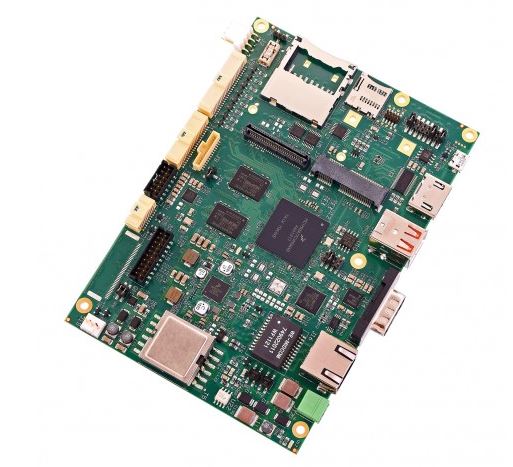

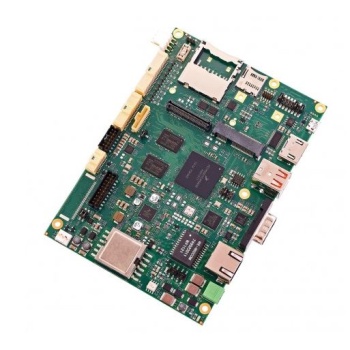

WINSYSTEMS’ SBC35-C398DL dual-core single board computer combines high performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6DL processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.

Datasheet SBC35-C398DL-2-0
