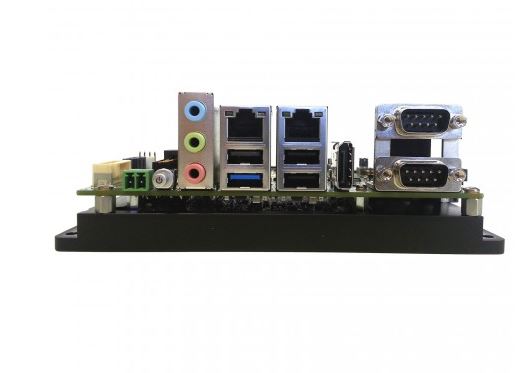

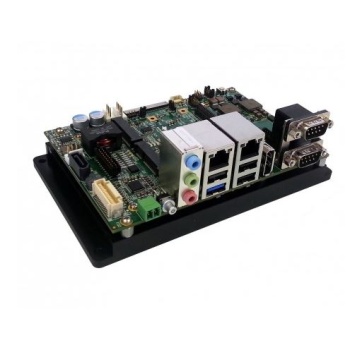

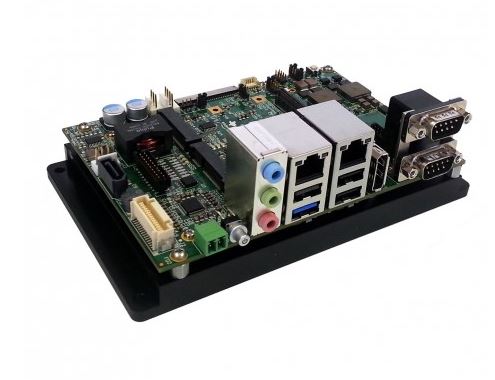

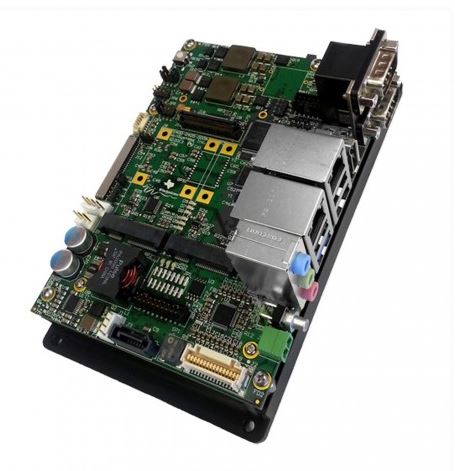

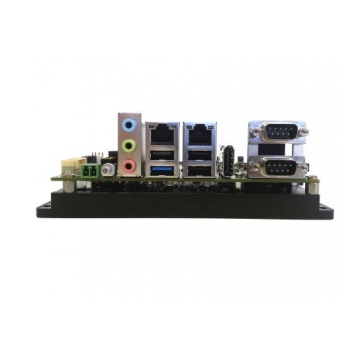

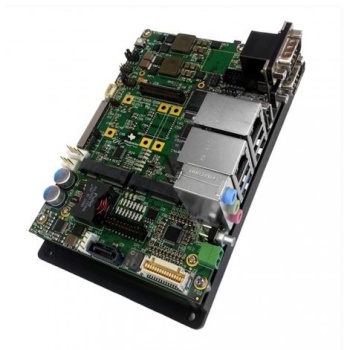

WINSYSTEMS SBC35-CC405-3815 Industrial Low Power SBC with Two Ethernet and USB 3.0

WINSYSTEMS SBC35-CC405-3815 Industrial Low Power SBC with Two Ethernet and USB 3.0
WINSYSTEMS SBC35-CC405-3815 Industrial Low Power SBC with Two Ethernet and USB 3.0WINSYSTEMS SBC35-CC405-3815 Industrial Low Power SBC with Two Ethernet and USB 3.0WINSYSTEMS SBC35-CC405-3815 Industrial Low Power SBC with Two Ethernet and USB 3.0
Contact us for more information

Features

  • Intel® Low Power Processor (Bay Trail) Atom™ E3815
  • Intel® Gen7 Graphics and HD Audio
        Up to 2 independent displays
        VGA, LVDS, and DisplayPort
  • Two 10/100/1000 Ethernet (Intel® I210)
  • Two serial ports (RS-232/422/485)
  • Four USB ports (1x USB 3.0 and 3x USB 2.0)
  • Bus Expansion
        Two MiniPCIe (one with mSATA)
        IO60 (SPI, I2C, PWM and UART)
  • Bootable SATA, CFast, and mSATA
  • Wide range +10 to +50V DC input
  • Fanless -40° to +85°C operational temperature

Industrial embedded computer with Low Power Intel® Atom™ CPU, Dual Ethernet, Dual MiniPCIe, USB 3.0, RS-232/485/422 and two independent displays via DisplayPort, LVDS and/or Analog VGA.

Datasheet
