WINSYSTEMS SYS-405D Rugged Intel® Atom™ Dual-Core Computer with Two Ethernet and USB 3.0

WINSYSTEMS SYS-405D Rugged Intel® Atom™ Dual-Core Computer with Two Ethernet and USB 3.0
WINSYSTEMS SYS-405D Rugged Intel® Atom™ Dual-Core Computer with Two Ethernet and USB 3.0WINSYSTEMS SYS-405D Rugged Intel® Atom™ Dual-Core Computer with Two Ethernet and USB 3.0WINSYSTEMS SYS-405D Rugged Intel® Atom™ Dual-Core Computer with Two Ethernet and USB 3.0
Contact us for more information

Features

  • Intel® Dual-Core Processor (Bay Trail) Atom E3827
  • Intel® Gen7 Graphics and HD Audio
          Up to 2 independent displays
          VGA, and DisplayPort
  • Two 10/100/1000 Ethernet (Intel I210)
  • Two serial ports (RS-232/422/485)
  • Four USB ports (1x USB 3.0 and 3x USB 2.0)
  • Bus Expansion
          Two MiniPCIe (one with mSATA)
          IO60 (SPI, I2C, PWM and UART)
  • Bootable SATA, CFast, and mSATA
  • Wide range +10 to +50V DC input
  • Fanless -40° to +85°C operational temperature

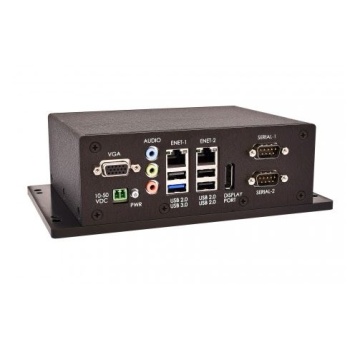

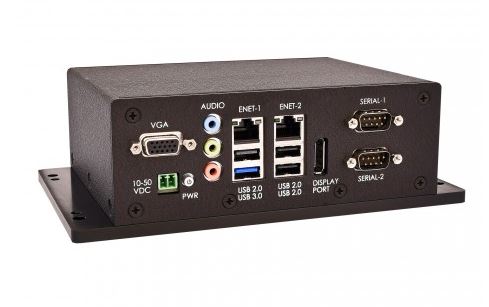

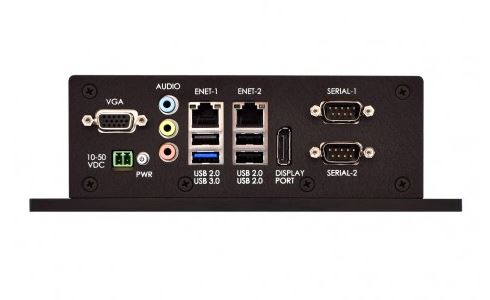

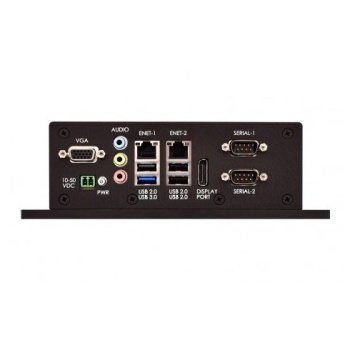

The SYS-405D is a rugged, industrial system capable of operating at extended temperatures without requiring a fan or heat-pipe. The SYS-405D is based on the dual-core Intel® Atom™ E3827 processor and protected by a rugged enclosure.The SYS-405D includes dual Ethernet, dual MiniPCIe, USB 3.0, serial ports with RS-232/422/485 and two independent displays via DisplayPort, and/or Analog VGA.

Datasheet SYS-405D
