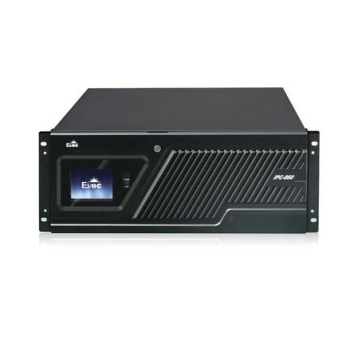

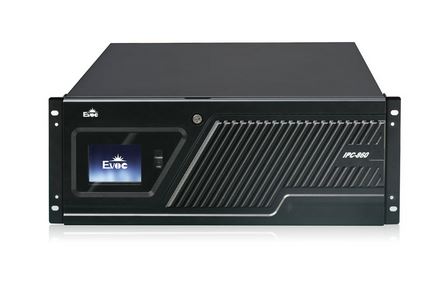

EVOC IPC-860

EVOC  IPC-860
Contact us for more information

Features

  • Flexible installation capability supports various models of motherboards, and supports installation of EATX (dual-channel), EPE motherboard.
  • Professional thermal design, smooth heat dissipation channel
  • Supports three storage designs: 4 x drawable HDD module
  • 4U 19-inch rack mount installation, with only 552mm depth

Specifications

Processor Varies with the built-in motherboards: When two-channel EATX motherboards are used, the product supports single-channel or dual-channel Intel Xeon E5 V3 family LGA 2011-3 package 6-core/8-core/10-core/12-core processors, QPI up to 9.6GT/s, with sophisticated onboard LSI professional Raid function; When EPE full-size card is used, the product supports one Ivy Bridge/ Sandy Bridge/Xeon E3 family LGA1155 dual-core/quad-core processor.
Chipset Varies with the motherboards: The product supports Intel® C612 Chipset, Intel® H61/B65/Q67 Express Chipset and etc.
Memory Varies with the motherboards: When two-channel EPE motherboards are used, the product supports 16 DDR4 memory slots. A single memory module supports up to 1TB ECC memory, and supports UDIMM, RDIMM, LRDIMM; When EPE full-size card is used, the product supports DDR3 800/1066/1333/1600/1866 MHz memory.
Backplane used When EPE-1815 motherboard is built in, 10-13slot standard EPE backplane can be used
I/O ports 2 x USB 2.0 port, ATX rocker switch, reset switch, power supply, HDD LED, safety door with lock at front
LCM display module After the panel is opened, the touchable LCM module has display and interaction function, and can realize power-off, information display, status monitoring (the system supports real-time monitoring: CPU temperature, HDD temperature, memory status, network flow, fan speed, system temperature, power supply status, and etc.), process management, log management, and change of parameter settings of users, etc.
Storage Three types of HDD modules are supported:
a. 4 drawable HDD (without vibration-absorption);
b. Two drawable HDD modules with RAID controller (without vibration-absorption);
c. Two drawable HDD with vibration-absorption module;
Note: Single-channel and dual-channel server motherboards support SAS HDD installation
1 x ultra-thin CD/DVD-ROM bay (front panel reserved, optional)
Expansibility Varies with the built-in motherboards: When dual-channel EATX motherboards are used, the product supports full-height full-size direct-insertion expansion:
Dual-channel: 2 x full-height PCI-E x16, 4 x full-height PCI-E x8 (dual-channel)
Single channel: 1 x full-height PCI-E x16, 1 x full-height PCI-E x8
Operating temperature EPE configuration: 0℃~50℃; 5%~90% (non-condensing)
EATX server motherboard configuration: 0℃~40℃; 5%~90% (non-condensing)
Storage environment -20℃~80℃; humidity: 5%~95% (non-condensing)
Power supply Standard ATX power supply
Dimensions (W×D)

304.8 mm (L) x 251.2 mm (W)
