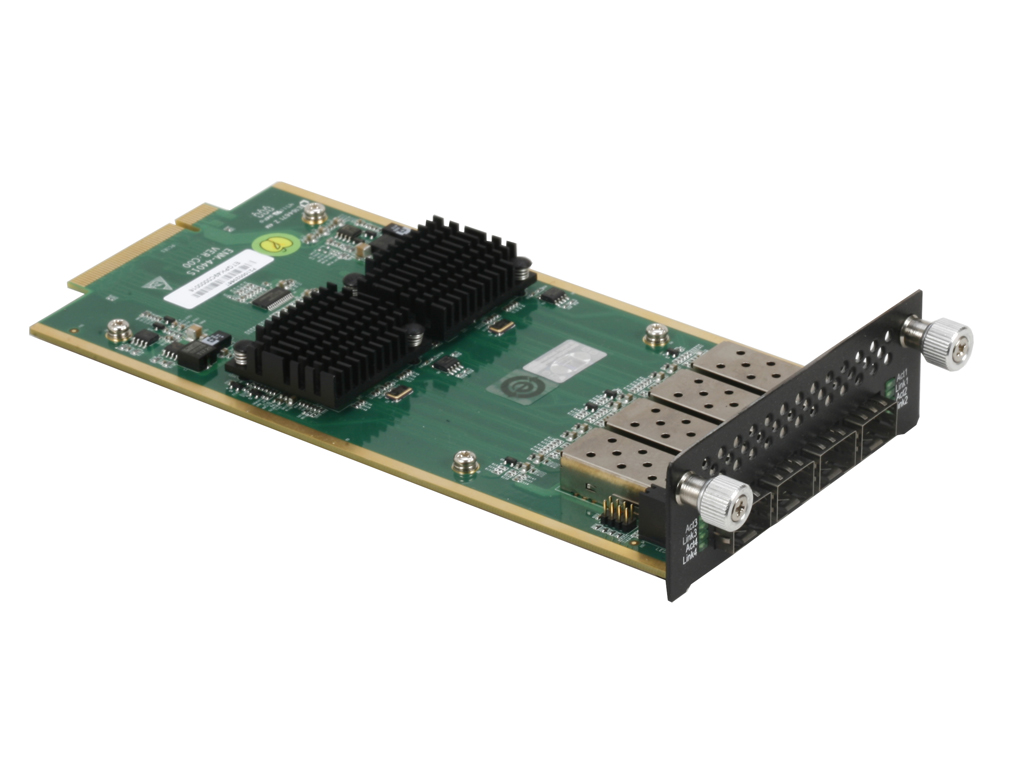

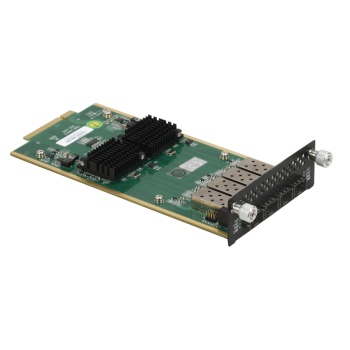

EVOC ENC-4401S

EVOC ENC-4401S
Contact us for more information

Features

  • Server-grade PCIe
  • 4 x SFP 1000M optical fiber port
  • Intel® 82576EB high-performance network chip
  • Supports both horizontal and vertical installation methods
  • Can be used in network security and industrial computers
Specifications

Half-size PCIe

Interface Structure

Brackets, including short brackets

Network Port

4 x SFP 1000M optical fiber port

Ethernet

Intel® 82576EB

Bypass

Optional port bypass supported

Operating System Windows, LINUX
Operating environment

Temperature: 0°C~60°C
Humidity: 5%~95%, non-condensing

Storage environment

Temperature: -20°C~60°C
Humidity: 5%~90%, non-condensing

EMC

Class A

Dimensions

171.9mm(L) × 111.2mm(W) × 21.6mm(H)
