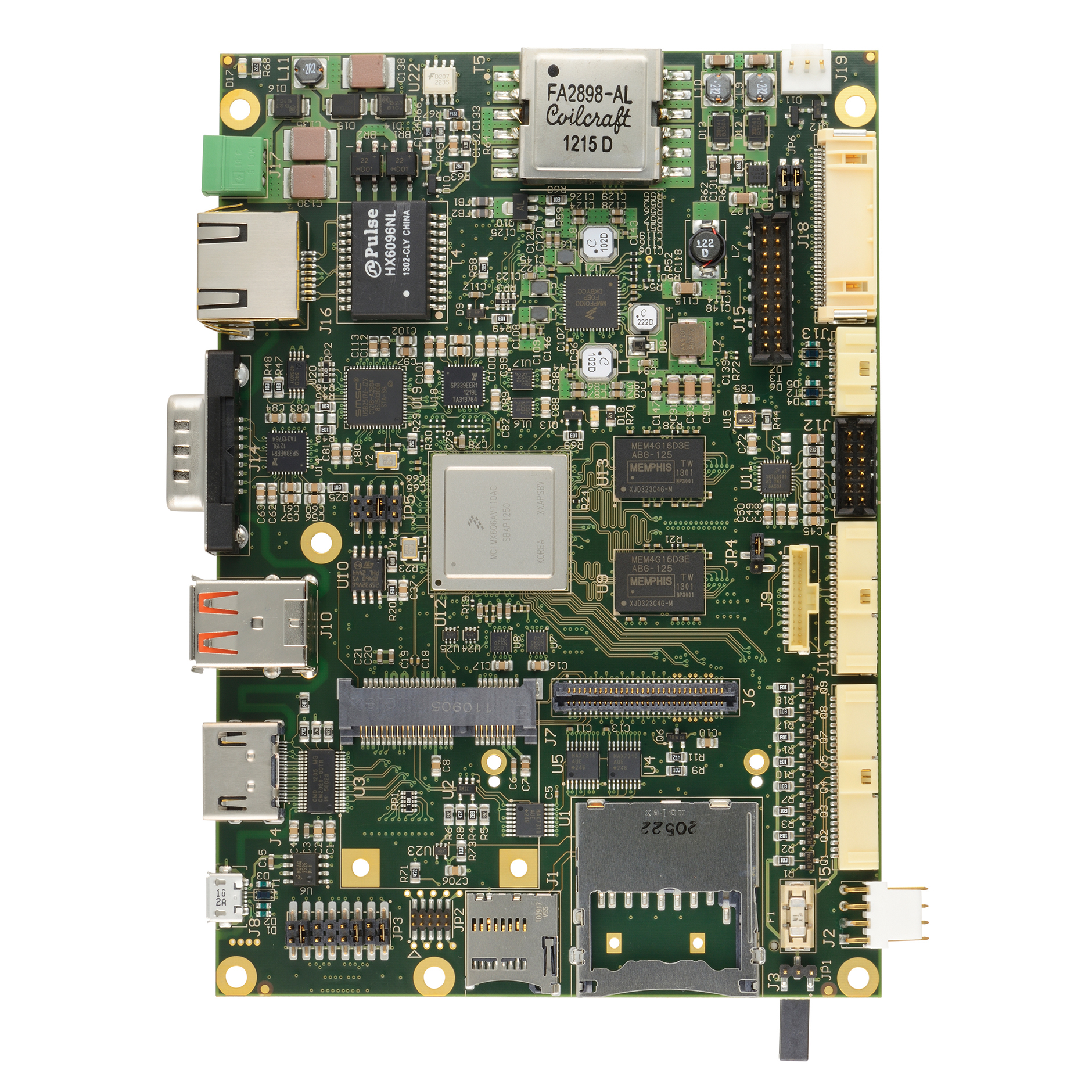

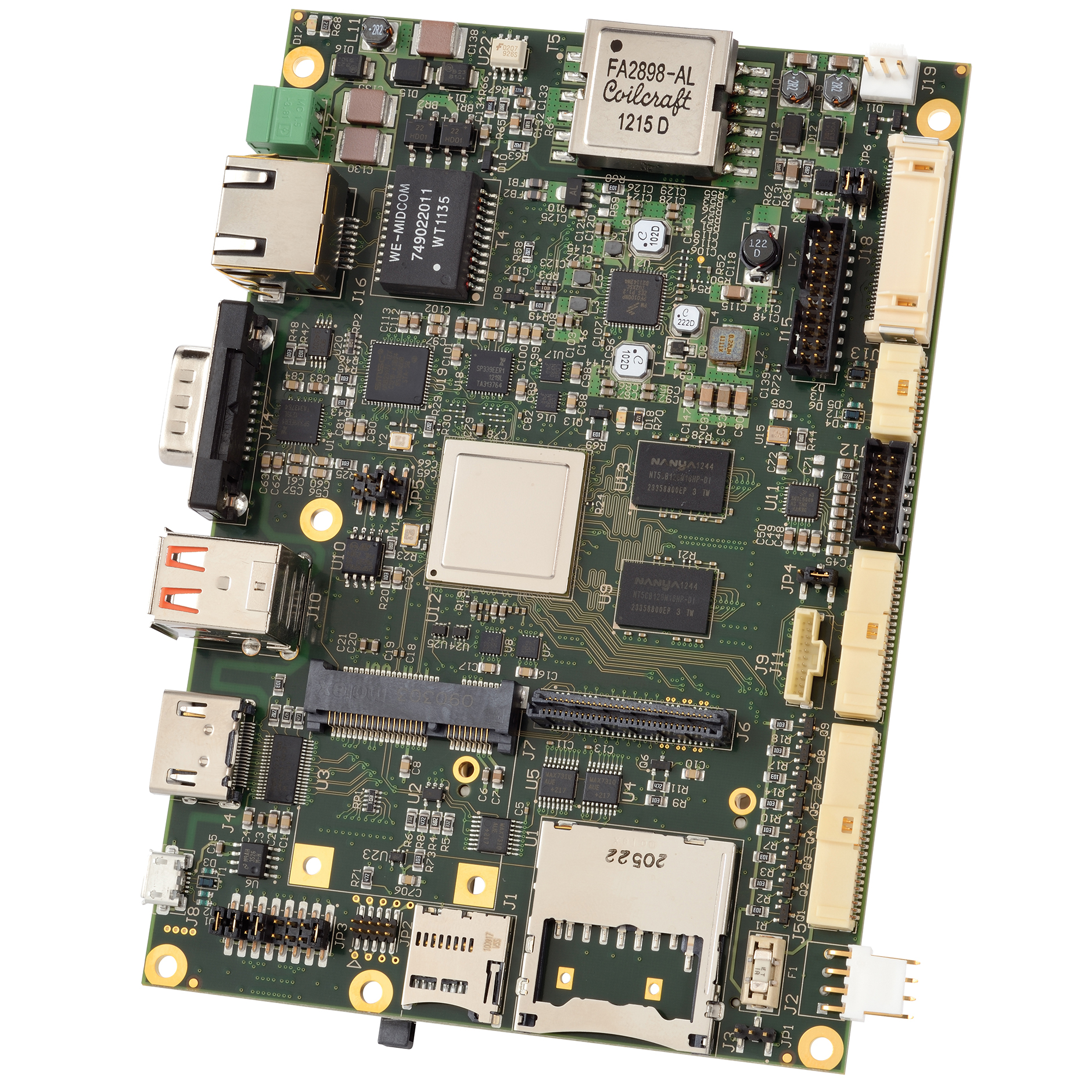

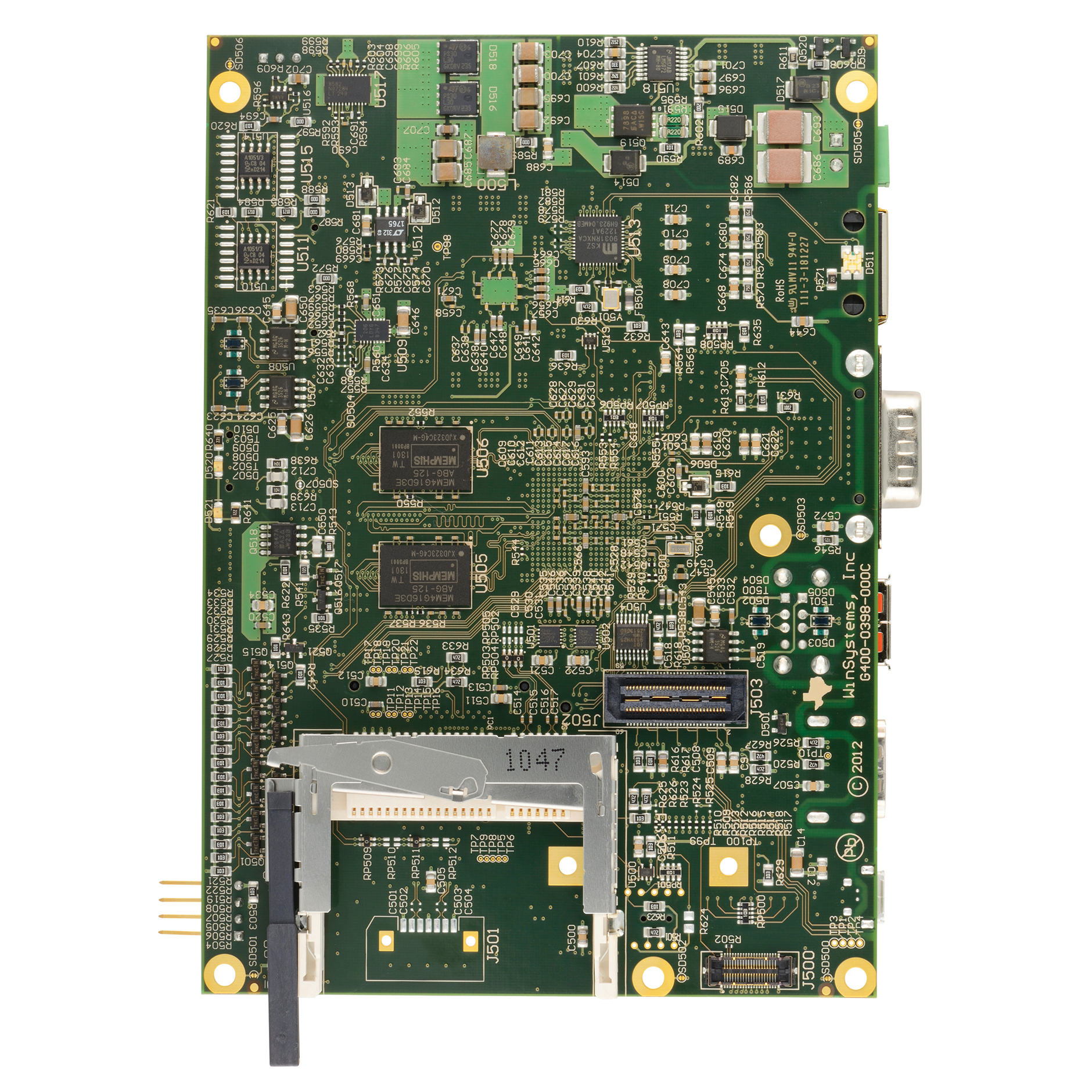

WINSYSTEMS SBC35-C398Q-2-0

WINSYSTEMS SBC35-C398Q-2-0
WINSYSTEMS SBC35-C398Q-2-0WINSYSTEMS SBC35-C398Q-2-0WINSYSTEMS SBC35-C398Q-2-0
Contact us for more information

Features

  • Quad-core Freescale® i.MX 6Q Cortex A9 Industrial ARM CPU @ 800 MHz
  • 2GB of Soldered DDR3 RAM
  • High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
  • Multiple Video Interfaces: HDMI 1.4, Two LVDS, and MIPI
  • MIPI Capture/Display CMOS Camera Input
  • Gigabit Ethernet with IEEE-1588™
  • Six USB 2.0 ports and one USB On-The-Go Port
  • Two CAN Bus ports, Five High Speed Serial ports
  • 24 lines GPIO tolerant up to 30 VDC
  • CFast, SD/SDIO, and MicroSD sockets
  • MiniPCIe and IO60 expansion
  • Wide range DC or Power over Ethernet (PoE) PD Power Input
  • Fanless -40° to +85°C operational temperature

WINSYSTEMS’ SBC35-C398Q quad-core single board computer combines high-performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6Q processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.

Datasheet SBC35-C398Q-2-0
