WINSYSTEMS PCM-DC-AT500

WINSYSTEMS PCM-DC-AT500
WINSYSTEMS PCM-DC-AT500WINSYSTEMS PCM-DC-AT500WINSYSTEMS PCM-DC-AT500
Contact us for more information

Features

  • Wide input range: 10V to 50 VDC
  • Voltage output: +5V @ 20A
  • -40 to +85°C operation
  • No fan or heat sink required
  • No minimum load required for regulation
  • Output with short circuit, overload and overvoltage protection
  • LED provides visual status for +5V
  • Up to 95% efficient
  • High efficiency design
  • Fast transient response

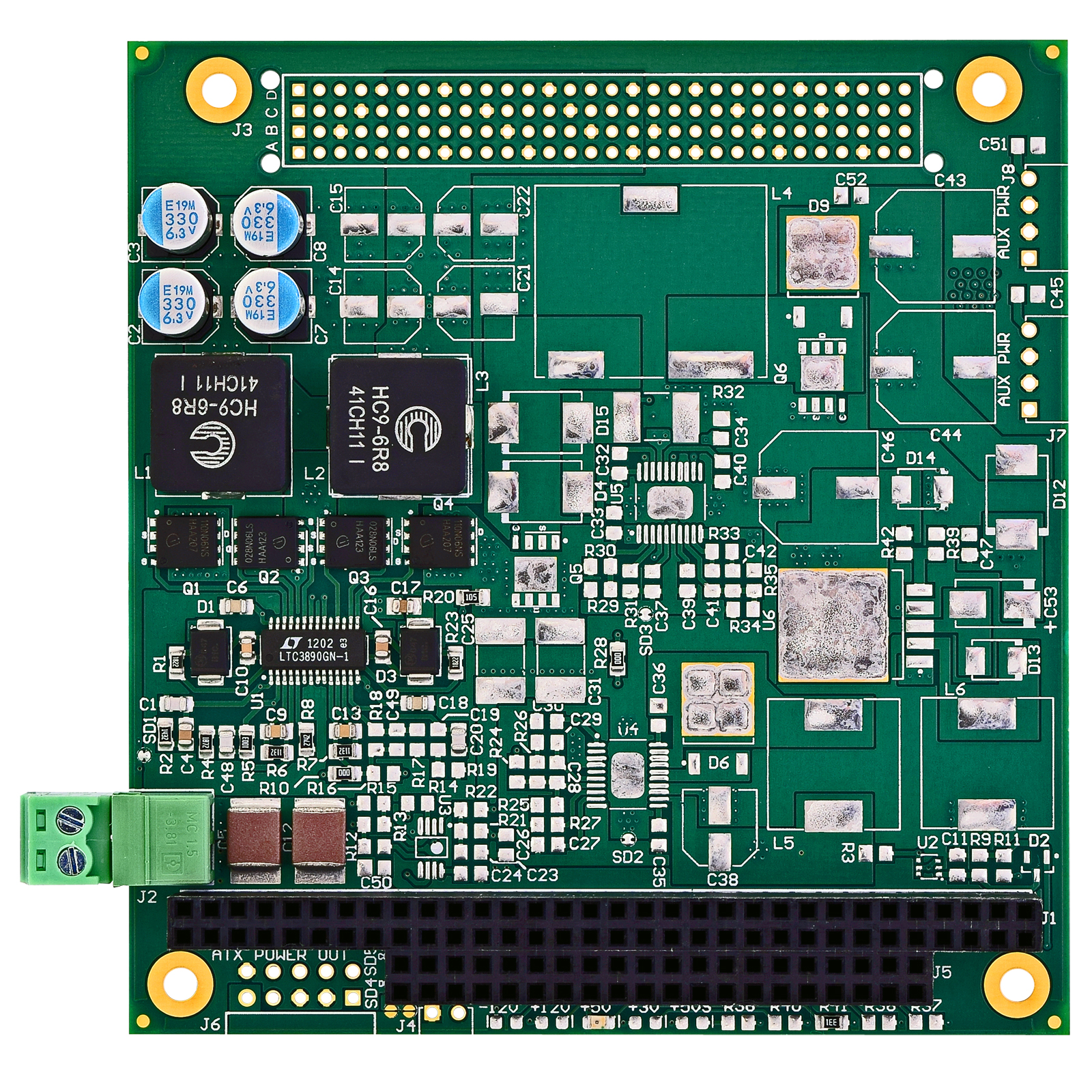

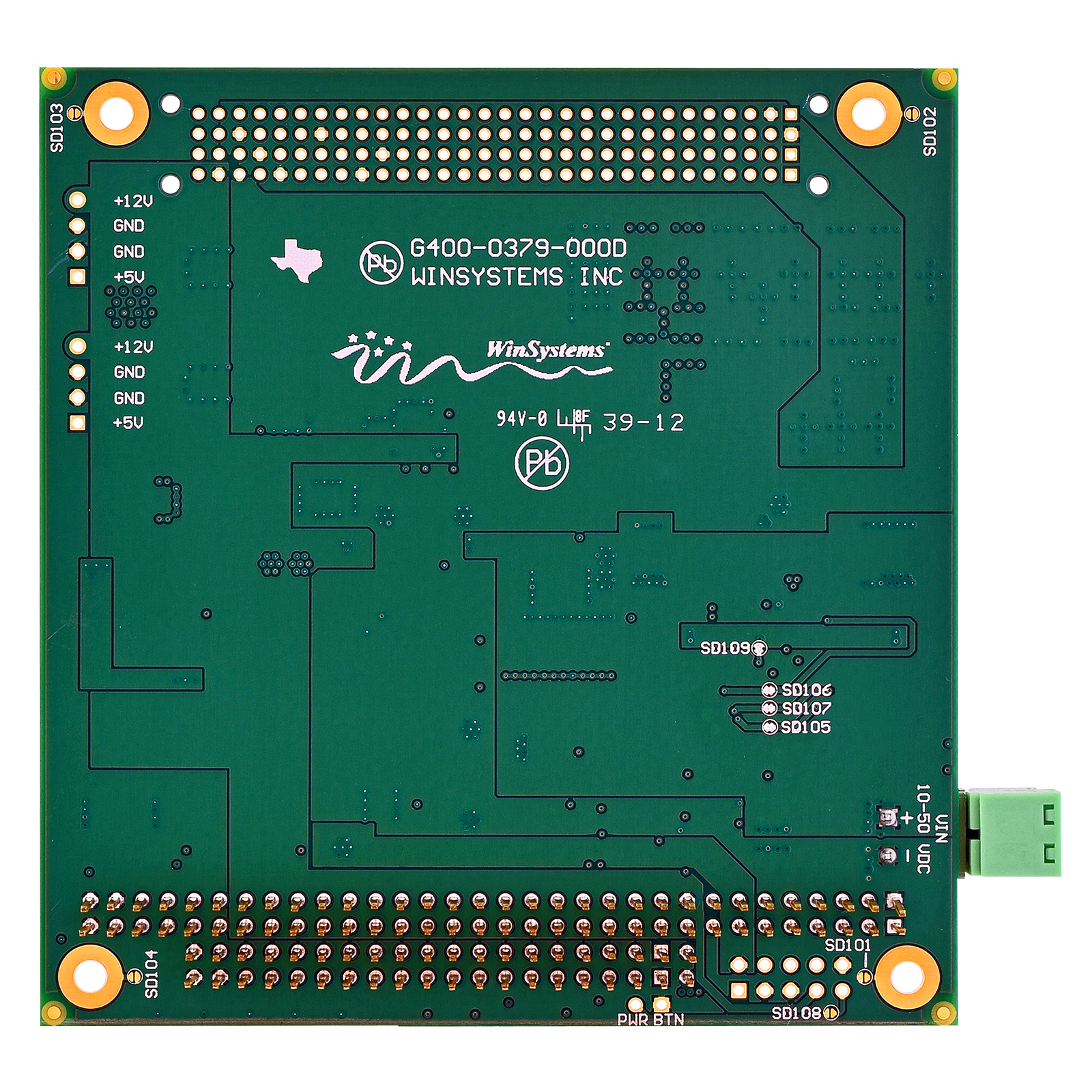

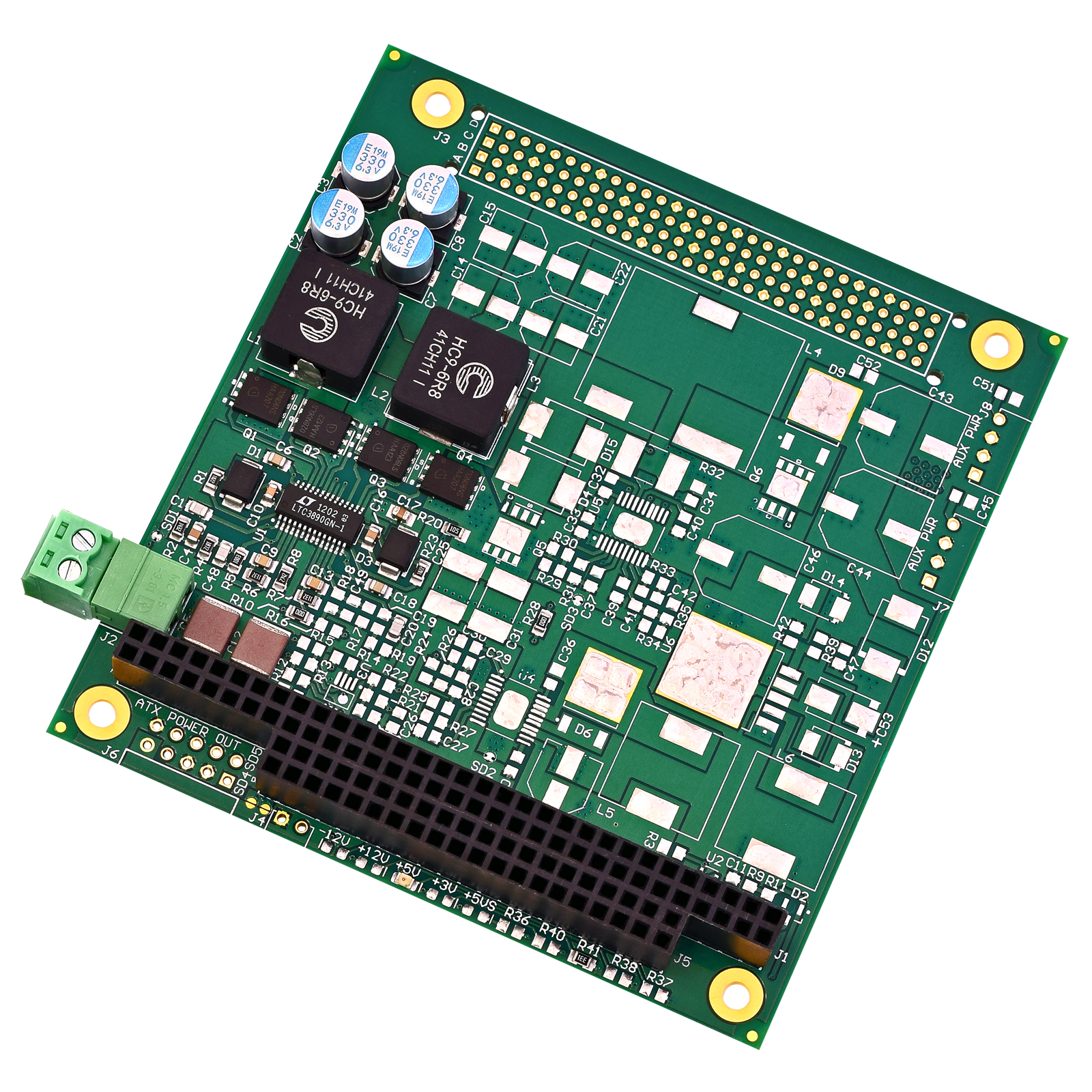

WINSYSTEMS’ PCM-DC-AT500 is a +5 volt, 20 Amp DC/DC power supply that can mount anywhere in a PC104 stack. It features a wide voltage input range from 10 to 50 volts DC. This allows the unit to operate with 12, 24, or 48 volt battery or distributed DC power systems. It opens up a wide array of applications including Mil/COTS, transportation, security, solar-powered, and telecommunications.

Datasheet PCM-DC-AT500
