  • Single-slot 6U VMEbus format
  • PLX6150 PCI-to-PCI interface bridge
  • Support for two single-wide or one double-wide PCI Mezzanine Card (PMC) per PMCspan
  • Stacking capability
  • Front-panel and/or P2 I/O
  • Compliant with PCI local bus specification (revision 2.1)
  • Injector/ejector handles per VME64 extensions
  • Compatible with SMART EC's PowerPlus™ VME series

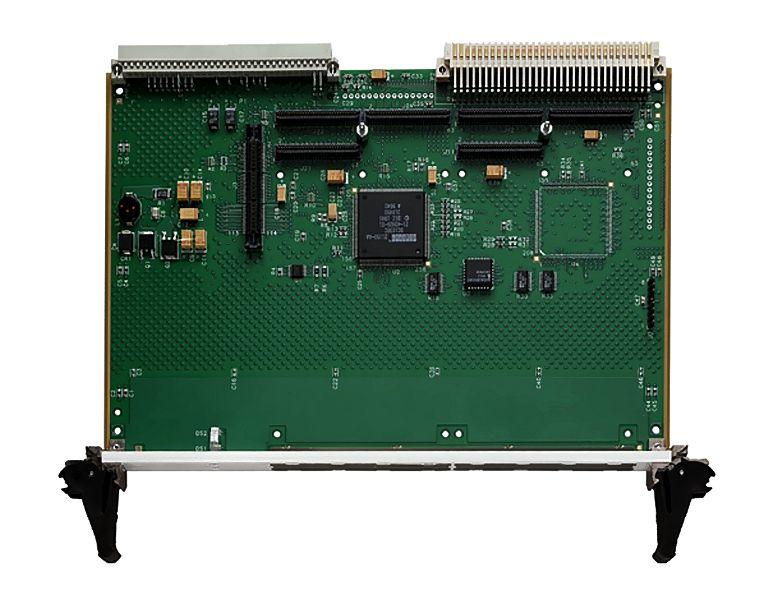

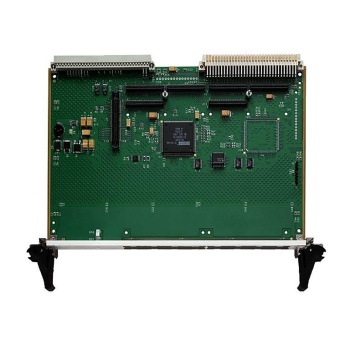

The PMCspan board allows users to customize their exact I/O requirements with Penguin Edge VME based CPU modules designed around the PowerPlus™ Architecture.

When coupled with a Penguin Edge processor module, the PMCspan provides up to six PMCs, more expansion capability than any other VMEbus processor module. Each PMCspan supports either two single-wide or one double-wide PCI Mezzanine Card (PMC). By stacking PMCspans, a total of four additional single-wide PMCs can be added to SMART EC's compute engines-either today or as future application growth demands.

The PMCspan is a standard 6U single-slot VMEbus module that links to its host board via a PCI expansion connector. It supports both front panel and P2 I/O access for customer supplied PMCs.
