WINSYSTEMS ISM-DC-AT512-P

WINSYSTEMS ISM-DC-AT512-P
WINSYSTEMS ISM-DC-AT512-PWINSYSTEMS ISM-DC-AT512-PWINSYSTEMS ISM-DC-AT512-P
Contact us for more information

Features

  • Wide input range: 10V to 50 VDC
  • Voltage output: +5V @ 20A and +12V @ 3A
  • -40 to +85°C operation
  • No fan or heat sink required
  • No minimum load required for regulation
  • Outputs with short circuit, overload and overvoltage protection
  • Power-on LEDs provide visual status of power
  • Screw terminals for accessory power connection
  • High efficiency design
  • Fast transient response

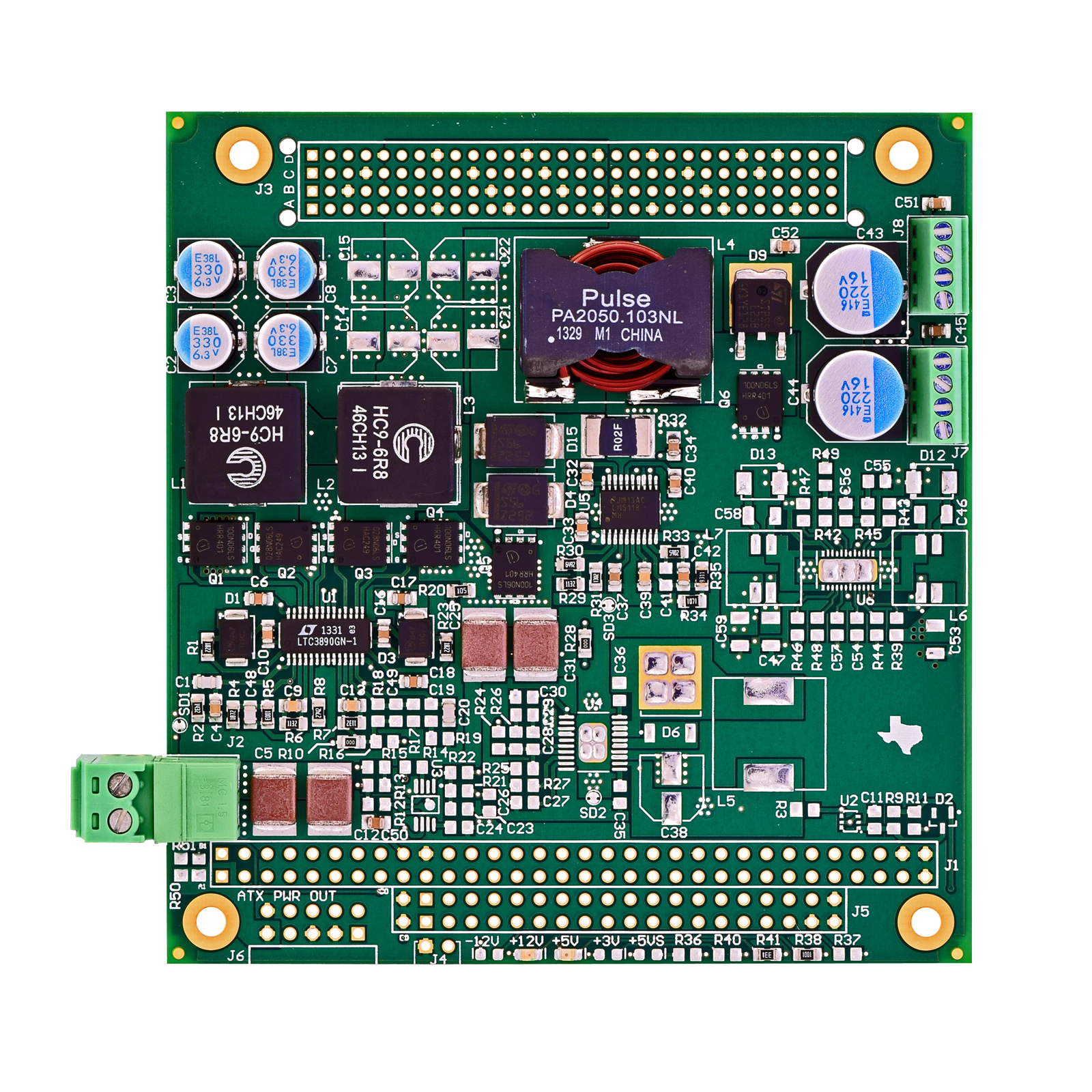

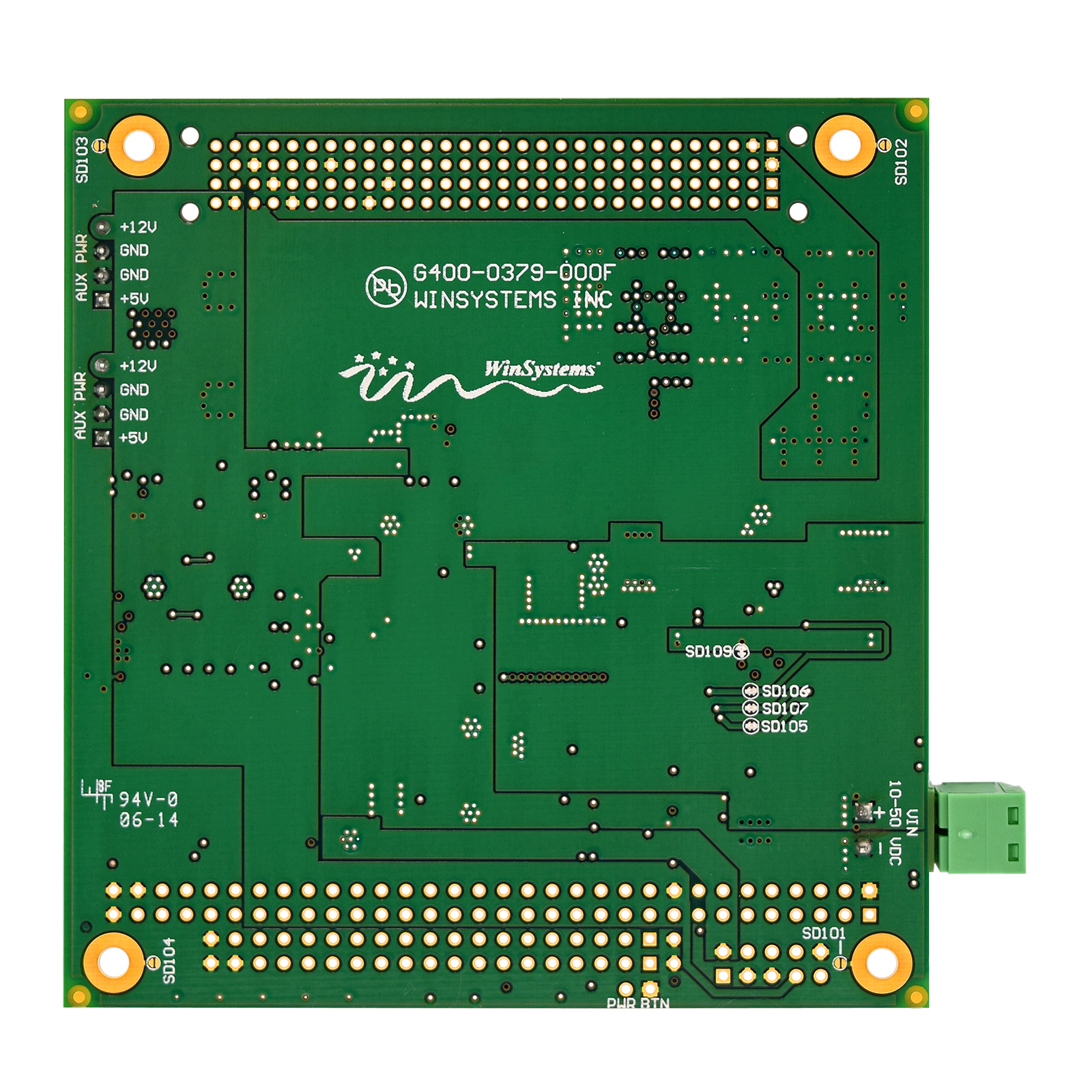

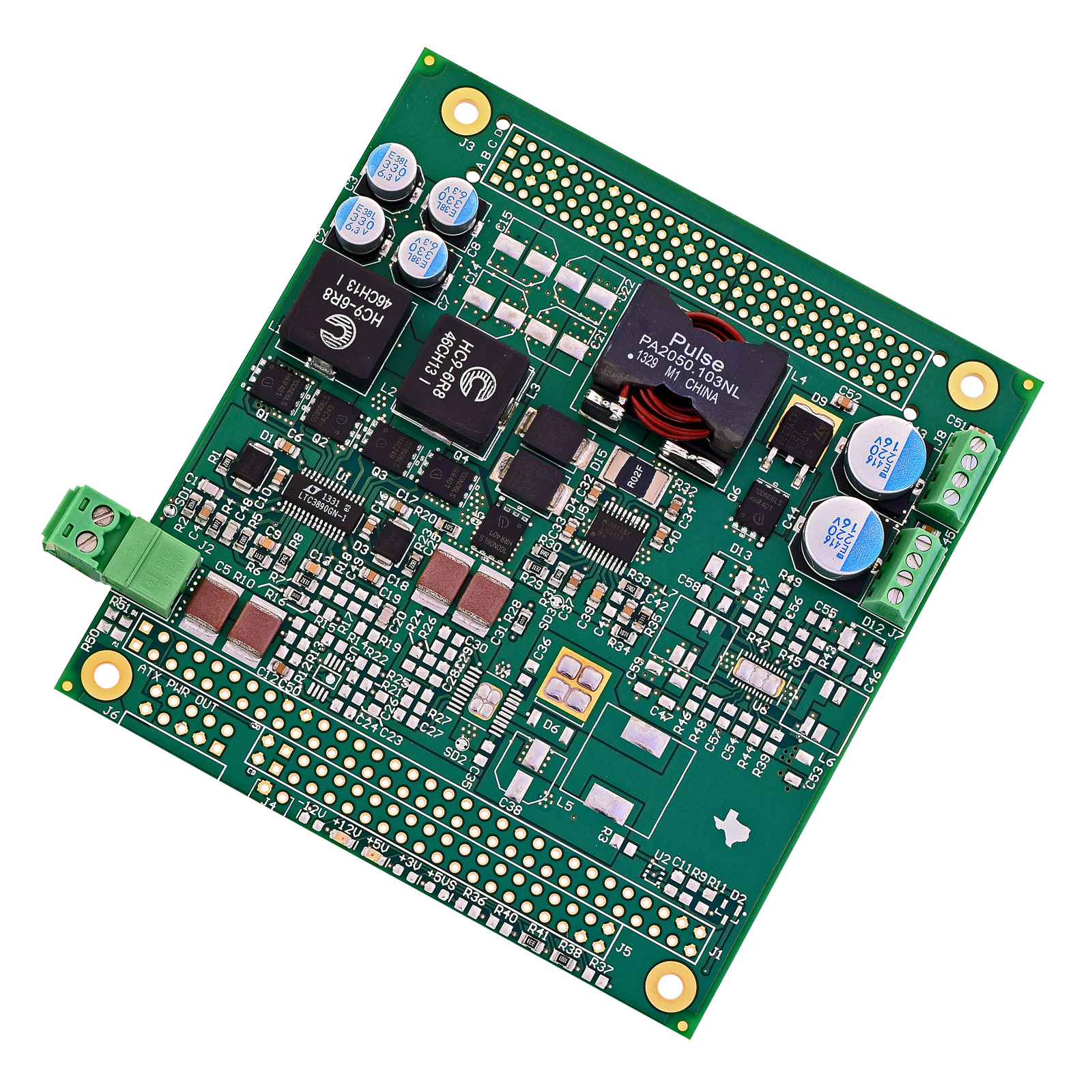

The ISM-DC-AT512-P is a dual output, DC/DC power supply designed for small form factor embedded systems. It features a very wide voltage input range from 10 to 50 volts DC. This allows the unit to operate with 12, 24, or 48 volt battery or distributed DC power systems. It opens up a wide array of applications including transportation, Mil/COTS, security, solar-powered, and telecommunications.

Datasheet ISM-DC-AT512-P
