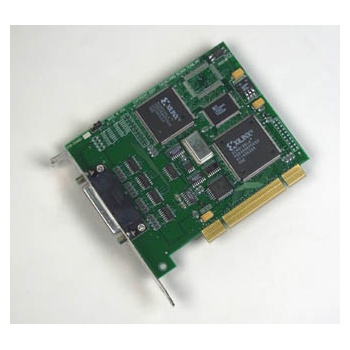

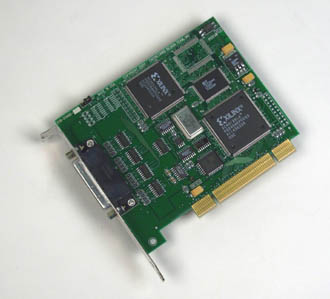

EDT PCI DV44

EDT PCI DV44
Contact us for more information

Features
  • Single PCI local bus slot
  • Interfaces DVC Co. digital cameras and other AIA Monochrome and color digital cameras to PCI Local Bus Computers
  • 3-row 44-pin D connector optimal for 44-pin cameras and devices
  • Supports 8 through 16 bit resolution
  • Direct memory access to host memory -- camera resolution independent
  • PCI Local Bus data rates up to maximum supported by host
  • 33 Mhz, 32-bit PCI board
  • Supports AIA serial command interface over RS-422 and 232 serial lines
  • Device drivers & SDK for Sun Solaris, Linux, Windows

Description
The PCI DV44 provides high-resolution image capture for DVC Co. cameras and other EIA-644 (LVDS) single and dual channel cameras. Spatial and depth resolution and the number of buffers are limited only by the host memory. Images can be captured and displayed in real-time. The PCI DV44 is similar to the PCI DVK, the primary difference being the connector.

Cameras Supported
The PCI DV44's 44-pin connector makes it the best choice for cameras with standard 44-pin cables/connectors, such as the DVC 1300 & 1400 series cameras. Most AIA monochrome and color, Category 1, extended single and dual channel digital cameras are also supportable, but may require a custom cable. In general, the PCI DV or PCI DVa, (80-pin connector) or PCI DVK (68-pin SCSI 2 connector) would be preferred for cameras that don't use the 44-pin connector.

Software
The PCI DV44 comes with a configurable device driver, a C language interface library, example programs, and an X-Windows or MS Windows based camera control and image capture and display program (click here for screen shots). The device driver provides direct virtual memory access for the host computer, including features for controlling the device and determining its status. Example programs demonstrate this capability using the functions provided in the library. A number of third party products are available as well to provide turn-key solutions to image acquisition needs.

Applications
  • Machine vision
  • Manufacturing/Inspection
  • Computer microscopy
  • Astronomy
  • Aerial mapping
  • Image archiving
  • Image processing and analysis
  • Medical imaging
  • Multimedia
  • Security

Specifications
Video Interface
A programmable gate array is configured for a specific camera when the driver is loaded. Thirty-two LVDS signals are configured as inputs or outputs, as required by the camera. Outputs can also be configured as single-ended for TTL camera control lines. The PCI DV44 does not include frame buffer memory. Video data is stored in host memory as required by the camera and application.

Software
Device drivers for Sun Solaris™, Linux and Windows

PCI Bus Compliance
PCI 2.1s
33Mhz
32 bits

Cables
The PCI DV44 is designed to be used with 44-pin to 44-pin twisted pair cables, standard for DVC Company cameras. Cables are available from EDT or your camera manufacturer. For connector pinouts, see the PCI DV Addenda: AIA Digital Camera Interface for AIA Generic

Physical
Single PCI Local Bus slot
Dimensions: 3.3" x 5.87" x 0.5"
Weight: 3.8 oz.
AMP DB44 connector (manufactured by AMP Inc., 800-522-6752)

Power
5V DC, 1 A

Environmental
Temperature:
Operating: 10° to 40° C
Nonoperating: -20° to 60° C
Heat Output: 5 W

Humidity:
Operating: 20% to 80% noncondensing @ 40° C
Nonoperating: 95% noncondensing @ 40° C

Noise
0 DB

MTBF
150,000 hours

System Requirements
Note: This outlines the minimum recommended requirements for a typical application that uses EDT interface boards. In practice, few situations are 'typical'. We urge you to read this for a broader discussion on making sure your system is adequate for the task of accepting high speed DMA data with an EDT interface board.

Intel
Processor: Pentium III or IV/400Mhz+, or AMD Athalon
Memory: 512 Mb minimum
Cache memory: 256 Kb.
PCI Bus: Adequate bandwidth for camera in use (see bandwidth requirements).
Video: AGP display (NOTE: Using PCI video boards on the same bus as an EDT I/O board is NOT recommended)
Device drivers for Solaris, Linux, and Windows are included with purchase of the board. Device drivers for VxWorks and MacOS are also available. Patches: Windows NT service pack 6, Windows 2000 service pack 1

SUN
Platform: Ultra 30, 60, Blade 100, Blade 1000, Enterprise
Processor: 248MHz or faster
Memory: 128Mb minimum
Cache memory: 1Mb minimum
Video: Creator3D, Elite3d M6, Expert3d, PGX64
PCI Bus: 288 bits (dual)
OS: Solaris™ 2.6 - 10
