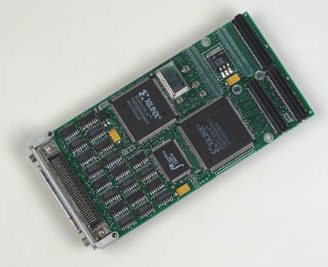

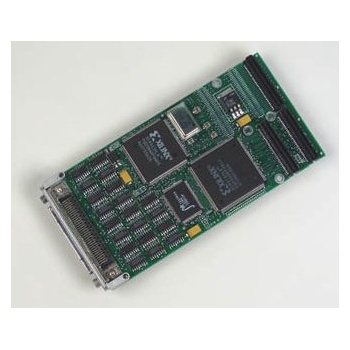

Digital Camera Interface for PMC ComputersFeaturesSingle PMC slot
Interfaces RS422 or LVDS digital CCD cameras to PMC/PCI computers
68-pin AMP connector
Supports up to 24 bits of camera data
Direct memory access to host memory -- camera resolution independent
PMC/PCI 33 MHz 32 bit Local Bus data rates up to 100 MBytes/sec as supported by host
Supports AIA serial command interface over RS422 or LVDS signal pairs, cable adaptor for RS232 signal levels available
Device drivers for Sun Solaris™, Linux, and Windows are included with the board. Drivers for VxWorks and MacOS are available on request.
PCI Bus (PCI DVK) version also available
DescriptionThe PMC DVK provides high-resolution image capture for AIA Monochrome, Category 1, extended single and dual channel digital cameras. Spatial and depth resolution and the number of buffers are limited only by the host memory. Images can be captured and displayed in real-time. The PMC DVK is similar to the
PCI DVK, except that it fits the PMC form factor.
Applications
- Machine vision
- Manufacturing/Inspection
- Computer microscopy
- Astronomy
- Aerial mapping
- Image archiving
- Image processing and analysis
- Medical imaging
- Multimedia
- Security
Cameras SupportedThe PMC DVK's 68-pin connector makes it ideal for cameras with standard 68-pin SCSI II type cables/connectors, such as the Redlake MEGAPLUS i and ES models. Cables are also available for the Texas Instruments TMC-1001PF, Raytheon Infrared Radiance 1 and HSX, Cincinnati Electronics Irris 256 ST, Dalsa 4M4, 1M30P and BT25, and most Hamamatsu cameras. Most AIA monochrome and color, Category 1, extended single and dual channel digital cameras are also supportable, but may require a custom cable. See Cables (below) for more information.
SoftwareThe PMC DVK comes with a configurable device driver, a C language interface library, example programs, and an X-Windows or MS Windows based camera control and image capture and display program (click here for screen shots). The device driver provides direct virtual memory access for the host computer, including features for controlling the device and determining its status. Example programs demonstrate this capability using the functions provided in the library. A number of Third Party products are available as well to provide turn-key solutions to image acquisition needs.
SpecificationsVideo InterfaceA programmable gate array is configured for a specific camera when the driver is loaded. Thirty-two RS422 or LVDS signals are configured as inputs or outputs, as required by the camera. Outputs can also be configured as single-ended for TTL camera control lines. The PMC DVK does not include frame buffer memory. Video data is stored in host memory as required by the camera and application.
SoftwareDevice drivers for Sun Solaris™, Linux, Windows included. Drivers for VxWorks and MacOS avalable on request.
PMC ComplianceP1386.1
PCI Bus Compliance
PCI 2.2
CablesThe PMC DVK can be used with Redlake MASD's (formerly Kodak) 68-pin to 68-pin RS422 AIA cable, part #03000172-001. Be sure to specify this cable when ordering the camera from Redlake. Redlake's RS-232 breakout cable (part #03000173-001) can be used, but is not recommended since it diverts the RS-232 signals to the COM port, and serial commands needed for set-up and control will need to be done manually through a terminal program or other COM port based tools.
Most other category 1, extended single and dual channel digital cameras are also supportable. Contact EDT for information on what cables are available for other cameras.
PhysicalSingle PMC slot
Dimensions: 74mm x 152mm
Weight: 2.8 oz.
AMP high density 68 pin connector*
*Manufactured by AMP Inc. 1-800-522-6752
Power3V DC, 1 A
EnvironmentalTemperature
Operating: 10° to 40° C (Optionally -40° to +85° C)
Nonoperating: -20° to 60° C
Heat Output: 5 W
HumidityOperating: 20% to 80% noncondensing @ 40° C
Nonoperating: 95% noncondensing @ 40° C
Noise0 DB
MTBF
150,000 hours
System RequirementsNote: This outlines the minimum recommended requirements for a typical application that uses EDT interface boards. In practice, few situations are 'typical'. We urge you to read this for a broader discussion on making sure your system is adequate for the task of accepting high speed DMA data with an EDT interface board.
Intel
Processor: Pentium III or IV/400Mhz+, or AMD Athalon
Memory: 512 Mb minimum
Cache memory: 256 Kb.
PCI Bus: Adequate bandwidth for camera in use. click here for detailed information on bandwidth requirements
Video: AGP Display (IMPORTANT: Use of PCI Video boards on the same bus as an EDT I/O board is NOT recommended)
OS: Solaris™, Linux, Windows, VxWorks (selected platforms), MacOS
Patches: Windows NT service pack 6, Windows 2000 service pack 1
SUN
Platform: Ultra 30, 60, Blade 100, Blade 1000, Enterprise
Processor: 248MHz or faster
Memory: 128Mb minimum
Cache memory: 1Mb minimum
Video: Creator3D, Elite3d M6, Expert3d, PGX64
PCI Bus: 288 bits (dual)
OS: Solaris™ 2.6 - 10
SupportEDT provides several levels of customer support, from phone consultations to custom design of hardware or software at hourly rates. Technical support is also provided though the Technical Information section of this web site.
