Features
- Outstanding EMC performance
- Excellent heat dissipation
- Support the installation of a small 1U power supply and a redundant power supply
- Compatible with multiple motherboards
- It can be equipped with Standard ATX MATX ITX and EPE series industrial motherboards
- 2U standard rackmount

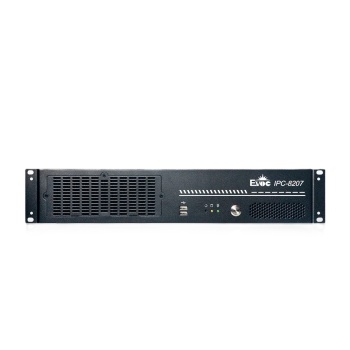

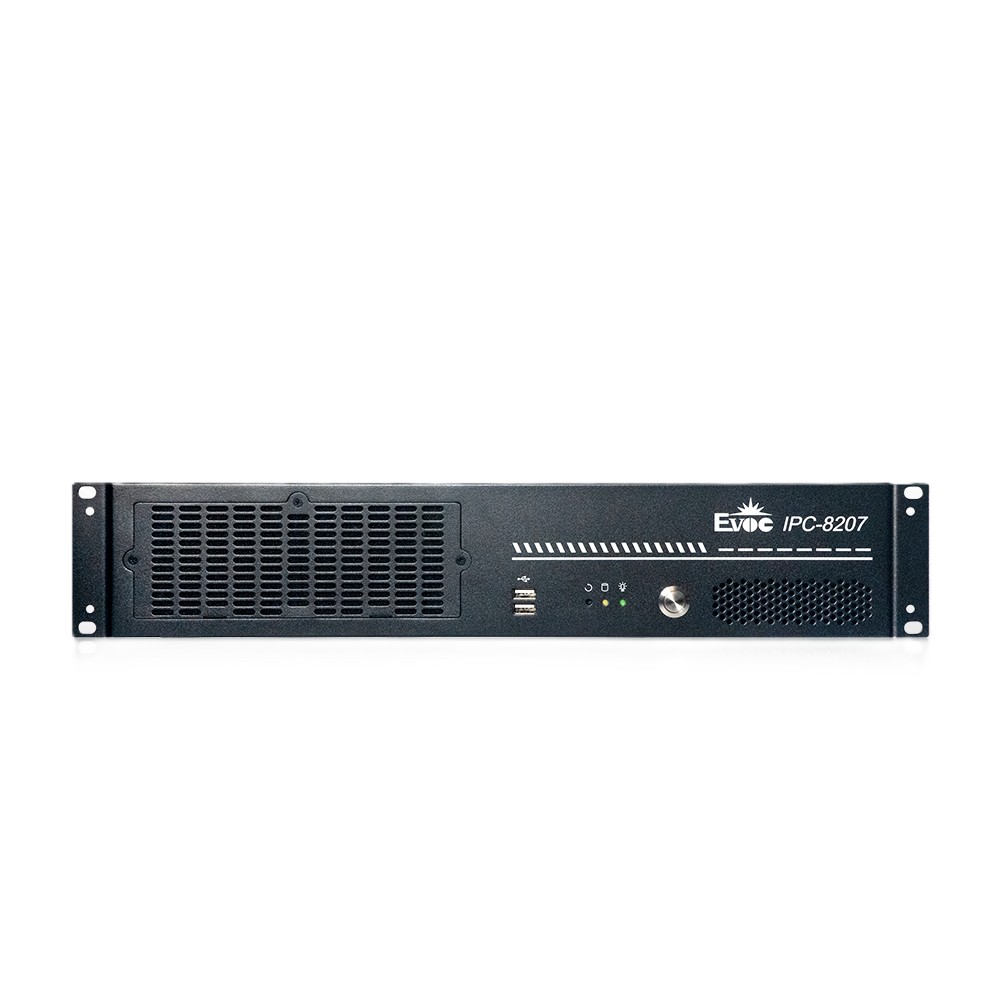

- The front panel features two USB ports, a power switch, status indicator lights, and a reset button

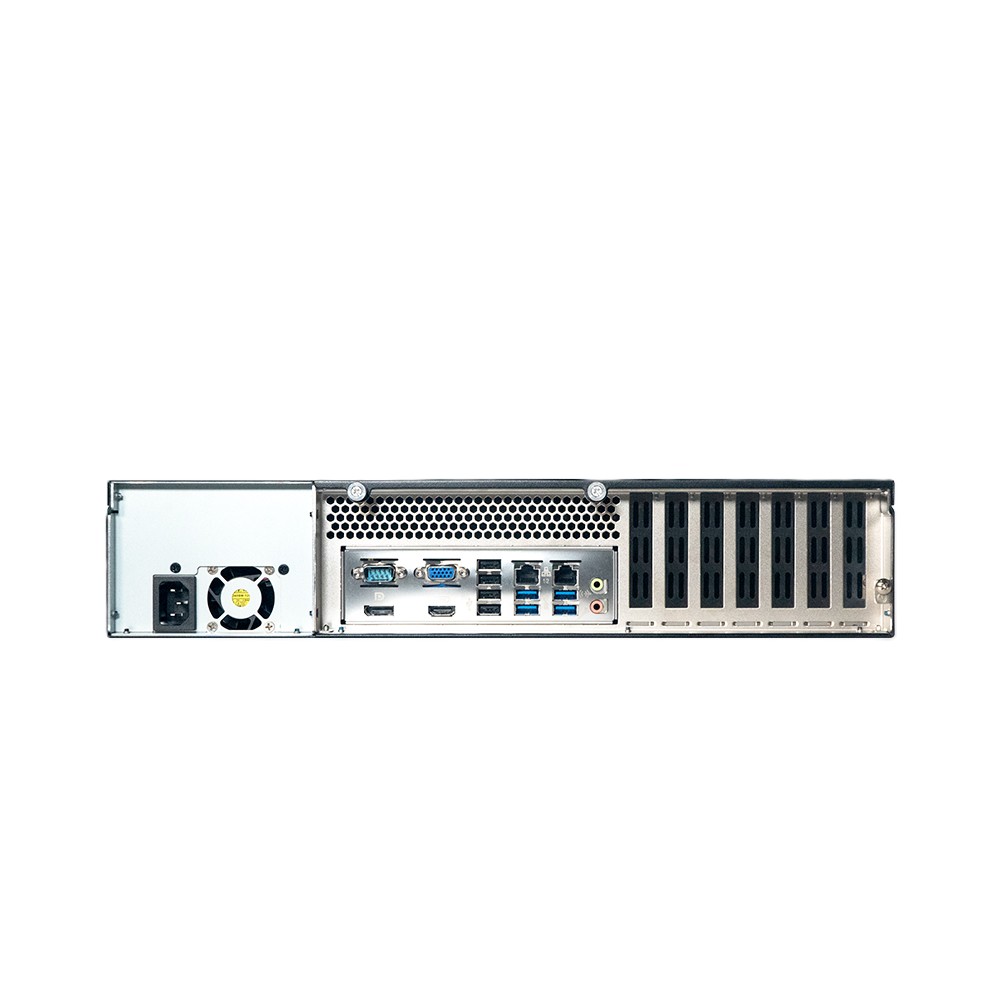

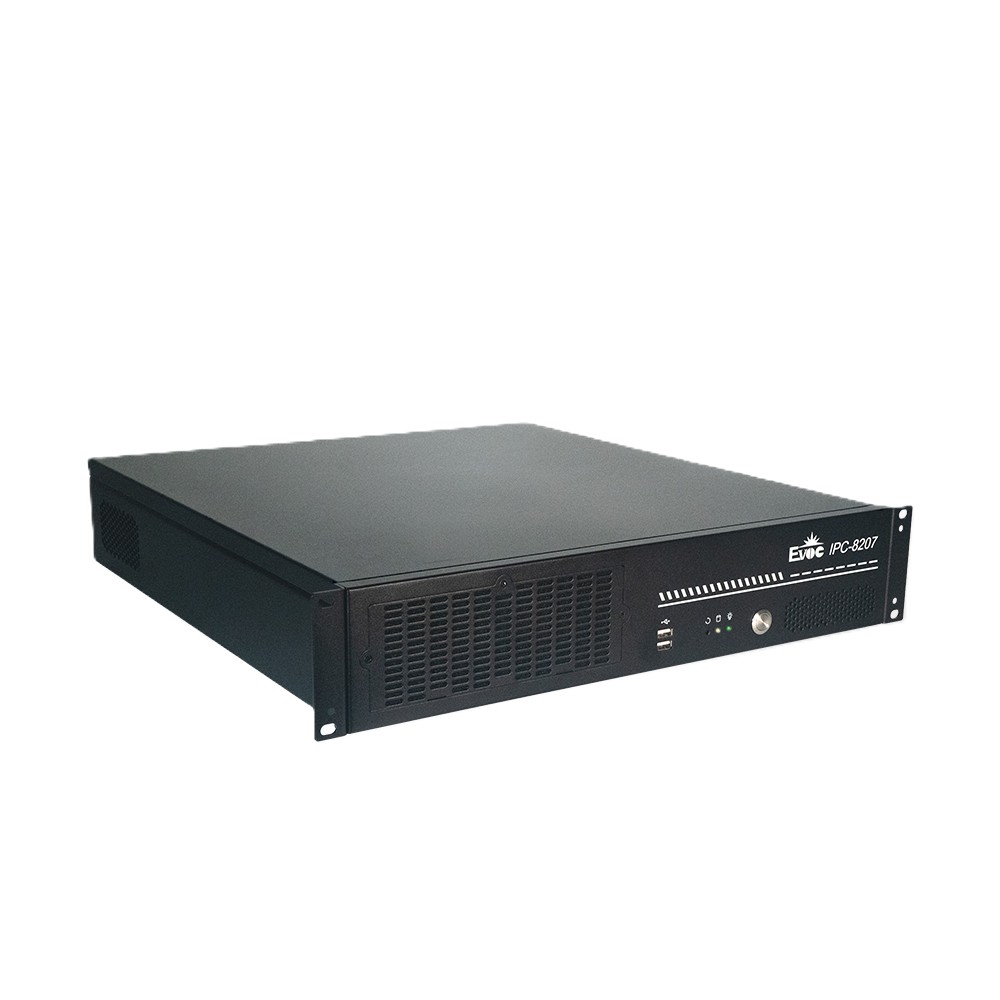

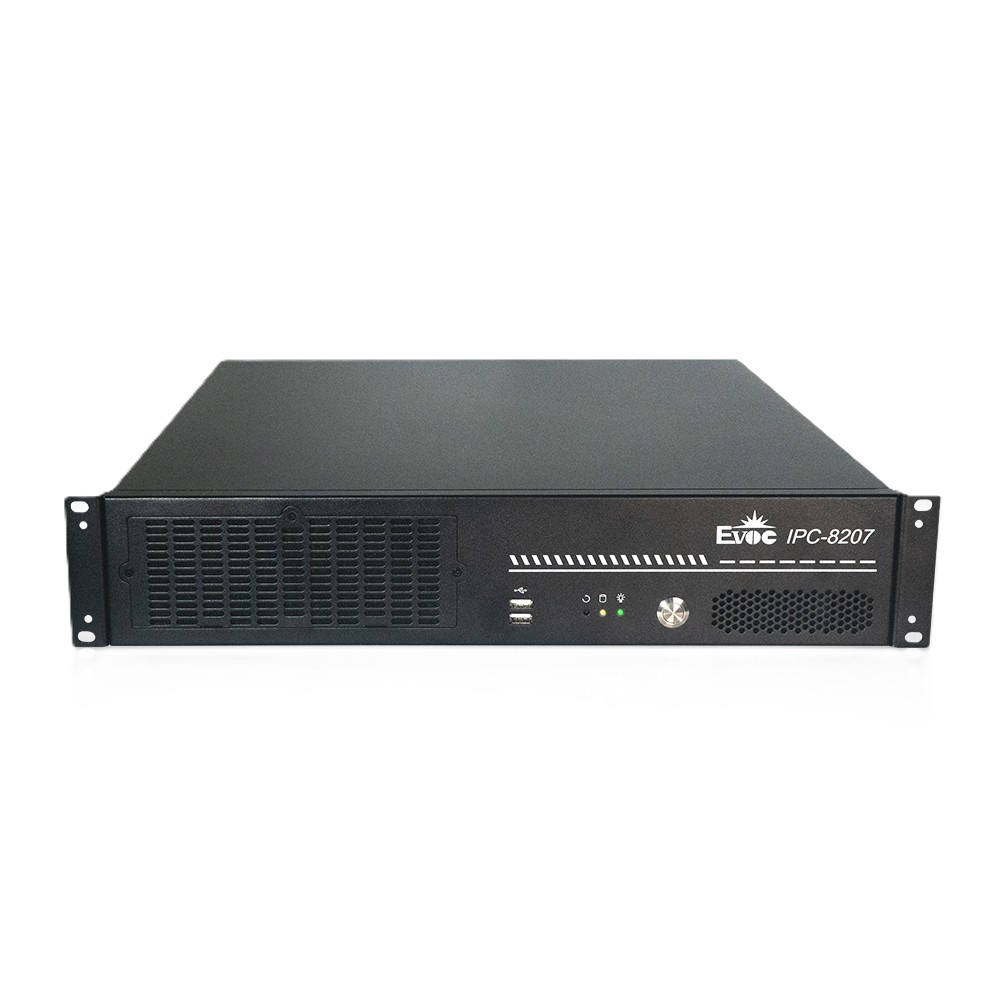

IPC-8207 is a 2U 19-inch standard rackmount chassis, compatible with EPE, EC0, EC9, EC7, and other types of full-length cards and industrial motherboards, compatible with a small 1U power supply, redundant power supply installation, front panel with 2xUSB ports, power switch, status indicator, and reset button. The front removable dust filter is easy to replace. There is an air inlet on the front panel, an air outlet on the rear panel, which has an excellent heat dissipation performance. It can be widely used in industrial control, industrial automation, intelligent transport, video surveillance, and other fields.
Product Specifications
| Item | Description |
|---|
| Compatible Motherboard |
Can be installed with standard ATX, MATX, ITX, and EPE series industrial motherboards
|
| Storage |
Standard configuration: 1 x 3.5" hard disk bay, 1 x 2.5" hard disk bay
IPC-8207-01/03 chassis: optional support up to 3 x 3.5" hard disk bay, 1 x 2.5" hard disk bay
|
| IO Ports |
2 x USB 2.0, power switch, reset switch, power and hard disk indicator lights
|
| Expansion Card Slot |
IPC-8207-01: Equipped with EC0 series motherboard, supports up to 7 vertical half-height expansion card slots
IPC-8207-02: Equipped with EPE series motherboard, supports EPE backplane installation, supports horizontal full-height half-length expansion cards: PCI(3x)/PCIE(1x) expansion slots
IPC-8207-03: Equipped with EC0 series motherboard, supports up to 2 horizontal full-height expansion card slots by installing a riser card, depending on the spec of the motherboard and riser card.
Note: When using the IPC-8207-03 chassis with a riser card, please note:
① When you need to expand 2xPCIE slots, select the EB-X16-200G riser card, which can lead out 2 x PCIE3.0 x8 signals. This riser card can only be used with the EC0-1823-05 motherboard, and cannot be used with other EC0 series standard motherboards.
② When you need to expand 1 x PCIE slot, select the EB-X16-100H riser card, which can lead out 1 x PCIE3.0x16 slot
③ This chassis cannot be used with the EC0-1826 motherboard, because of the PCIEx16 slot structure layout on the motherboard, the expansion slot cannot be extended.
|
| Power Supply |
1U FLEX power supply or redundant power supply |
| Working Temperature |
0℃ ～ +40℃ (with HDD or GPU)
0℃ ～ +50℃ (with SSD) |
| Storage Temperature |
-40℃ ～ +80℃ |
| Constant Damp heat |
(40)℃ (95) % RH non-condensing |
| Dimensions |
482.6mm (W) x 88mm (H) x 475mm (D) |
