| System |
| Processor: |
Intel® LGA775 CoreTM 2 Duo processor, FSB800/1066MHz; |
| Chipset: |
Intel® 945G + ICH7; |
| Memory: |
Supports 2 x 240-pin DIMMs, dual-channel, up to 4GB,optional DDR2 533/667MHz; |
| Hardware Monitor: |
Monitors system status, voltage, temperature and fan speed; |
| Watchdog Timer: |
1~255 sec./min. timer system reset or interrupt, setup by software; |
| Expansion Interface: |
3 x PCI slot, 1 x PCI-Express x1 slot; |
|
| Storage |
| IDE: |
1 x 40-pin IDE; |
| Serial ATA: |
4 x Serial ATA interface; |
| Floppy: |
1 x FDD; |
| CF: |
1 x CF card; |
|
| I/O Interface |
| USB: |
8 x USB2.0 port; |
| Serial Port: |
9 x RS-232, 1 x RS-232/422/485; |
| Parallel Port: |
1 x LPT; |
| Audio: |
HD Audio controller ALC888, available interfaces of Speaker-out, Line-in and Mic-in; |
| Keyboard/Mouse: |
1 x PS/2; |
|
| Display |
| Chipset: |
Intel® 945G integrated graphics controller; |
| Memory: |
256MB shared memory; |
| Resolution: |
VGA mode up to 2048 x 1536@75Hz; |
| Dual Display: |
VGA + VGA; |
|
| Ethernet |
| Chipset: |
1 x RTL8111C; |
| Speed: |
10/100/1000Mbps; |
| Connector: |
1 x RJ45; |
|
| Mechanical and Environmental |
| Dimensions: |
243.84mm x 243.84mm; |
| Operating Temperature: |
-10℃ ~50℃; |
| Storage Temperature: |
-20℃ ~60℃; |
| Operating Humidity: |
5%-90%, non-condensing; |
|
| Power |
| Power Supply: |
Supports ATX power supply; |
|
| Operating System |
| Windows OS: |
Windows 2000/ Windows XP; |
| Embedded OS: |
Linux/XP Embedded/WinCE; |
|

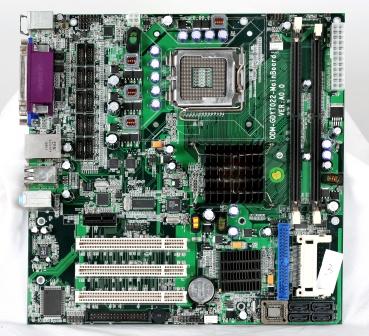

In a continues effort to provide their customerbase with the best solutions, EVOC Intelligent Technology Co. Ltd released the EC9-1815VDNA PCIe Embedded ATX motherboard. The board features the Intel® LGA775 Core™ 2 Duo processor and does have the following specifications:
