A new Motherboard Specificaly Tailored for Applications in Railway, Metro and Security

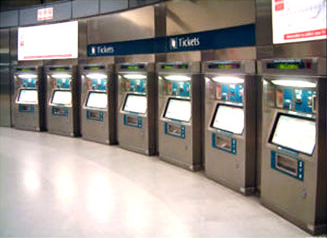

The EC5-1717CLDNA(D) from Evoc Intelligent Technology is a main control motherboard aimed at AGM device of metro AFC system. It is a fanless low-power design, and is designed for AGMs (automatic gate machines) to deal with tickets, cash, data communication, status surveillance, etc. The motherboard adopts Intel® 910GMLE + ICH6M chipset, supporting Celeron® M 1.0GHz or Pentium® M 1.4 GHz onboard CPUs. There are two configurations for onboard memory: onboard memory of 512MB DDR2 or 1GB DDR2, and one SODIMM slot, supporting maximum memory up to 2GB. The product also provides dual-display of VGA and LVDS, CF card and SATA port, as well as PC/104 bus expansion It can be widely used in automatic ticket vending machines, ticket checking machines, information terminals, small high-end POS terminals, IC card identification terminals, off-line IC card reader/writer systems, and various other embedded applications.
.
Specifications
| Processor | Onboard Intel® Celeron® M 1GHz 400MHz FSB CPU or Optional Intel® Pentium® M 1.4GHz 400MHz FSB CPU processor |
|
| Chipset | Intel® 910GMLE+ ICH6-M chipset | |
| Memory | Onboard 512MB (scalable to 1GB memory) and one SODIMM slot, supporting up to 2GB | |
| NVRAM | Onboard 4MB NVRAM memory (optional), available address space is F00000-F7FFFF | |
| Onboard video | Integrates Intel GMA900 graphics media accelerator, supporting VGA and LVDS display | |
| Onboard audio | Provides AC' 97 Codec | |
| Hard Drive Controller | 1 x IDE port, 2 x SATA port | |
| I/O | 10 x COM port (Two support RS-232, RS-422 and RS-485 options), 1 x parallel port, 8 x USB2.0 high-speed interface, 1 x PS/2 keyboard and mouse port, 1 x 16-bit digital I/O (8I/8O), supporting +5V/+12V options | |
| SSD | CompactFlash | |
| Watchdog | Software programmable supports 1-255 sec./min. System reset/interrupt | |
| Expension bus | PC/104 | |
| Power Supply | +12V DC | |
| Dimensions | 203mm x 146mm | |
| Operating Temperature | -20 °C ~ +70 °C | |
| Relative Humidity | 5%~95%, non-condensing |
