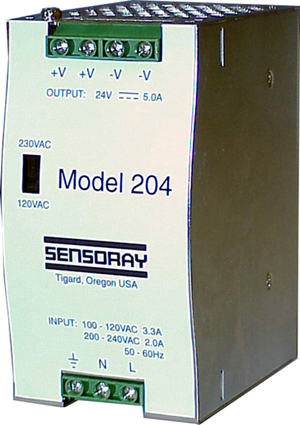

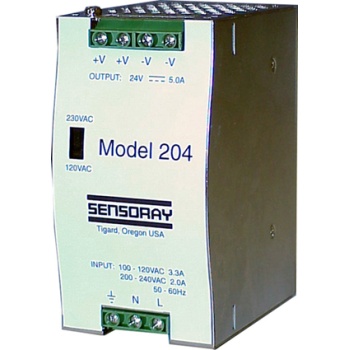

SENSORAY Model 204 24V 120 Watt power supply
Features
- 24 VDC, 5A output
- 88 to 264 VAC input in two ranges
- Low cost
- Works with Sensoray's 2600 Ethernet products
- Din rail mountable
This universal input power supply is recommended for use with Sensoray's Ethernet appliances such as the 2600 series. It supplies regulated 24-volt DC at up to 5 amps from a wide range of AC line voltages.

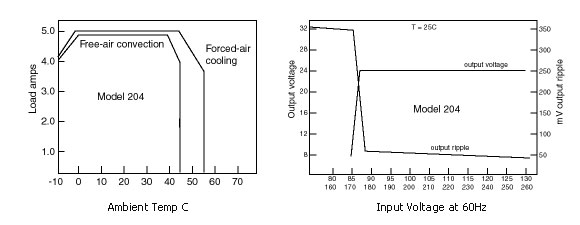

Performance graphs
Specifications
| Input Power | |
|---|---|
| Input voltage range | 88 to 132 VAC (Range 1) 76 to 264 VAC (Range 2) |
| Frequency range | 47 to 440 Hz |
| Inrush current typical | 30 A (115 VAC) 60 A (230 VAC) |
| Input-output isolation | 3000 VAC Input-case 1.5 kVAC |
| Output Power | |
| Typical load regulation | ±1% |
| DC voltage adjust | ±10%, -5% of FS |
| Temperature coefficient | ±0.03% per °C |
| Typical ripple/noise | 120 mV Pk-Pk |
| Over-voltage protection | 130 to 150% |
| Typical setup, rise, hold-up time | 1 s, 30 mS, 15 mS |
| Typical efficiency | 79% at full load |
| Switching frequency | 83 kHz |
| Environmental | |
| Operating temperature range | -10 to 55 °C |
| Storage temperature | -20 to 85 °C |
