| System |
| CPU |
Intel® Core i5-4400E 2.7GHz,BGA, Turbo Boost 3.3GHz |
| Chipset |
Mobile Intel® QM87 Express Chipset |
| Memory |
Onboard 8G DDR3 ECC SDRAM 1333MHz memory |
| Compliant specifications |
PICMG 2.0 R3.0 Compact PCI Specification |
| PICMG 2.1 R2.0 Compact PCI Hot Swap Specification |
| PICMG 2.16 R1.0 Compact PCI Packet Switching Backplane Specification |
| Storage |
| Storage |
Front panel: onboard 16GB SSD, supporting 2.5" SATA, CF card (CPC-1817B-CF version) |
| Rear IO board: 2 x SATA, supporting RAID 0, 1 |
| I/O port |
| I/O por |

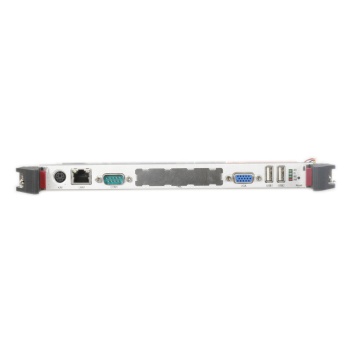

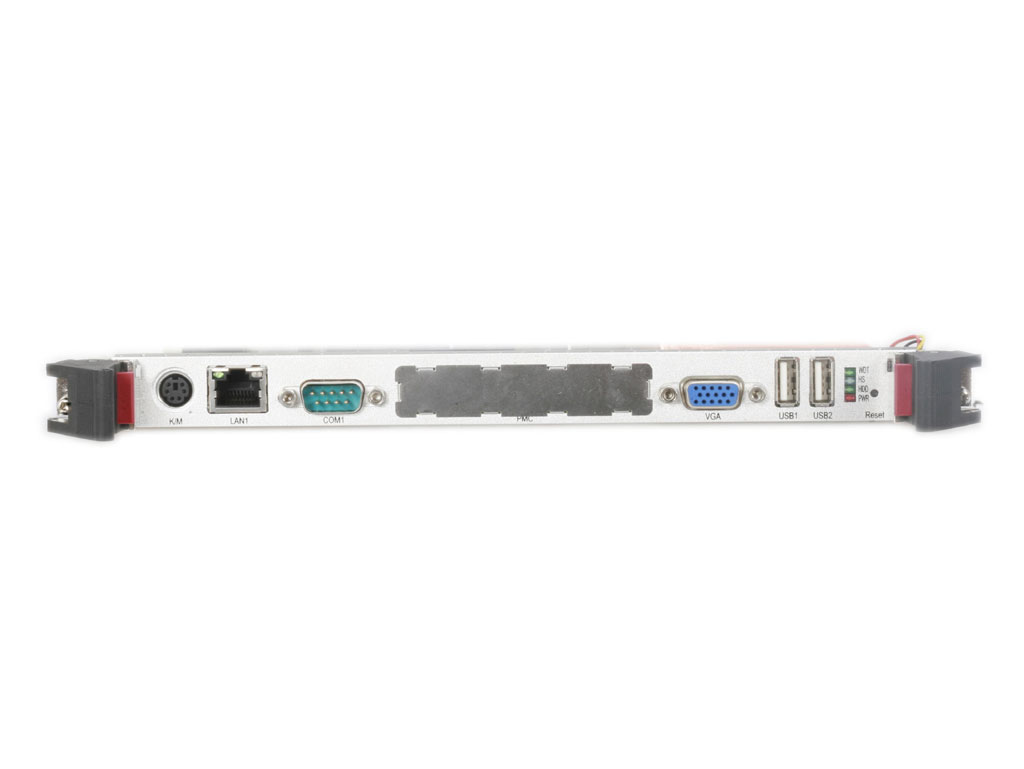

Front panel: VGA, 2 x LAN, 2 x USB3.0, COM (RJ45), Y-type PS/2 |
| CPC-RP807: 2 x USB2.0, DB9 type RS232,422,485 switchable, Y-type PS/2, DVI-D, DVI-I, GbE x2, MIC-IN/LIN-IN/LINE-OUT |
| Audio: Signal brought out to the rear panel |
| LAN |
| LAN |
2 x 1000Mbps Ethernet port on the front panel |
| Rear IO board: 4 x independent 10/100/1000M Ethernet port to the rear IO board. |
| Among them, two redundant 1000Mbps Ethernet ports provide PICMG2.16 function to the rear panel. |
| Display port |
| Display port |
The platform supports DVI-I+DVI-D dual display, VGA |
| Front panel VGA: 2048×1536@75Hz> |
| Rear panel: DVI-D, DVI-I, supporting dual-screen up/down, left/right extension display mode. The single screen supports 1920 x1200 |
| Other |
| Other |
1 x PMC, 1 x XMC |
| Operating systems |
| Operating systems |
Windows 7, Windows 8, VxWorks and Linux |
| Mechanical and Environmental |
| Dimensions |
4HP× 233mm×160mm (H×W×D) (6U board dimensions) |
| Shock |
30g, 11ms (working status) |
| 50g, 11ms (non-working status) |
