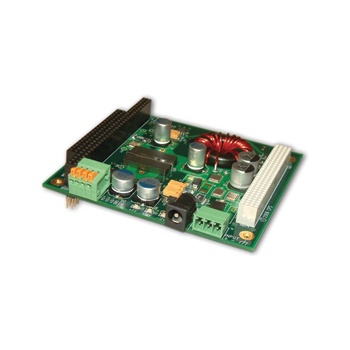

SENSORAY Model 209 PC/104+ stackable high-efficiency power supply
Features
- Input voltage of 12-24 VDC nominal (8-30V max)
- Outputs:+5 VDC at 5 A, +12 VDC at 0.5 A, -12 VDC at 0.5 A
- -25°C to 50°C operating range
- No active cooling needed
SENSORAY's Model 209 PC/104 Power Supply accepts any input voltage in the range 12-24 VDC and produces regulated outputs of +5 VDC at up to 5 A, +12 VDC at up to 0.5 A, and -12 VDC at up to 0.5 A. The unit has a -25 to 50 °C operating range.
Two different terminations are provided for input power: a 2 mm power jack and a terminal block. Also, two output terminations are provided for supplying regulated output power to external devices such as a cooling fan and RF amplifier 2400-500RF.
Specifications
| Input voltage | 12-24 VDC nominal (8-30V max) |
| Input current | 4.3 A at 9 V input | 1.3 A at 30 V input |
| Total output powert | 37W maximum with forced external cooling |
| Efficiency | > 90% overall input voltage range |
| Output voltages and currents | +5 VDC at 5 A maximum rating +12 VDC at 0.5 A maximum rating -12 VDC at 0.5 A maximum rating |
| Output accuracy | ±0.1 V for 5 V output ±0.24 V for +12 V output ±0.24 V for - 12 V output |
| Temperature range | -25°C to 50°C operating range |
| Output ripple | Pk - Pk 100 mV on 5 V | 100 mV on 12 V |
| Line regulation (full input voltage rating) | ±0.05 V for 5 V output ±0.12 V for +12 V output ±0.12 V for -12 V output |
| Load regulation (full load swing) | ±0.025 V for +5 V output, ±0.12 V for + 12 V output, ±0.12 V for -12 V output |
| Reverse input polarity protection | Unit will restart when correct input polarity is established. |
| Short circuit protection | Unit will turn off when a short circuit is detected. Power cycling the unit forces the power supply to start after a short circuit event. |
| Load damp protection | Unit is protected against load dump transients |
