Concurrent Technologies TR E8x/msd – 3U VPX Processor



  • 3U VPX Processor board
  • Up to 6-core Intel® Xeon® E-2200 processor
  • Enhanced security features as standard
  • Optional XMC or front panel I/O module
  • Optional solid-state disk module

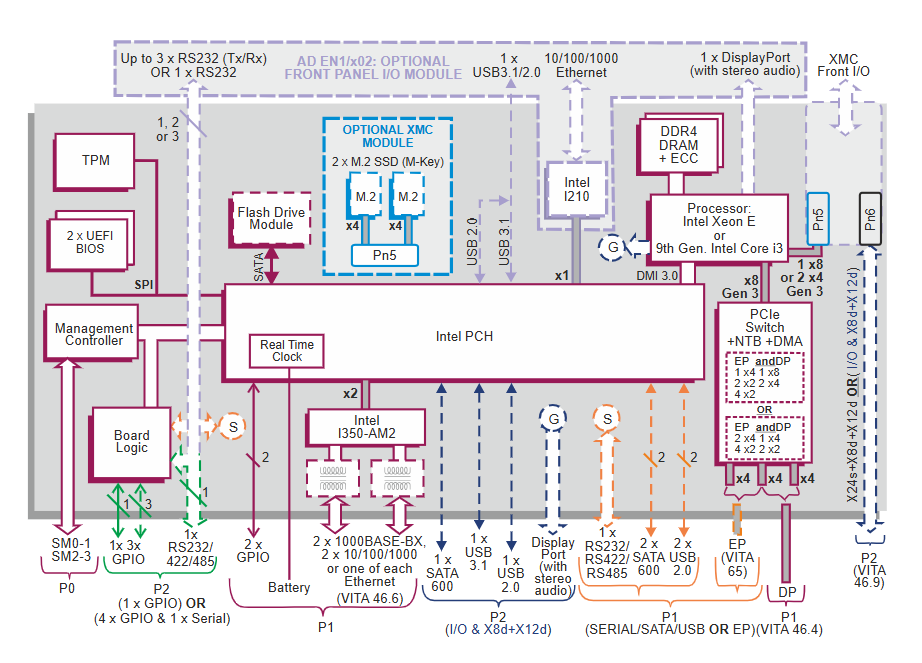

TR E8x/msd is a 3U VPX™ board based on the Intel® Xeon® processor E-2200 family, providing 6-core performance within the same Size, Weight, and Power (SWaP) envelope compared to the prior TR E5x/msd board. A range of standard I/O interfaces is provided with an XMC expansion slot to add application-specific I/O or an optional front panel module with DisplayPort, Ethernet, USB and serial connections. TR E8x/msd supports a wide range of backplane profiles based on a PCI Express® (PCIe®) data plane fabric and optional PCIe expansion plane for flexible multi-board configurations. It is compliant with the VITA 46.11 system management specification and is particularly suited for command, control, communicate and compute applications.

Datasheet TR E8x/msd

Feel free to request a quote
